Manual 275

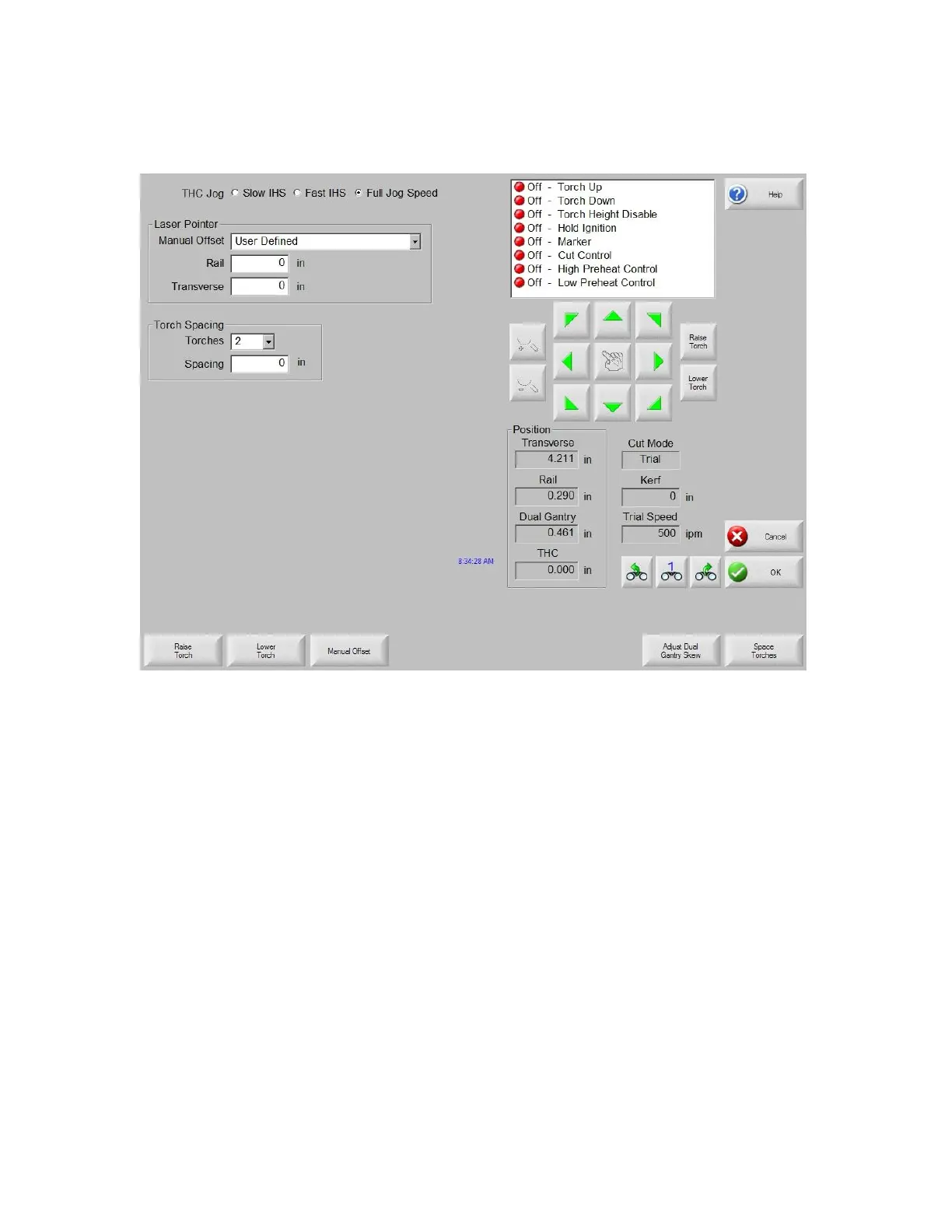

Manual Options
Raise Torch
Raises the cutting torch while the soft key is pressed or until the Torch Up sense input is activated.
Lower Torch
Lowers the cutting torch while the soft key is pressed or until the Torch Down sense input is activated.
If the Torch Down Output has been enabled to stay on during the cut in Plasma setups, pressing the
Lower Torch soft key will keep the torch in the down position until the Lower Torch soft key is
depressed a second time.
Manual Offset
Manual Offset is useful for cutting tables that have a laser alignment tool attached and allows you to
use your laser alignment tool for aligning a part to a plate. The offset will stay in place until it is turned
off from this screen or a part is cut in either Oxy-Fuel or Plasma cut mode.
The user may select the following offsets:
User Defined – Uses the selected X / Y Offset distance.
Laser pointer to Plasma 1 – Offset 10
Laser pointer to Plasma 2 – Offset 11
Laser pointer to Oxy Fuel – Offset 12
