Hypertherm MicroEdge - Transverse 2 Axis; Minimum Torch Spacing; Mirrored Marker Offsets

To Next Page

To Previous Page

Password Setups 344

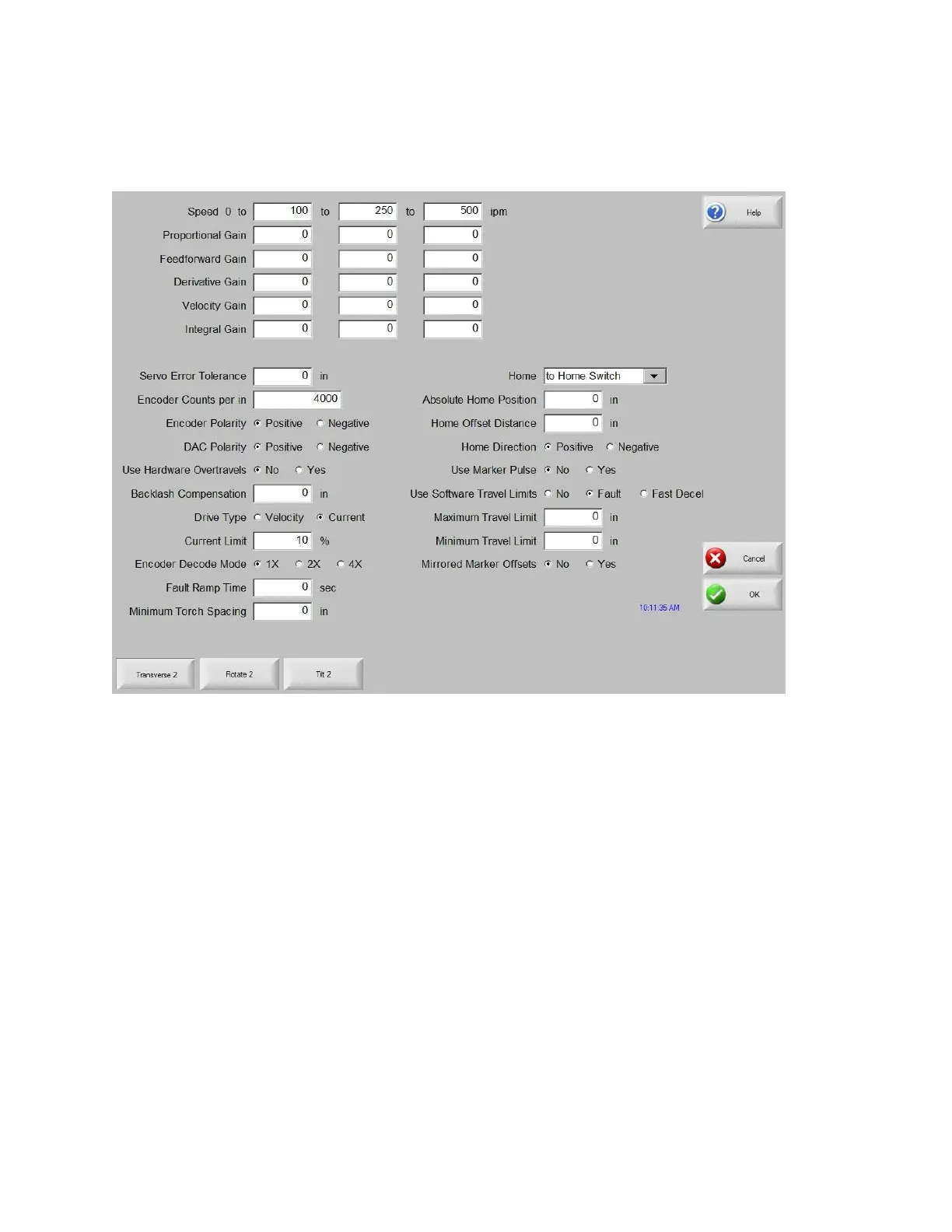

Transverse 2 Axis

Transverse 2 is only available when a second bevel head has been enabled.

Minimum Torch Spacing

This value sets a minimum distance allowed between Transverse 1 and Transverse 2 axes.

Mirrored Marker Offsets

This feature allows preset tool offsets to be performed as mirrored motion for the Transverse 2 axis.
