Automated Plasma Interface 448
Cut Chart

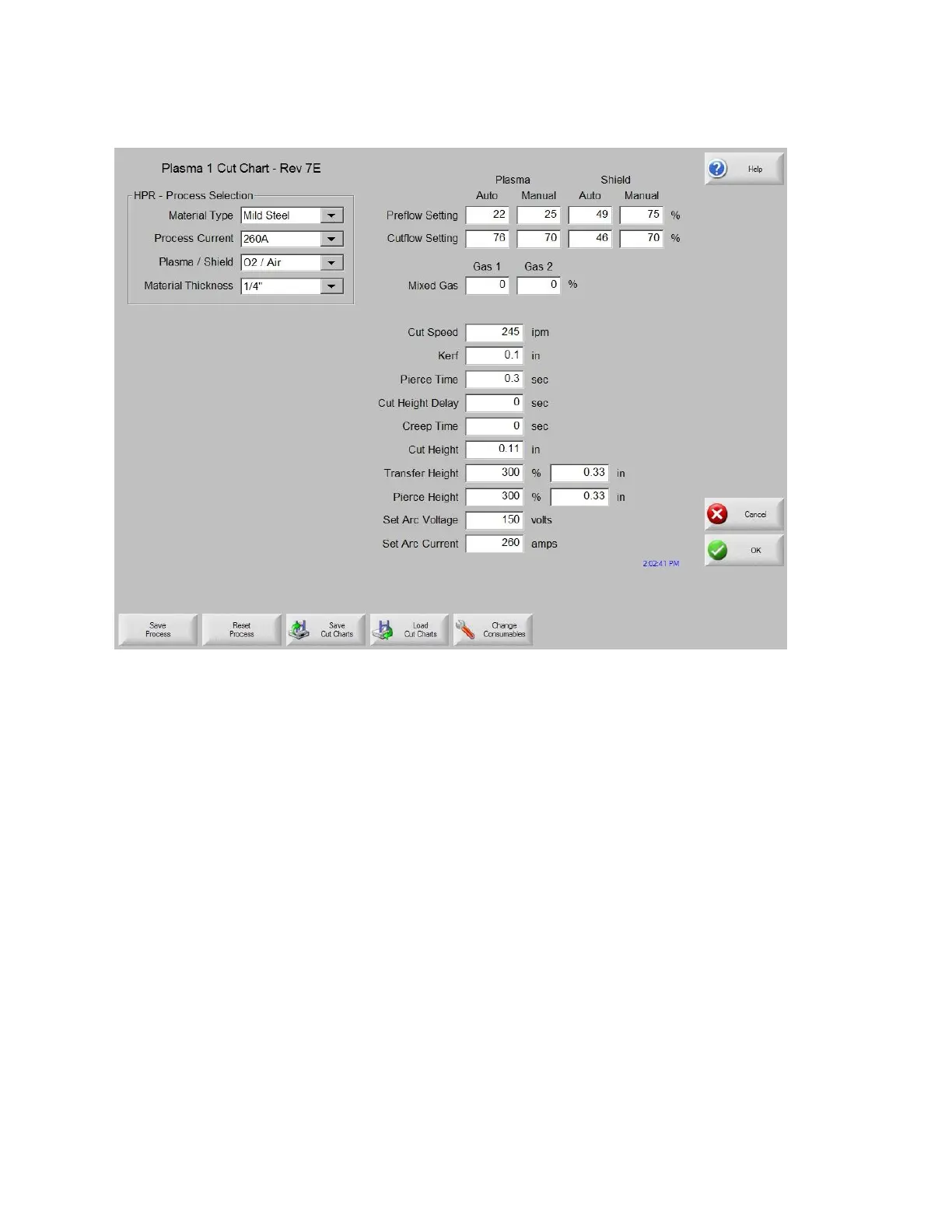

The Cut Chart Database (cut process parameters) transmitted to the power supply is based on the
following eight process variables.
Material Type
The Material Type, such as Mild Steel, Stainless Steel or Aluminum, may be selected.
Current Settings
The appropriate current setting for the material thickness and material type may be selected.
Plasma / Shield Gases
The appropriate Plasma / Shield gases for the desired process may be selected.
Material Thickness
The desired material thickness may be selected.
The following are the Cut Process parameters within the database which are used to configure the
process. Appropriate parameter information is transmitted to the power supply.
Cut Speed
Specifies the speed for the selected process variables.
