Files 103
Loading Of Invalid Files
While loading the desired part file, the control will check the part for proper geometry and other similar
errors. If a part is loaded in which an error is detected, a message will be posted on screen to
indicate the error.
If the part is attempted to be loaded, the control will display the invalid line of code from the text
editor.

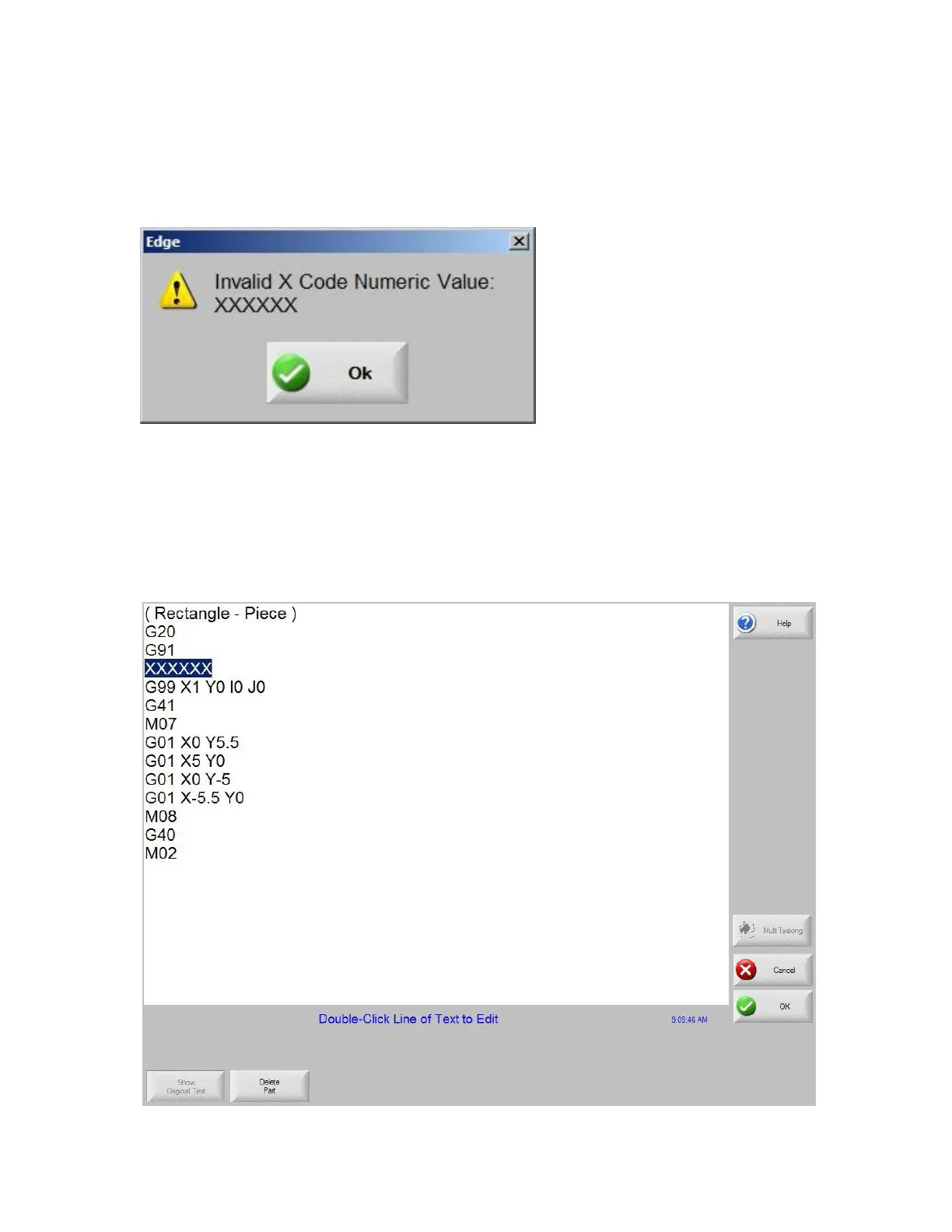

Example: In the following example, the line of code “XXXXXXXX” is invalid and has been highlighted
for easy detection. The part file may be corrected using the text editor. After the invalid code has
been corrected, the control will attempt to translate the part file and will indicate any additional invalid
codes.
