Shape Manager 66

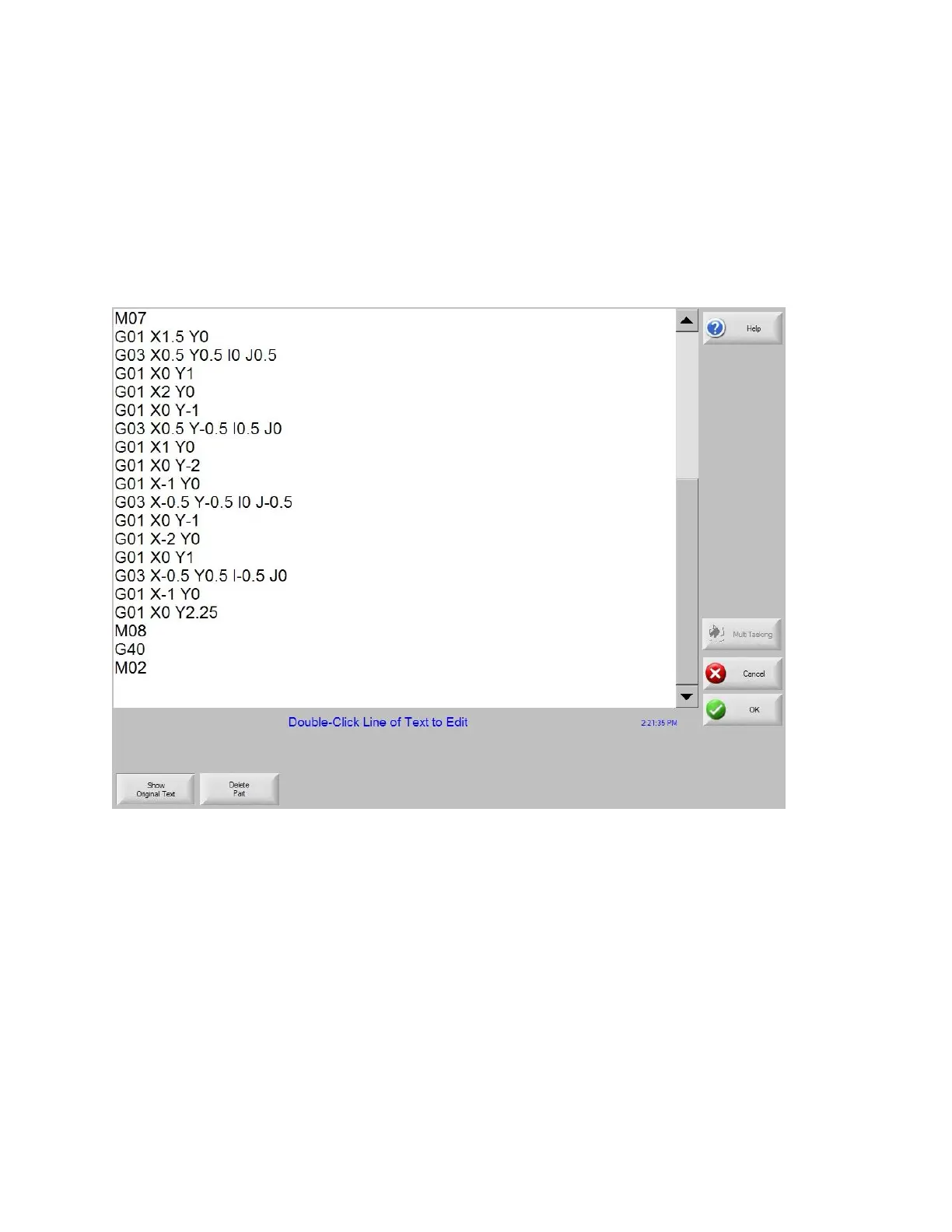

Text Editor
This screen is for manually inputting or editing of a part program in either ESSI or EIA format. The
current part that is in memory will be displayed upon entering this screen. The OK soft key will save
any changes to the current part in memory. If you want to save the changes to the hard drive, go to
the Files Save to Disk screen. If you do not want to save any changes that were made, press Cancel
on the keyboard.
Changes can be made by pressing on the desired line of code. An alphanumeric keypad will be
displayed to initiate changes.
Show Original Text
Pressing the Show Original Text button allows the user to view and edit the part program in the
original format in which it was written.
Delete Part
The Delete Part button will delete the current part from the Text Editor so that a new part can be
constructed.
