Intel Cyclone 10 GX User Manual

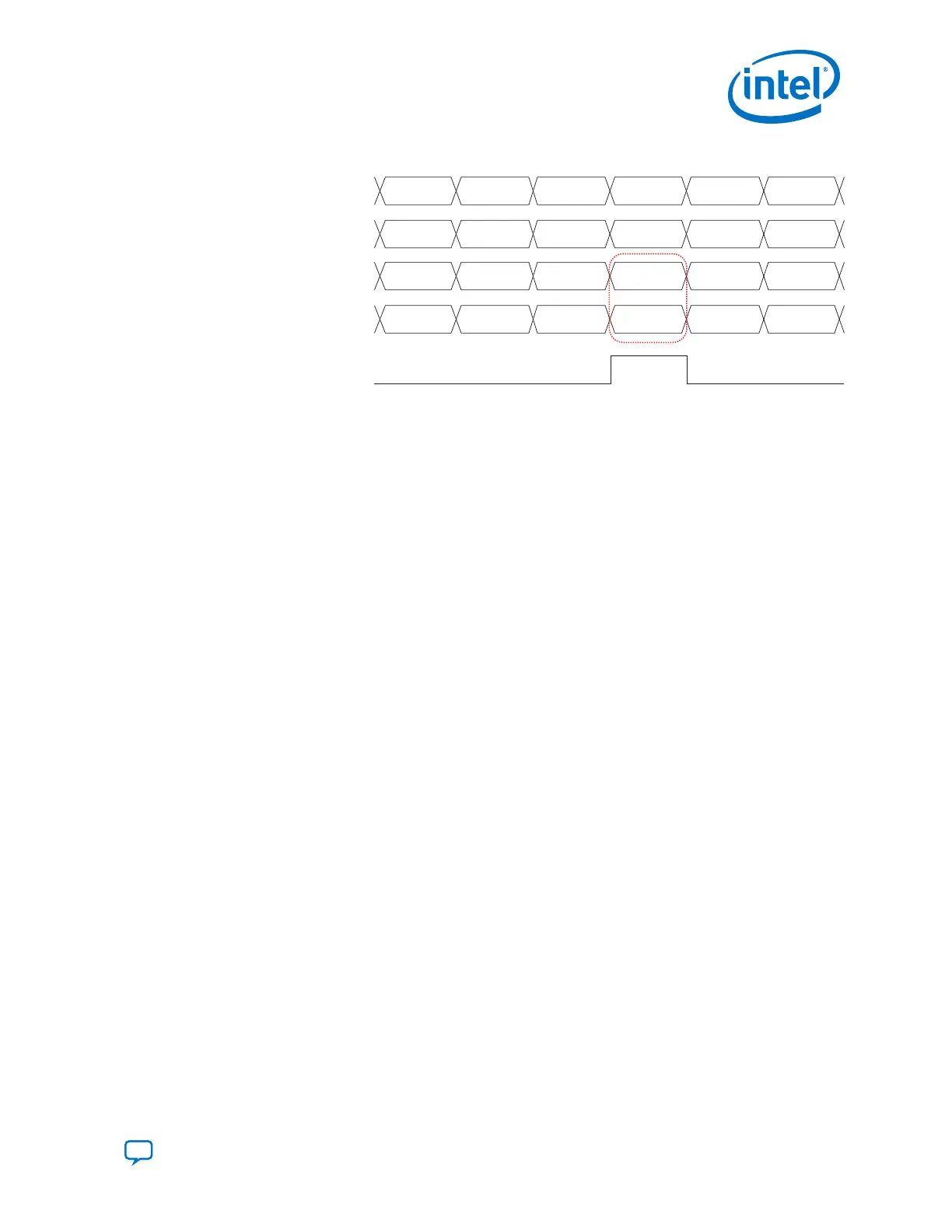

Figure 104. Rate Match FIFO Becoming Empty After Reading out the 20-Bit Word D5D6
D2 D4 D6 /K30.7/ D8 D10
D1 D3 D5 /K30.7/ D7
D9
rx_parallel_data[19:10]
rx_parallel_data[9:0]
rx_std_rmfifo_empty
D2 D4 D6 D8 D10 D12
D1 D3 D5 D7 D9
D11
tx_parallel_data[19:0]
tx_parallel_data[9:0]
2.9.2.9. 8B/10B Encoder and Decoder
To enable the 8B/10B Encoder and the 8B/10B Decoder, select the Enable TX
8B/10B Encoder and Enable RX 8B/10B Decoder options on the Standard PCS
tab in the IP Editor. Platform Designer allows implementing the 8B/10B decoder in RX-
only mode.
The following ports are added:
•
tx_datak
•
rx_datak
•
rx_runningdisp
•
rx_disperr
•
rx_errdetect
rx_datak and tx_datak indicate whether the parallel data is a control word or a
data word. The incoming 8-bit data (tx_parallel_data) and the control identifier
(tx_datak) are converted into a 10-bit data. After a power on reset, the 8B/10B
encoder takes the 10-bit data from the RD- column. Next, the encoder chooses the
10-bit data from the RD+ column to maintain neutral disparity. The running disparity
is shown by rx_runningdisp.
2.9.2.10. 8B/10B TX Disparity Control
The Disparity Control feature controls the running disparity of the output from the
8B/10B Decoder.
To enable TX Disparity Control, select the Enable TX 8B/10B Disparity Control
option. The following ports are added:
•
tx_forcedisp—a control signal that indicates whether a disparity value has to
be forced or not
•
tx_dispval—a signal that indicates the value of the running disparity that is
being forced
When the number of data channels is more than 1, tx_forcedisp and tx_dispval
are shown as buses in which each bit corresponds to one channel.
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
177
