rx_std_wa_patternalign, the word aligner maintains the current word boundary
even when it finds the alignment pattern in a new word boundary. When the word
aligner is synchronized to the new word boundary, rx_patterndetect and
rx_syncstatus are asserted for one parallel clock cycle.
PCS-PMA Width =20
When the PMA-PCS width is 20, any alignment pattern found after the initial alignment
in a different word boundary causes the word aligner to resynchronize to this new
word boundary on the rising edge of rx_std_wa_patternalign;
rx_std_wa_patternalign is edge sensitive. The word aligner will maintain the
current word boundary until the next rising edge of rx_std_wa_patternalign.
When the word aligner is synchronized to the new word boundary,
rx_patterndetect will assert for one parallel clock cycle and rx_syncstatus will
remain asserted until the next rising edge of rx_std_wa_patternalign.

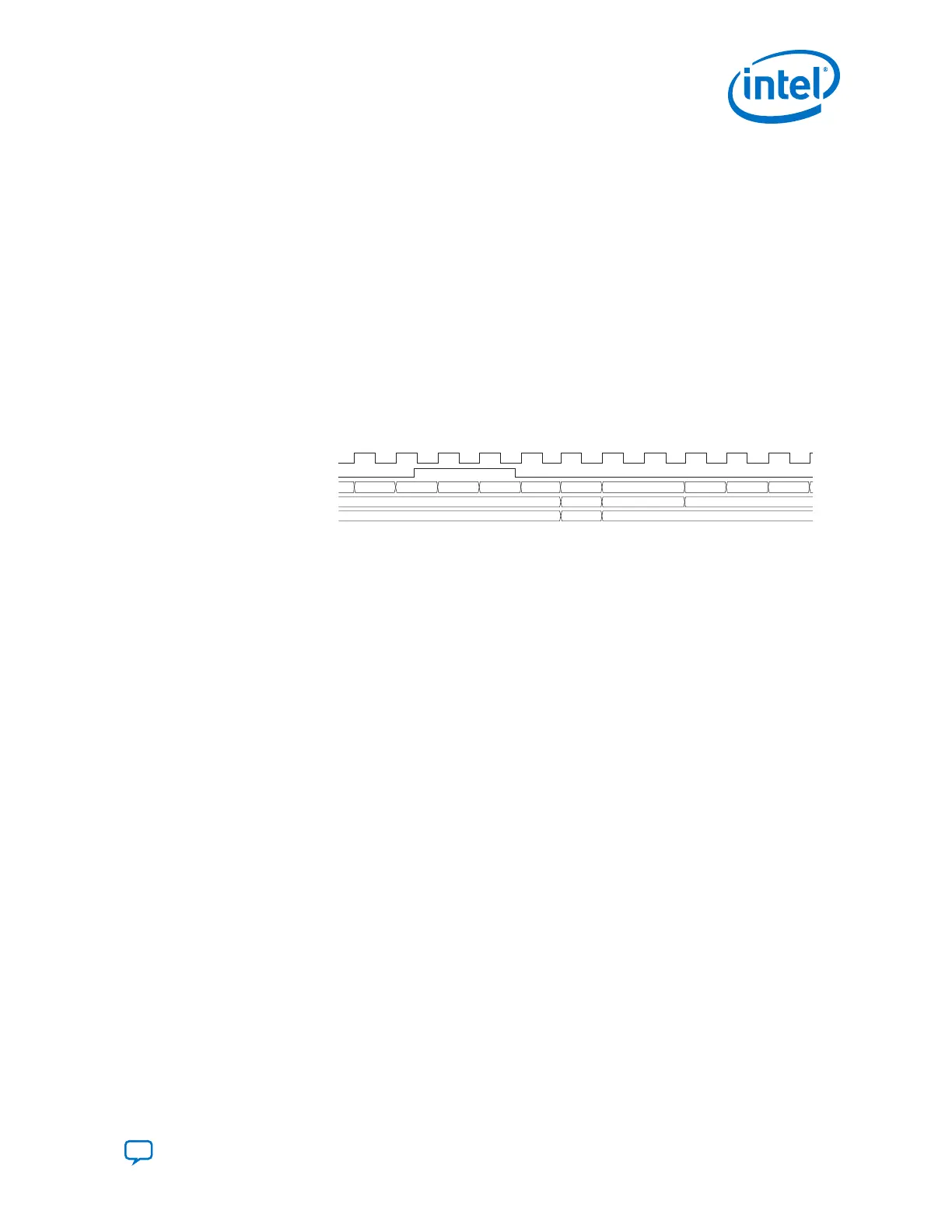

Figure 73. Word Aligner in Manual Alignment Mode Waveform
rx_std_wa_patternalign
rx_parallel_data
rx_patterndetect
rx_syncstatus
rx_clkout
0...
0
0000
f1e4b6e4 b9dbf1db 915d061d e13f913f 7a4ae24a bcbc7b78 bcbcbcbc
1100
1100
1111
1111 0000
95cd3c50 91c295cd ded691c2
Related Information
Word Aligner on page 305
2.8.4. How to Implement CPRI in Cyclone 10 GX Transceivers
You should be familiar with the Standard PCS and PMA architecture, PLL architecture,
and the reset controller before implementing your CPRI protocol.
1. Instantiate the Cyclone 10 Transceiver Native PHY IP from the IP Catalog.
Refer to Select and Instantiate the PHY IP Core on page 17 for more details.
2. Select CPRI (Auto) or CPRI (Manual) from the Transceiver configuration
rules list located under Datapath Options, depending on which protocol you are
implementing.
3. Use the parameter values in the tables in Native PHY IP Parameter Settings for
CPRI on page 155 as a starting point. Or, you can use the protocol presets
described in Preset Configuration Options. You can then modify the setting to meet
your specific requirements.
4. Click Generate to generate the Native PHY IP (this is your RTL file).
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
153
