Intel Cyclone 10 GX User Manual

2.7.8. Native PHY IP Ports for PIPE

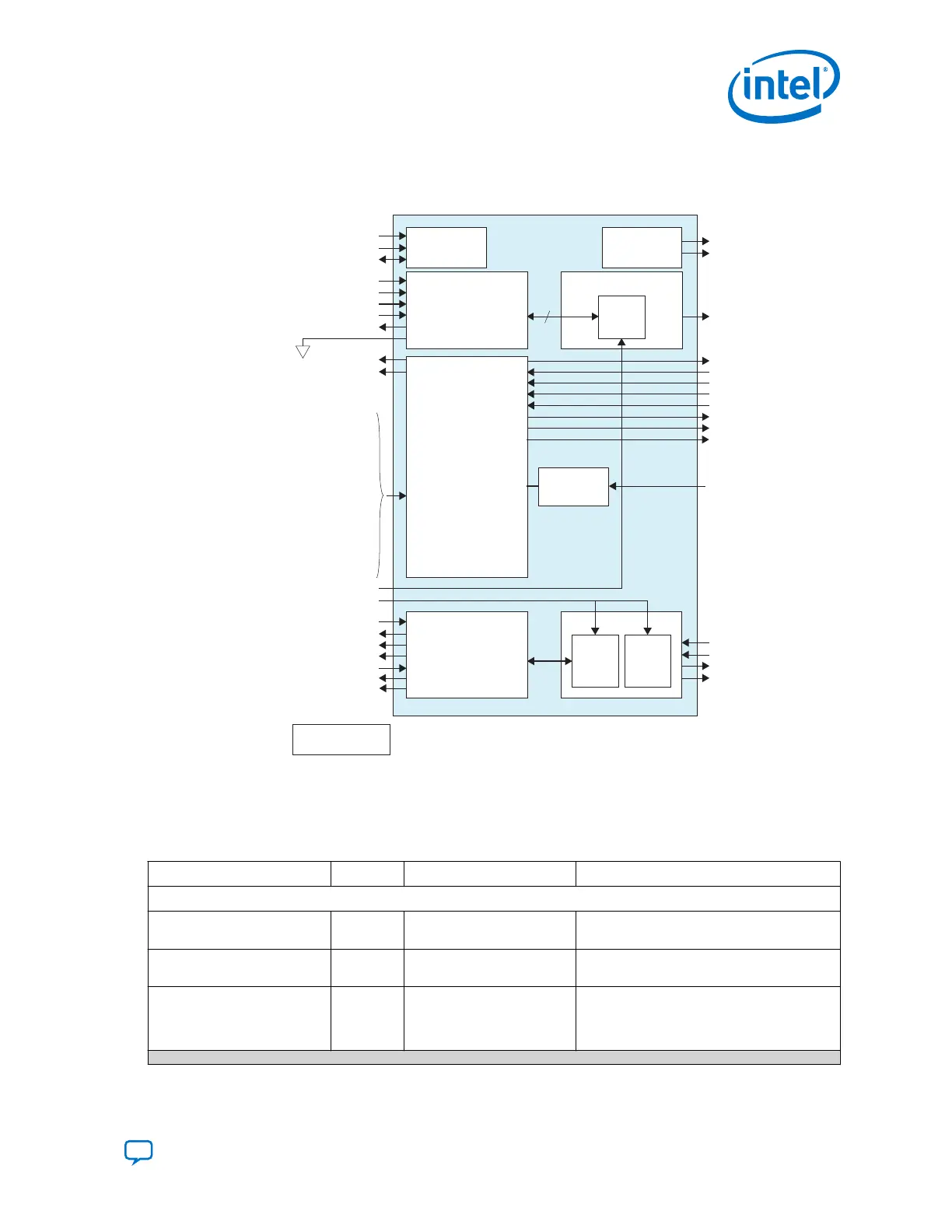

Figure 66. Signals and Ports of Native PHY IP for PIPE
-
reconfig_reset
reconfig_clk
reconfig_avmm
tx_digitalreset
tx_datak [3:0], [1:0], or [0]
tx_parallel_data [31:0], [15:0], or [7:0]
tx_coreclkin
tx_clkout
pipe_rx_elecidle [(N-1):0]
pipe_phy_status [(N-1):0]
pipe_rate [1:0]
pipe_sw_done [1:0]
pipe_rx_polarity [(N-1):0]
pipe_tx_elecidle [(4N-1):0]
pipe_tx_detectrx_loopback [(N-1):0]
Gen1/Gen2 - Black
Gen2- Red
pipe_powerdown [(2N-1):0]
pipe_rx_eidleinfersel [(3N-1):0]
pipe_tx_deemph [(N-1):0]
tx_bonding_clocks[(6n-1):0]
tx_analogreset
rx_analogreset
rx_digitalreset
rx_datak [3:0], [1:0], or [0]
rx_parallel_data [31:0], [15:0], or [7:0]
rx_clkout
rx_coreclkin
rx_syncstatus
tx_datak [3:0], [1:0], or [0]
tx_parallel_data[31:0],[15:0],or[7:0]
tx_coreclkin
tx_clkout
unused_tx_parallel_data[118:0]
Reconfiguration
Registers
TX Standard PCS
PIPE Interface
rx_datak [3:0], [1:0], or [0]
rx_parallel_data[31:0],[15:0],or[7:0]
rx_clkout
rx_coreclkin
rx_syncstatus
unused_rx_parallel_data[118:0]
RX Standard PCS
Nios II Hard
Calibration IP
TX PMA
Serializer
RX PMA
Deserializer CDR
tx_cal_busy
rx_cal_busy
tx_serial_data
pipe_hclk_out [0]
pipe_hclk_in [0] (from TX PLL)
pipe_tx_compliance [(4N-1):0]
pipe_tx_margin [(3N-1):0]
pipe_tx_swing [(N-1):0]
pipe_rx_valid [(N-1):0]
pipe_rx_status [(3N-1):0]
pipe_sw [1:0]
rx_serial_data
rx_cdr_refclk0
rx_is_lockedtodata
rx_is_lockedtoref
Cyclone 10 Transceiver Native PHY
10
Local CGB
(for X1 Modes Only
tx_serial_data
Note: N is the number of PCIe channels
Table 126. Ports for Cyclone 10 GX Transceiver Native PHY in PIPE Mode
This section contains the recommended settings for this protocol. Refer to Using the Cyclone 10 GX Transceiver
Native PHY IP Core for the full range of parameter settings.
Port
Direction Clock Domain Description
Clocks
rx_cdr_refclk0
In N/A
The 100/125 MHz input reference clock
source for the PHY's TX PLL and RX CDR.
tx_serial_clk0
In N/A
The high speed serial clock generated by the
PLL.
pipe_hclk_in[0]
In N/A
The 500 MHz clock used for the Auto-Speed
Negotiation (ASN) block. This clock is
generated by the PLL, configured for Gen1/
Gen2.
continued...
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
139
