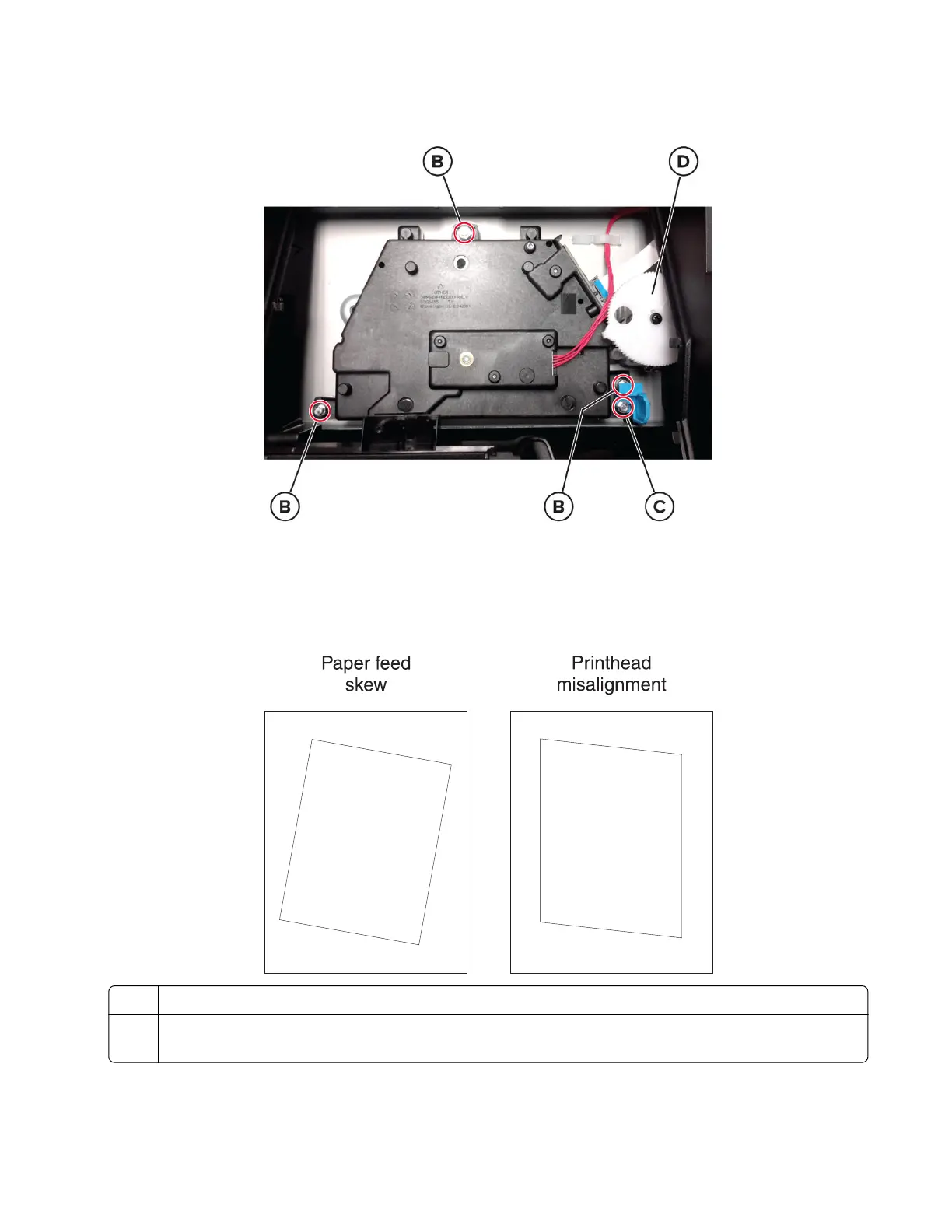

4 Loosen the printhead alignment lock screw (C). With the printhead unlocked, its alignment can now be
adjusted by the printhead adjustment wheel (D).
5 Check the Quick Test Page for any sign of misalignment by checking the alignment indicators at the bottom
left and bottom right of the test page for equal distance from the bottom of the page. If necessary, rotate
the printhead adjustment wheel either clockwise (to rotate the image clockwise) or counterclockwise (to
rotate the image counterclockwise), and then print another Quick Test Page. You may need to repeat this
step two times or more before you get satisfactory bottom skew results.
1 To correct, turn the printhead adjustment wheel clockwise to rotate both edges clockwise.
2 To correct, turn the printhead adjustment wheel counterclockwise to rotate both edges
counterclockwise.
4064
Parts removal
407
