All fixture symbols have in the upper left corner the fixture ID and the orange dimmer bar below.
The dimmer bar is a graphical view of the dimmer value.
Example Fixture 1 - Dimmer symbol:
Displays additional the dimmer value of 50 %.
Example Fixture 101 - Moving light symbol:
Displays additional a red gobo wheel. In this area of the moving light symbol, there is a graphical view for the color
and the gobo.
The numbers at the bottom of the symbol displays the position of pan and tilt. ???
Example Fixture 13 - LED symbol:
Displays additional in the upper area the current color.
In the lower area are the detailed color attributes displayed.

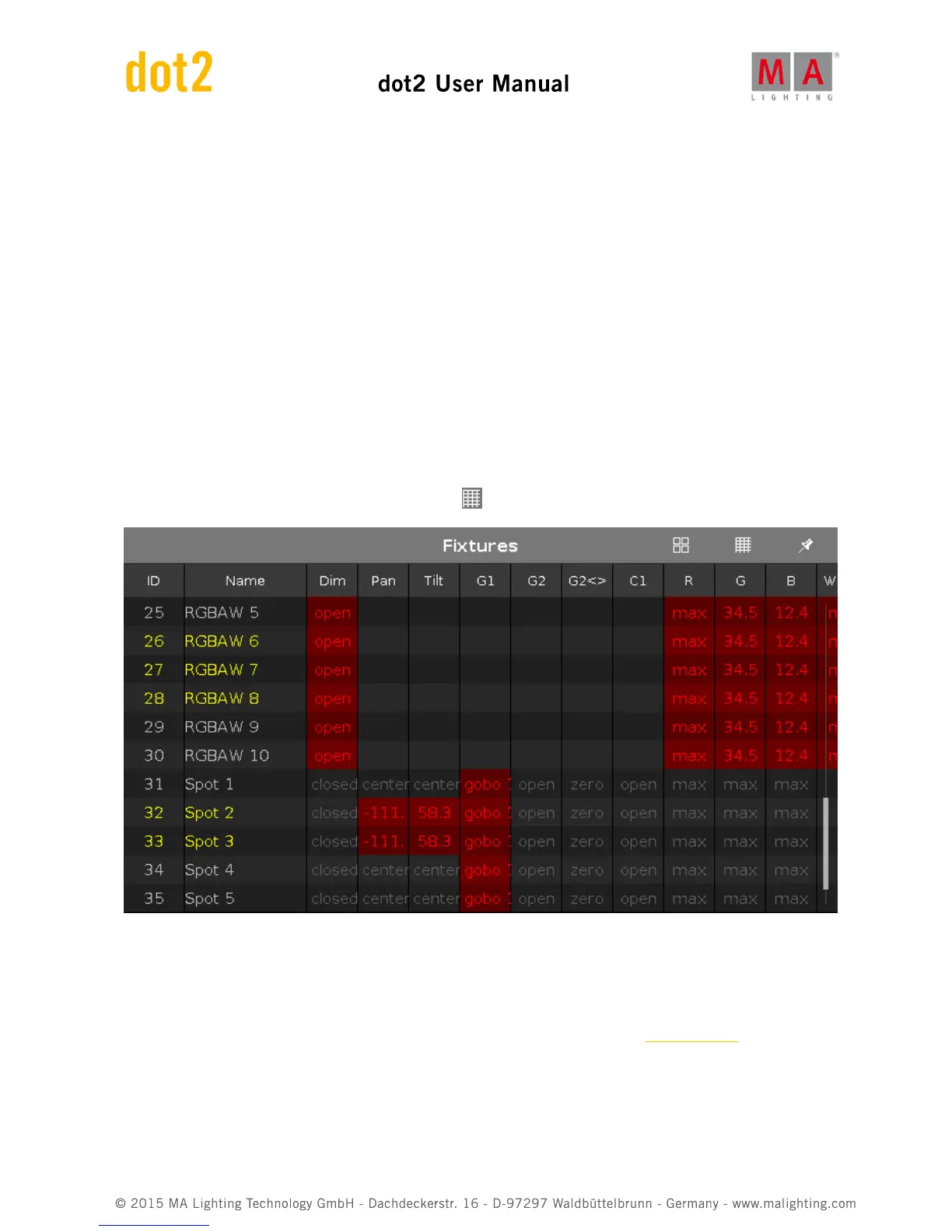

Sheet View
To go to the fixture sheet view tap the sheet view icon in the title bar.
In the fixture sheet view are all patched fixtures and their values and attributes in a numeric order of the fixture ID.
In the first column is the fixture ID displayed.
In the second column is the fixture name displayed.
After the fixture name column are the attributes displayed, in the same order like the preset type bar.
If you use a preset, the name of the preset is displayed instead of the value.
