MacDon FlexDraper FD140 - Adjusting Wing Balance

214683 79 Revision A
Adjusting Wing Balance
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.
This procedure describes how to adjust the balance of each wing. Before proceeding, refer to Checking Wing
Balance, page 73 to determine if adjustments are necessary.
IMPORTANT:
To ensure correct wing balance readings, make sure the header float is set properly before proceeding. Refer to
Checking and Adjusting Header Float, page 64. The float module must be sitting level before performing any
adjustments.
1023837
A
B
C

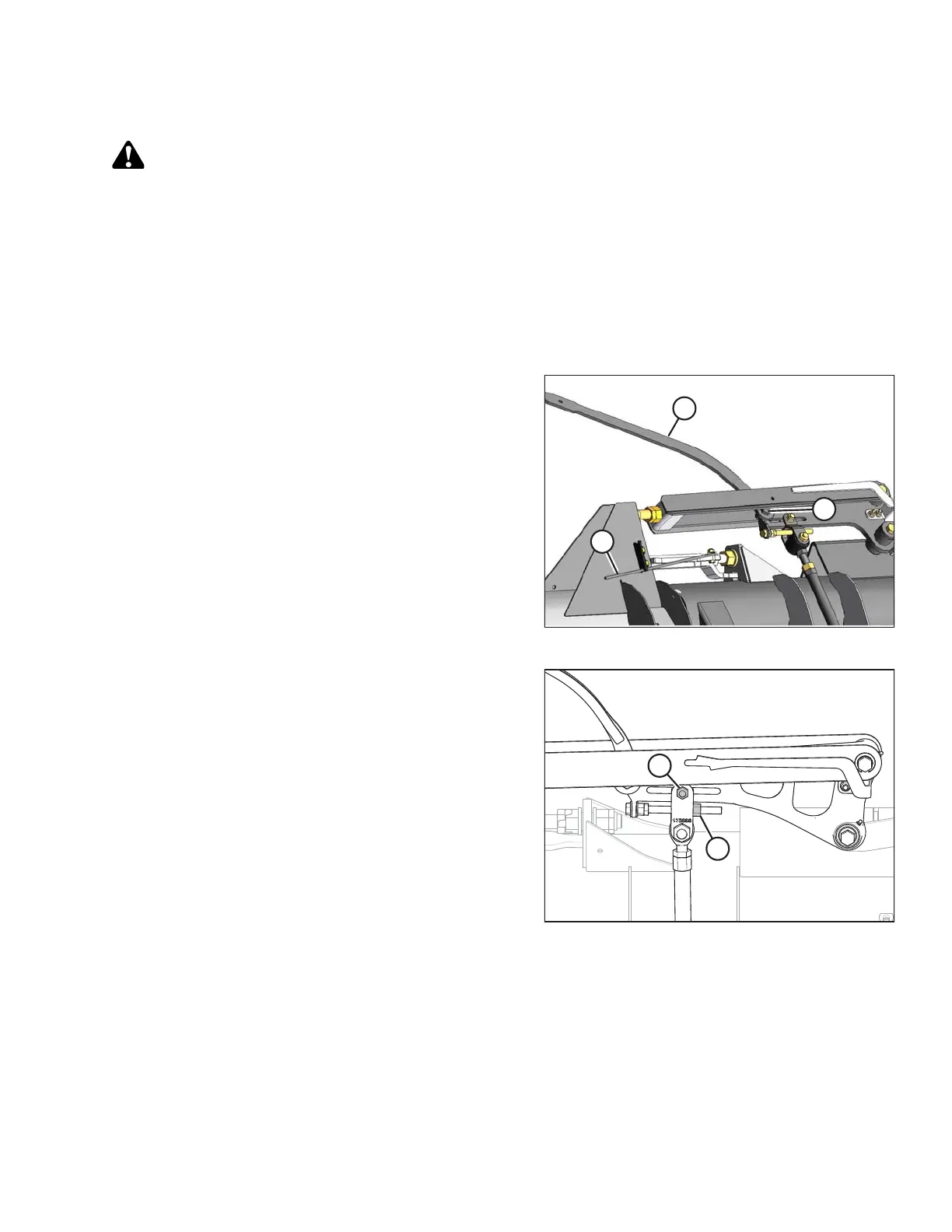

Figure 3.68: Balance Linkage (Left Side)
1. Place torque wrench (A) on bolt (B). Check that wing
lock (C) is in lower position.
1023838
A
B
Figure 3.69: Balance Linkage (Left Side)
2. Loosen nut (A) on clevis bolt for the wing requiring
adjustment as determined by the wing balance check.
3. Loosen jam nut (B).
OPERATION
