214683 222 Revision A

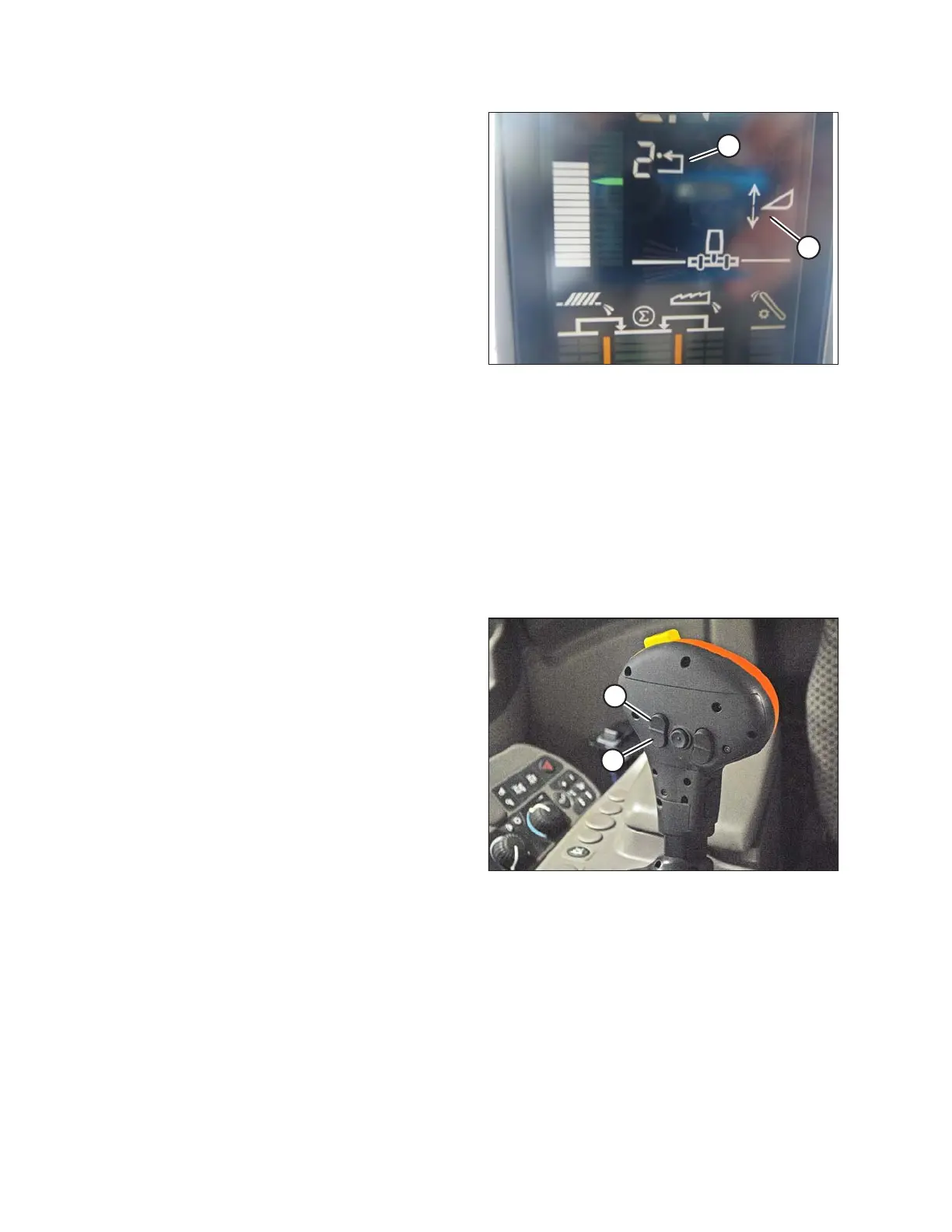

Figure 3.365: Combine Display
NOTE:
When the AHHC is engaged, the AHHC icon (A)
appears on the monitor and the number indicating
which button was pressed (B) is displayed on
the screen.
Calibrating Feeder House Fore-Aft Tilt Range (John Deere S and T Series)
For best performance of the auto header height control (AHHC), perform these procedures with the center-link set
to D. When setup and calibration are complete, adjust the center-link back to desired header angle. For
instructions, refer to 3.7.5 Header Angle, page 81.
This procedure applies only to model year 2015 and later John Deere S and T Series combines.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
Figure 3.366: John Deere Control Handle
The feeder house fore/aft tilt is controlled by buttons (C) and
(D) at the back of the control handle.
OPERATION
