214683 93 Revision A

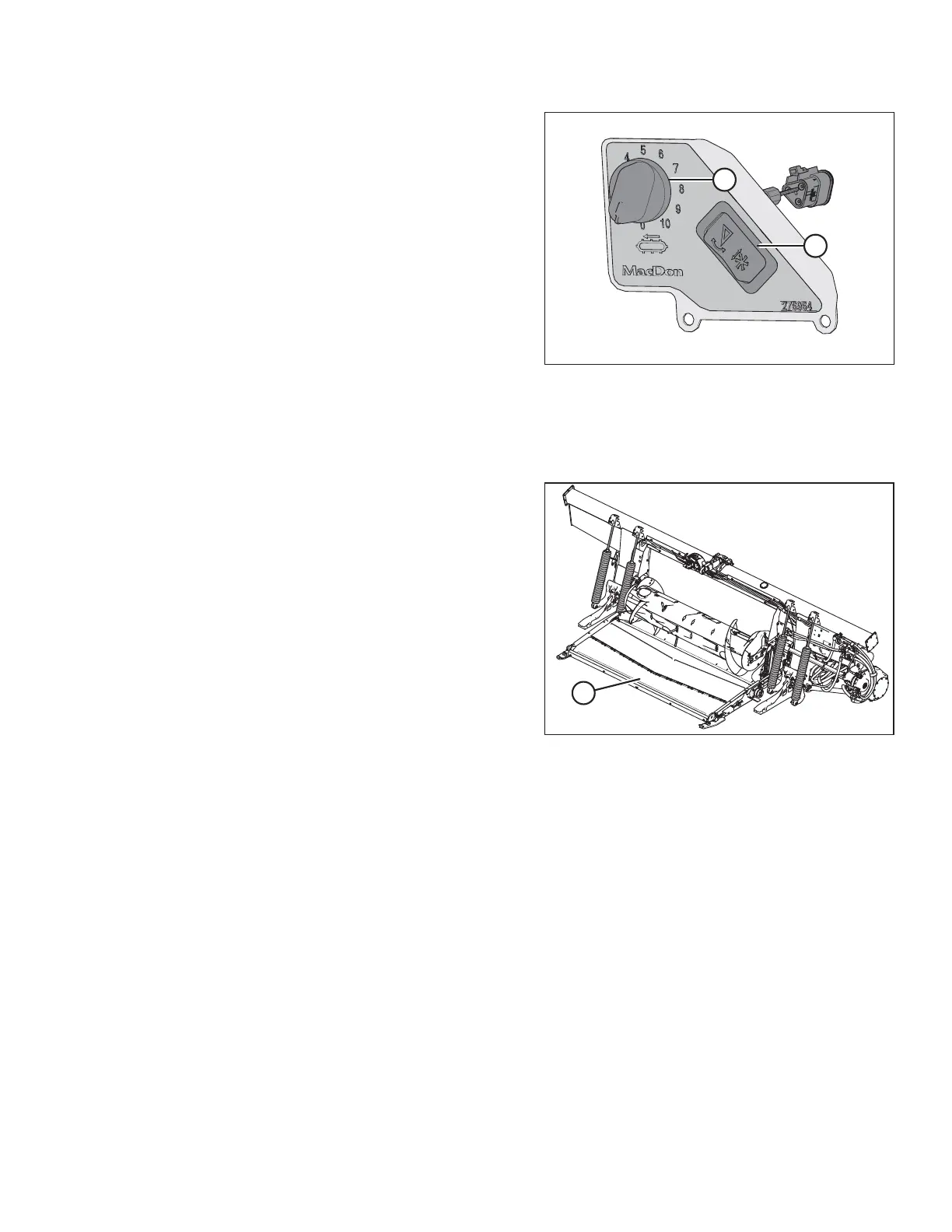

Figure 3.96: In-Cab Side Draper Speed Control
If the optional in-cab side draper speed control kit is
installed, rotate the knob (A) to the desired setting with the
header in either operating or shutdown mode. Set the knob
to 6 for normal crop delivery. Switch (B) activates the
header tilt or reel fore-aft controls. Refer to Adjusting
Header Angle from Combine, page 83.
Feed Draper Speed
The feed draper moves the cut crop from the side drapers into the float module feed auger.
Figure 3.97: FM100 Float Module
The float module feed draper (A) is driven by a hydraulic
motor and a pump that is powered by the combine feeder
house drive through a gearbox on the float module.
The feed draper speed is determined by the combine feeder
house speed and cannot be independently adjusted.
OPERATION
