214683 298 Revision A

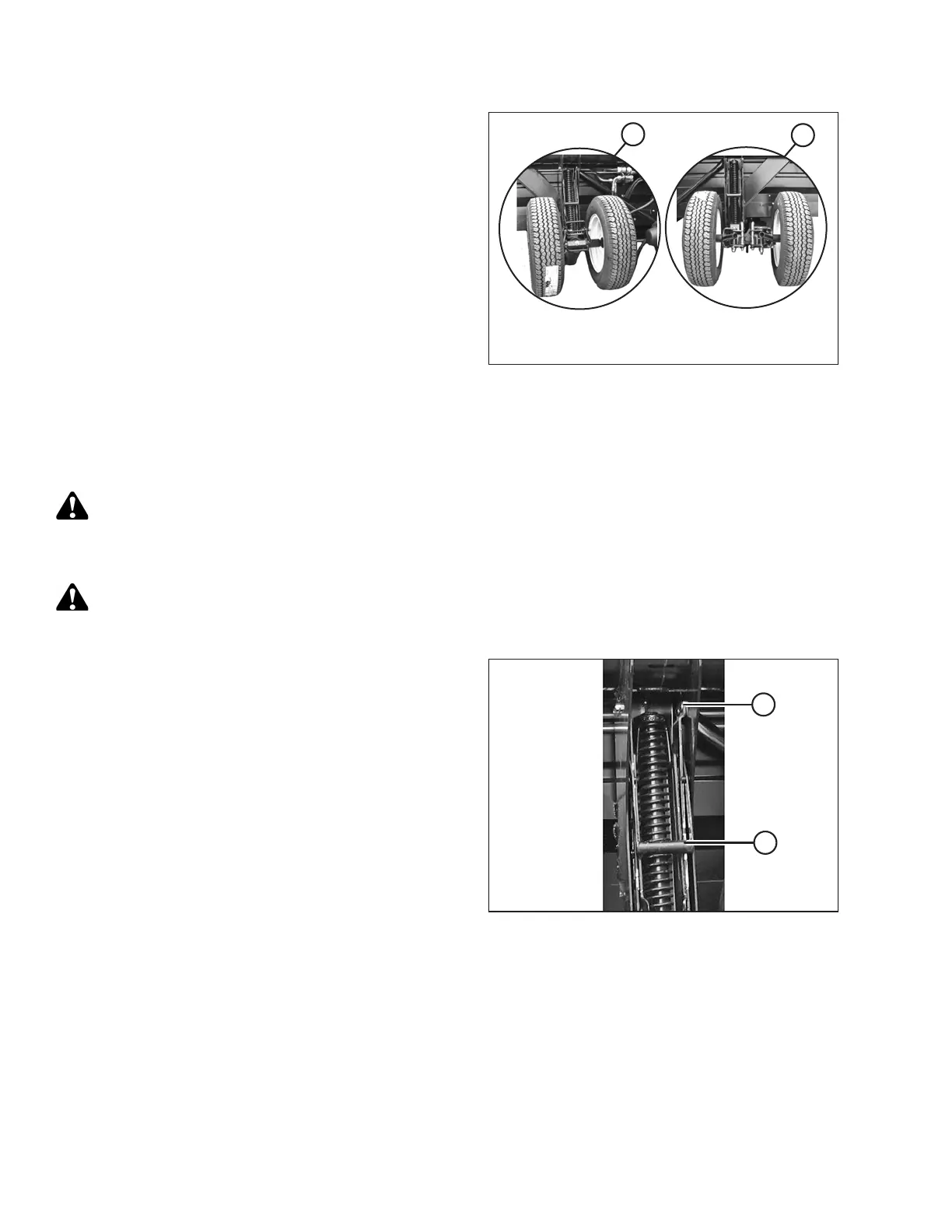

Figure 3.527: Field Position
13. Complete the conversion by ensuring the left side (A)
and right side (B) wheels are in the position shown.
3.12.4 Converting from Field to Transport Position
Moving Front (Left) Wheels into Transport Position
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
CAUTION
Stand clear of wheels and release linkage carefully as wheels will drop once the mechanism is released.
Figure 3.528: Suspension Linkage
1. Pull the handle (B) upwards to release and raise the
linkage (A) fully upwards into the vertical support.
2. Raise the header fully, stop the engine, and remove the
key from ignition. Engage the header safety props.
OPERATION
