Lubricating Header Drive Gearbox
Checking Oil Level in Header Drive Gearbox
Check the header drive gearbox oil level every 100 hours.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

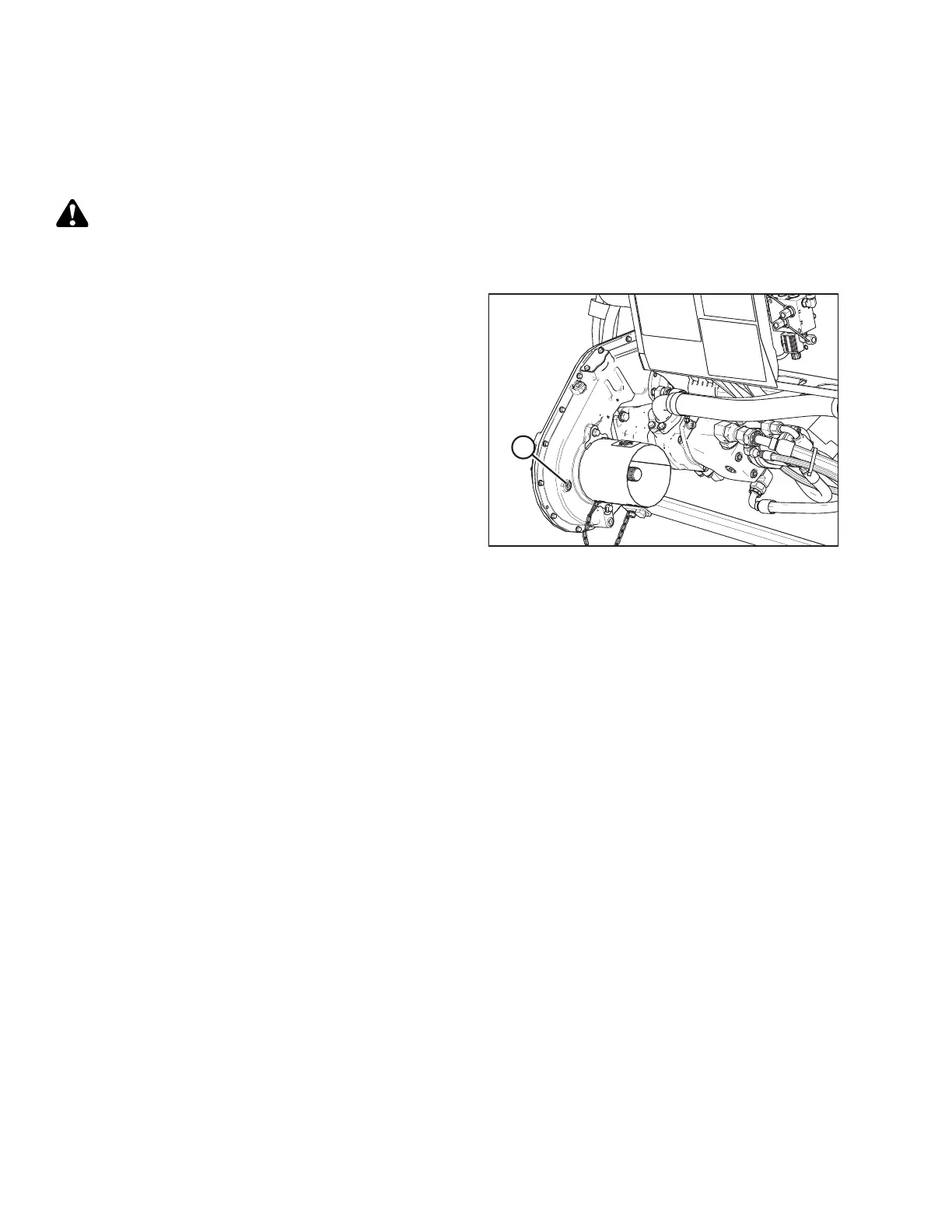

Figure 5.24: Header Drive Gearbox
1. Lower the header to the ground and ensure the gearbox
is in working position.
2. Shut down the engine, and remove the key from the
ignition.
3. Remove the oil level plug (A) and check that the oil level
is up to the bottom of the hole.
4. Reinstall the oil level plug (A).
5. Add oil if required. Refer to Adding Oil to Header Drive
Gearbox, page 405.
