MacDon FlexDraper FD140 - Endshields; Opening Endshields

214683 33 Revision A
1001697
B
A

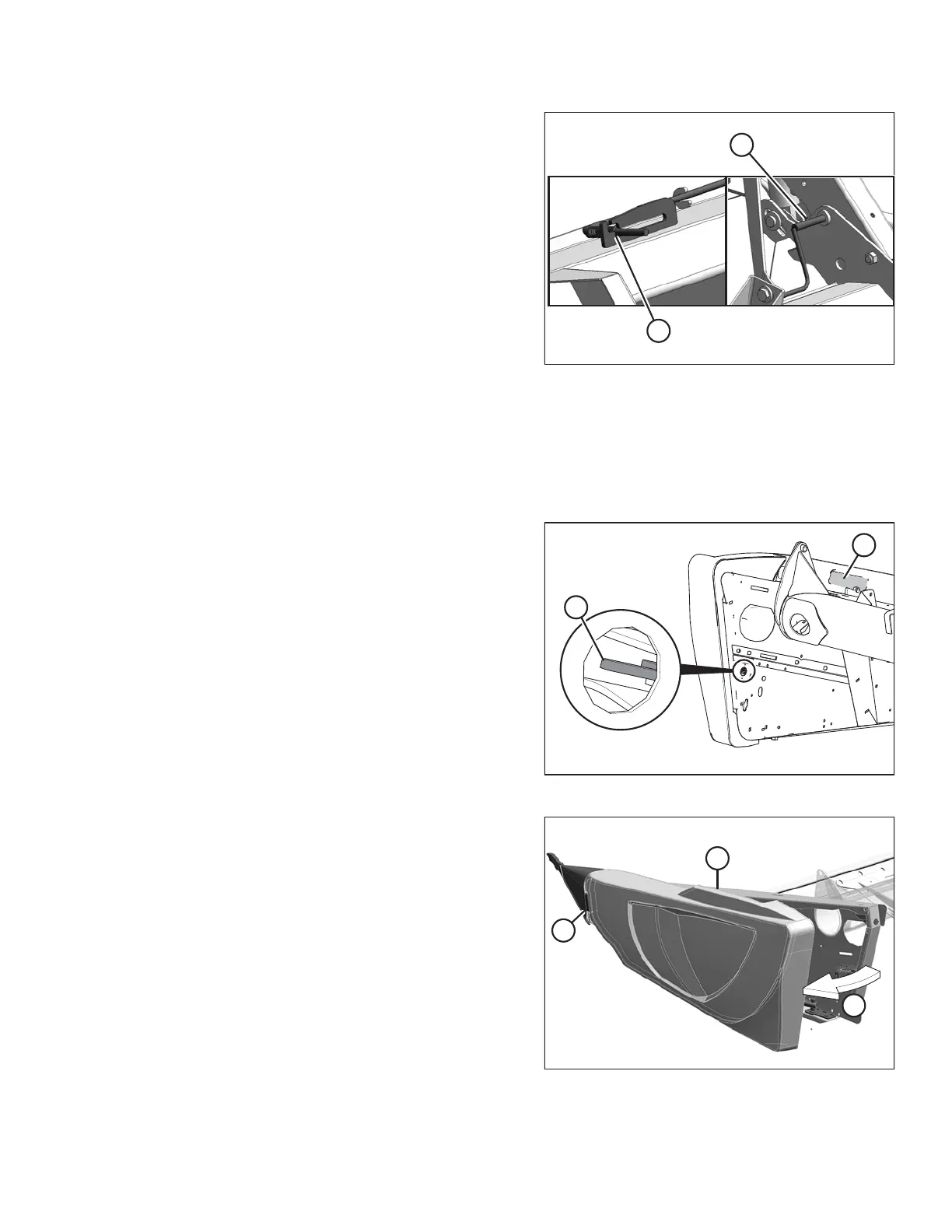

Figure 3.6: Reel Safety Prop – Center Arm
3. Use handle (B) to move lock rod (A) to the
outboard position.
3.2.3 Endshields
A hinged, polyethylene endshield is fitted on each end of the header.
Opening Endshields
1024277
A
B
Figure 3.7: Left Endshield
1. Push release lever (A) located on the backside of the
endshield to unlock the shield.
2. Pull endshield open using handle depression (B).
1024681
A
B
C
Figure 3.8: Left Endshield
3. Pull endshield at handle depression (A). Endshield is
retained by a hinge tab (B) and will open in
direction (C).
OPERATION
