MacDon FlexDraper FD140 - Electrical System; Replacing Light Bulbs

214683 411 Revision A
5.5 Electrical System
5.5.1 Replacing Light Bulbs
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.
1001209
A

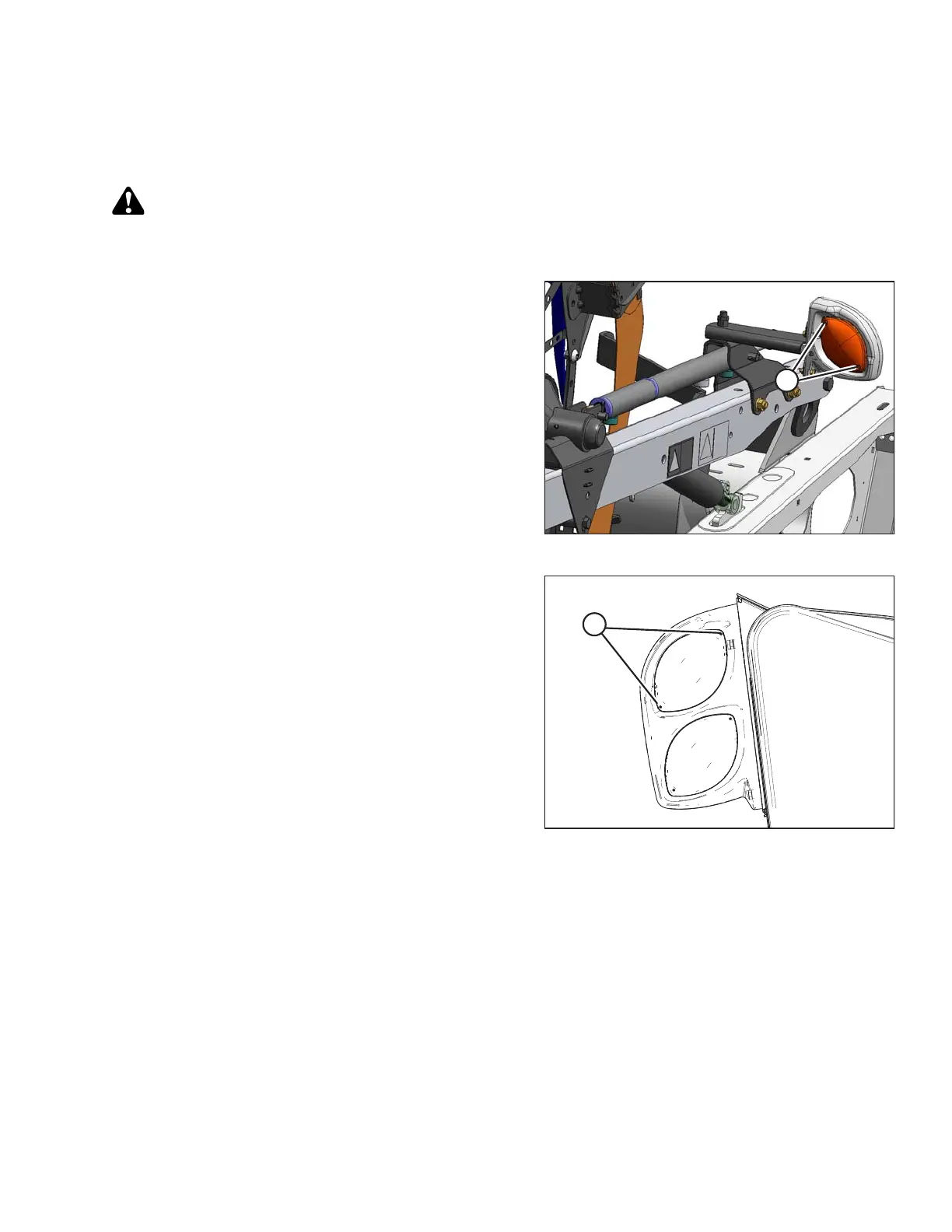

Figure 5.31: Left Transport Light
1. Use a Phillips screwdriver to remove the screws (A)
from the fixture, and remove the plastic lens. Retain
screws (A).
2. Replace the bulb, and reinstall the plastic lens and
screws.
NOTE:
Use bulb trade #1156 for amber transport lights and
#1157 for red tail light (Slow Speed Transport option).
1025301
A
Figure 5.32: Optional Slow Speed Transport
(Red and Amber Lights)
