214683 419 Revision A
5.7 Auger
The FM100 Float Module auger feeds the cut crop from the draper decks into the combine feeder house.
5.7.1 Adjusting Auger to Pan Clearance
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
IMPORTANT:
Maintain an appropriate distance between the auger and the auger pan. Too little clearance may result in the
fingers or flighting contacting and damaging the feed draper or pan when operating the header at certain angles.
Look for evidence of contact when greasing the float module.
1. Extend the center-link to the steepest header angle, and position the header 150–254 mm (6–10 in.) off the
ground.
2. Lock header wings. Refer to Locking/Unlocking Header Wings, page 70.
3. Shut down the combine, and remove the key from the ignition.

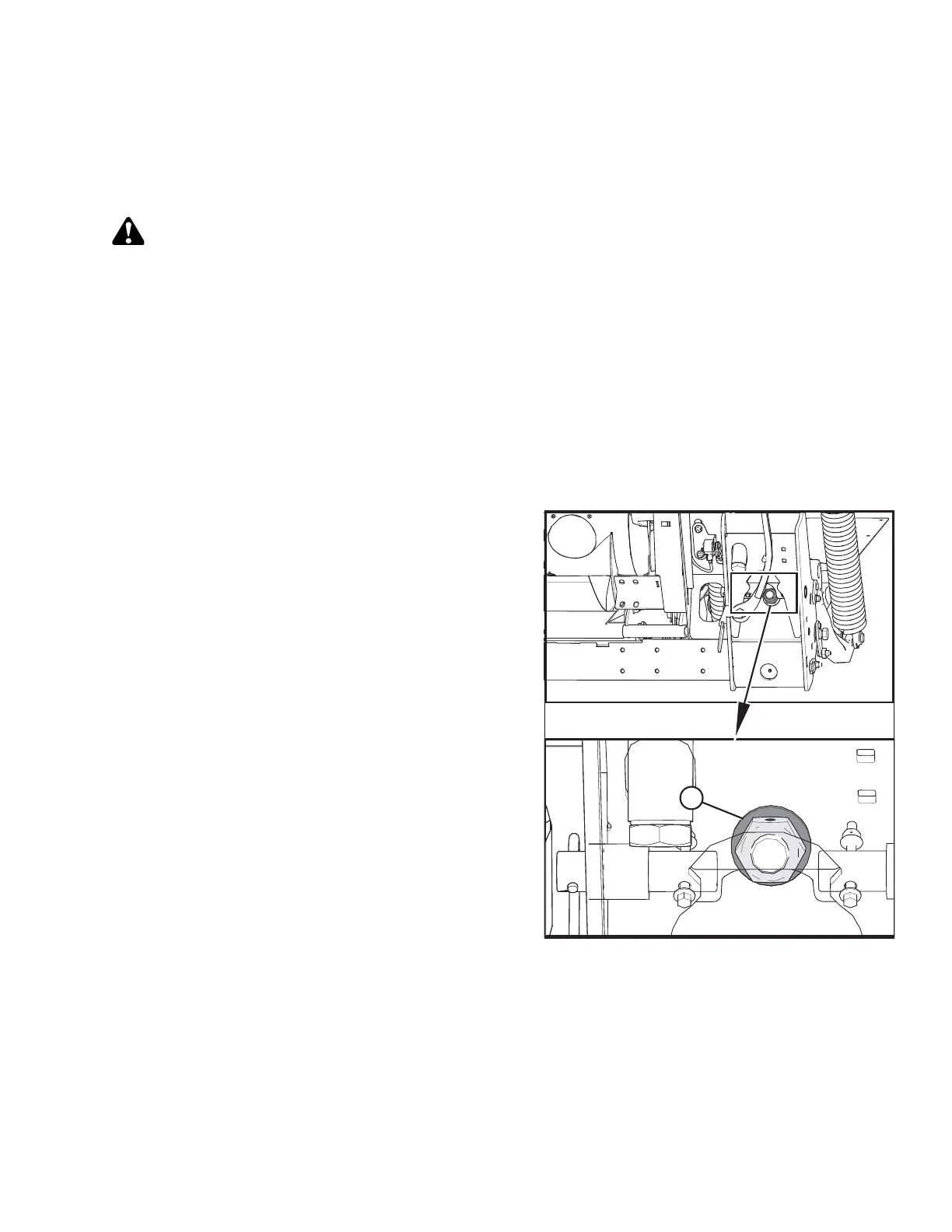

Figure 5.48: Float Lock
4. Ensure the float lock linkage is on the down stops
(washer [A] cannot be moved) at both locations.
MAINTENANCE AND SERVICING
