214683 420 Revision A

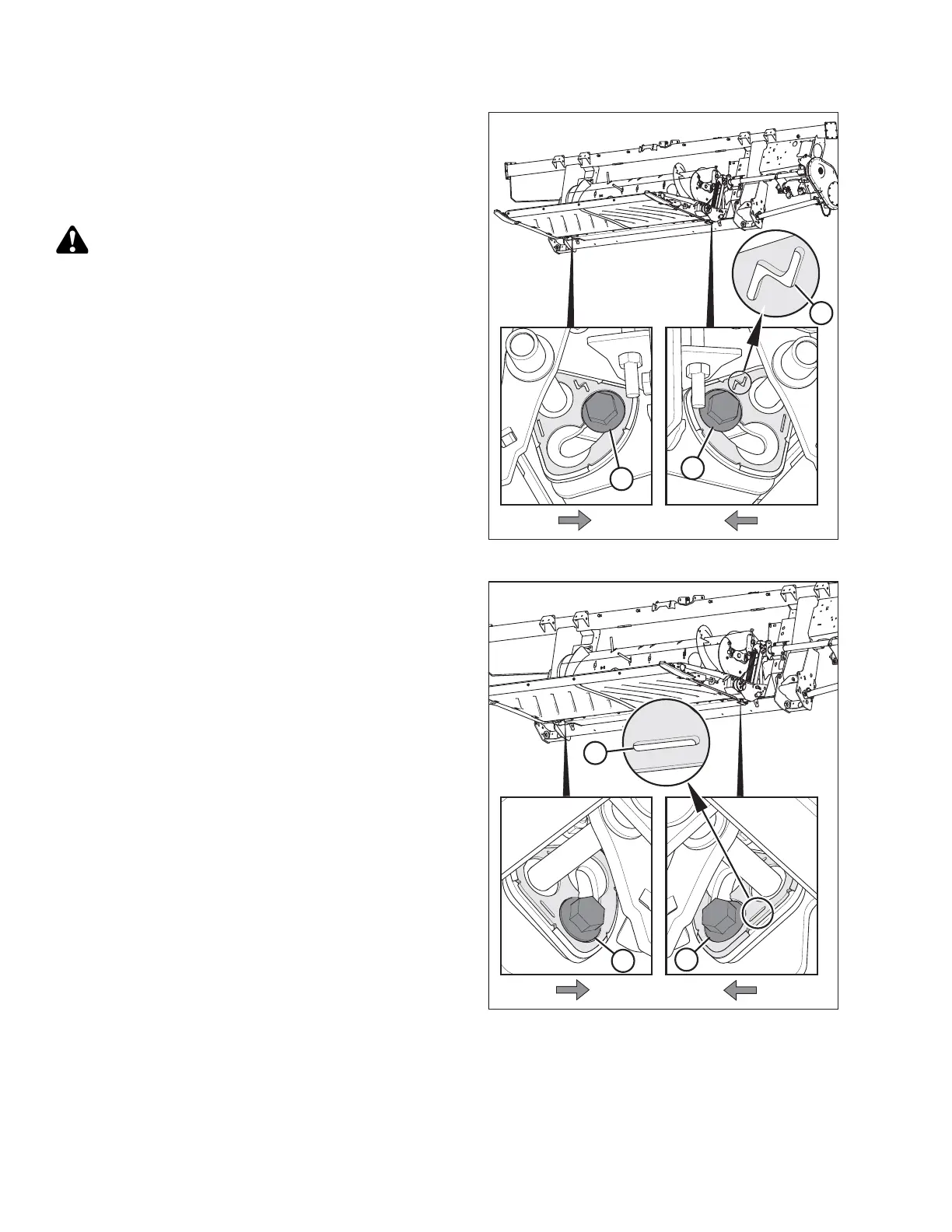

Figure 5.49: Floating Position
5. Before adjusting the auger to pan clearance, check the
auger float position to determine how much clearance is
required:
• If the bolt head (A) is closest to the floating
symbol (B), the auger is in the floating position.
CAUTION
Make sure the two bolts (A) are in the same location to
prevent damage to the machine during operation.
Figure 5.50: Fixed Position
• If the bolt head (A) is closest to the fixed symbol (B), the
auger is in the fixed position.
MAINTENANCE AND SERVICING
