214683 340 Revision A
4.4 AGCO (Challenger, Gleaner, and Massey Ferguson)
Combines
4.4.1 Attaching Header to a Challenger, Gleaner, or
Massey Ferguson Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

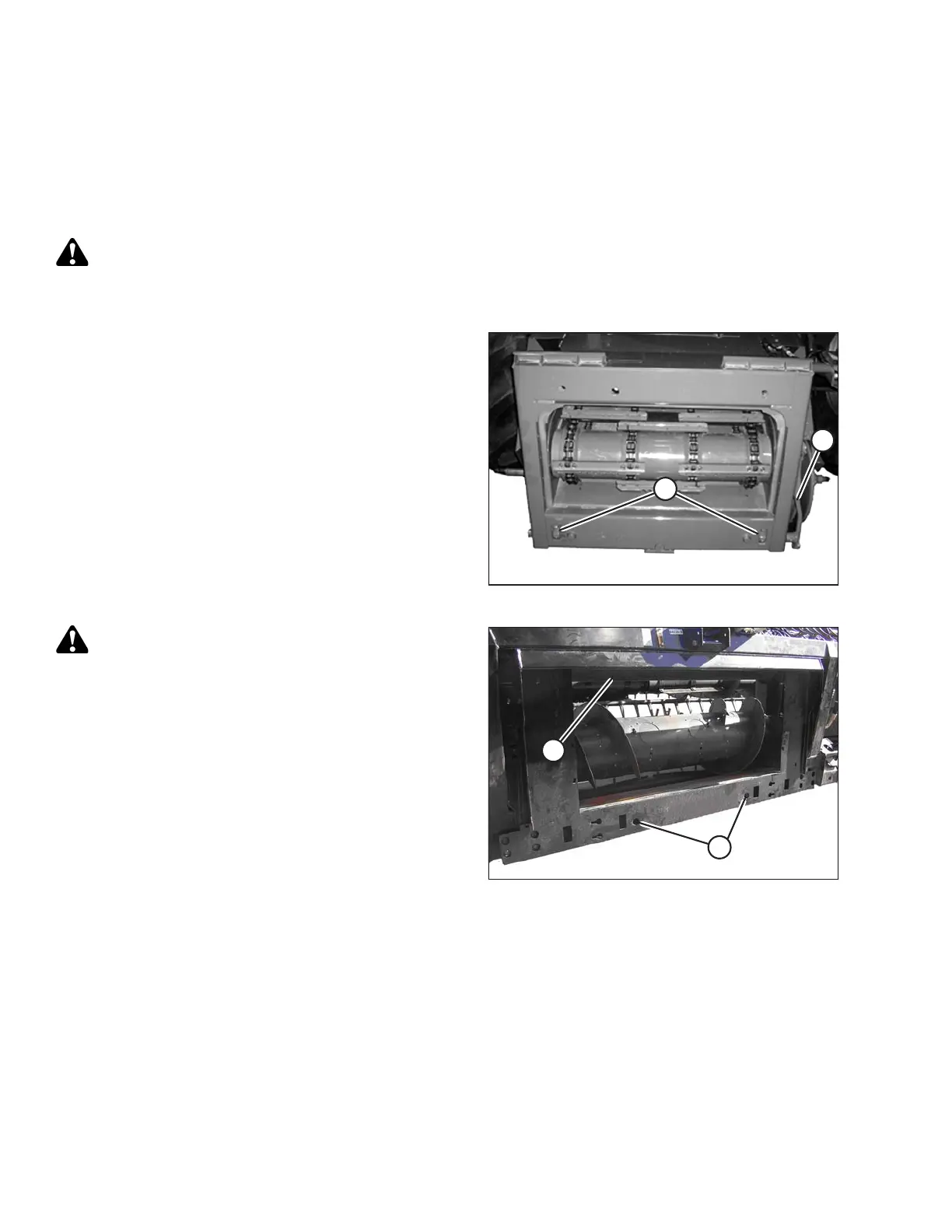

Figure 4.67: AGCO Group Feeder House
1. Use the lock handle (B) to retract the lugs (A) at the
base of the feeder house.
Figure 4.68: Float Module
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start the engine and slowly approach the header until
the feeder house is directly under the float module top
cross member (A) and the alignment pins (C) (refer to
Figure 4.69, page 341) on the feeder house are aligned
with the holes (B) in the float module frame.
HEADER ATTACHMENT/DETACHMENT
