MacDon FlexDraper FD140 - Setting the Sensitivity of the Auto Header Height Control (New Holland CR;CX Series)

214683 269 Revision A
1003628

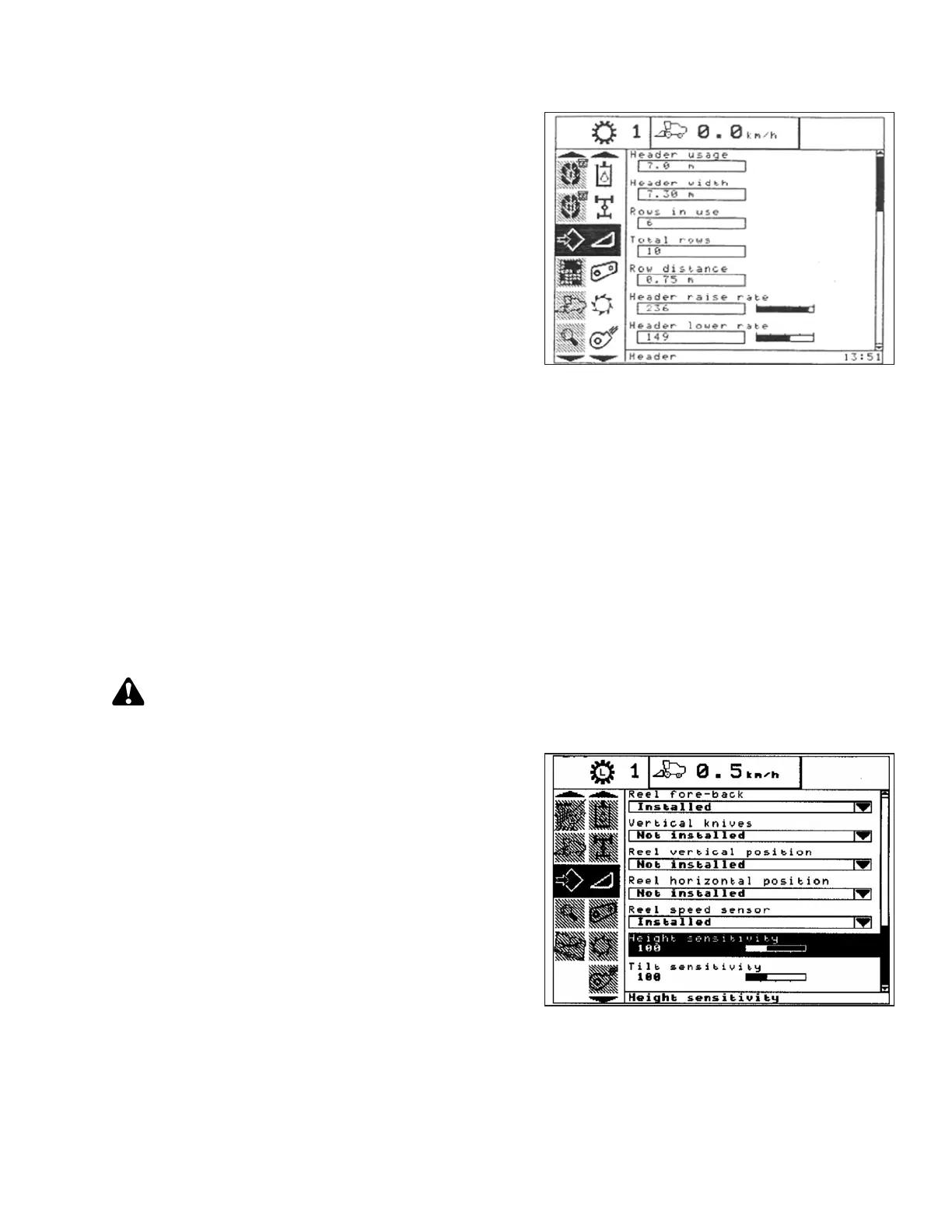

Figure 3.472: New Holland Combine Display
1. Select HEADER LOWER RATE on the combine display.
2. Use the + or – buttons to change the setting to 50.
3. Press ENTER to save the new setting.
NOTE:
The lower rate can be changed from 2–247 in steps
of 7. It is factory-set to 100.
Setting the Sensitivity of the Auto Header Height Control (New Holland CR/CX Series)
The sensitivity adjustment controls the distance the cutterbar must travel up or down before the auto header height
control (AHHC) reacts and raises or lowers the feeder house. When the sensitivity is set to maximum, only small
changes in ground height are needed to cause the feeder house to raise or lower. When the sensitivity is set to
minimum, large changes in the ground height are needed to cause the feeder house to raise or lower.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
NOTE:
For New Holland CR models 6.80, 6.90, 7.90, 8.90, 9.90, and 10.90, refer to 3.8.16 New Holland Combines (CR
Series—Model Year 2015 and Later), page 271.
CAUTION
Check to be sure all bystanders have cleared the area.
1003627
Figure 3.473: New Holland Combine Display
1. Engage threshing and feeder house.
2. Select HEIGHT SENSITIVITY on the combine
display screen.
3. Use the + or – buttons to change the setting to 200.
4. Press ENTER to save the new setting.
NOTE:
The sensitivity can be changed from 10–250 in steps
of 10. It is factory-set to 100.
OPERATION
