MacDon FlexDraper FD140 - Lowering Float Module Feed Deck Pan

214683 479 Revision A
5.11 Lowering Float Module Feed Deck Pan
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Start combine, raise header fully, and engage header lift cylinder locks.
2. Stop engine and remove key.
1020537
A
B
B
A

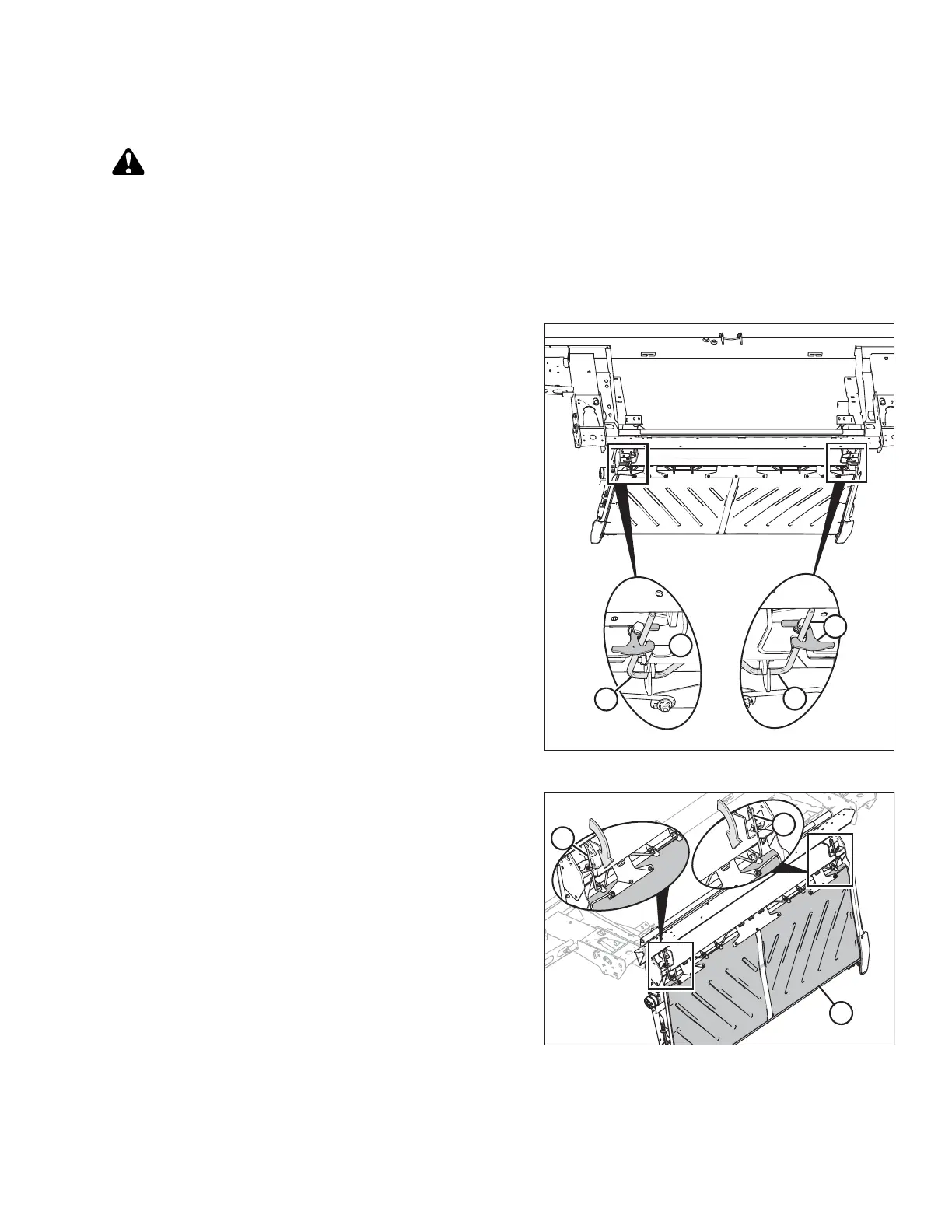

Figure 5.173: Feed Deck Pan (Rear View)
3. Rotate latches (A) to unlock handle (B).
NOTE:
Parts have been removed from illustration at right for
clarity.
1020539
A
B
B
Figure 5.174: Underside of Feed Deck Pan
4. Hold pan (A) and rotate handles (B) downward to
release pan.
