3.8.13 CLAAS 500 Series Combines
Calibrating the Auto Header Height Control (CLAAS 500 Series)
For best performance of the auto header height control (AHHC), perform these procedures with the center-link set
to D. When setup and calibration are complete, adjust the center-link back to desired header angle. Refer to 3.7.5
Header Angle, page 81.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
NOTE:
If header float is set too light, it can prevent calibration of AHHC. You may need to set the float heavier for
calibration procedure so header doesn’t separate from the float module.
1. Ensure center-link is set to D.
1010067
A
B
C

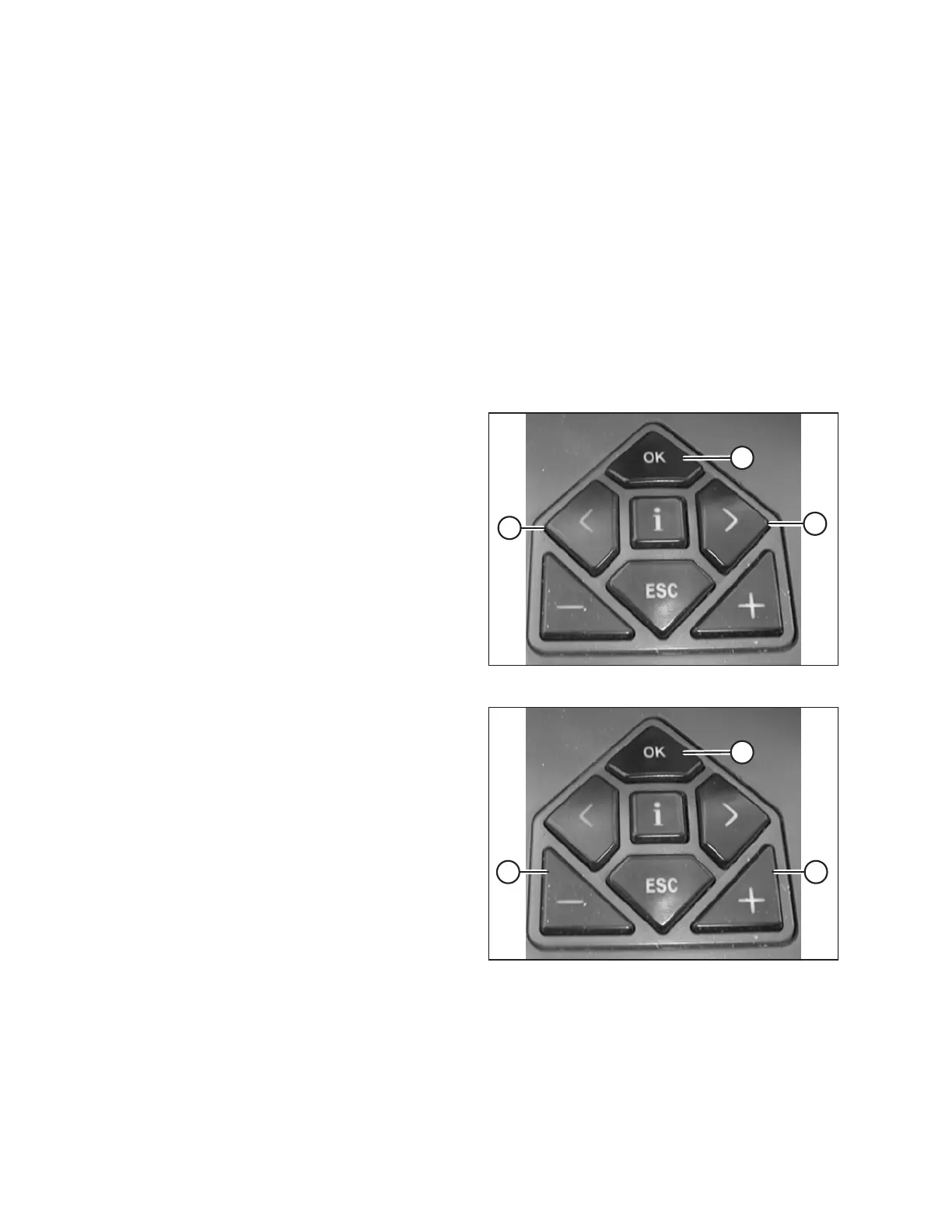

Figure 3.416: CLAAS Combine Controls
2. Use the < key (A) or > key (B) to select AUTO
HEADER, and press the OK key (C). The E5 screen
displays whether the automatic header height is on
or off.
1003749
A B
C
Figure 3.417: CLAAS Combine Controls
3. Use the – key (A) or the + key (B) to turn the AHHC on,
and press the OK key (C).
4. Engage the threshing mechanism and the header.
