214683 488 Revision A
5.14.3 Adjusting Draper Tension
WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.

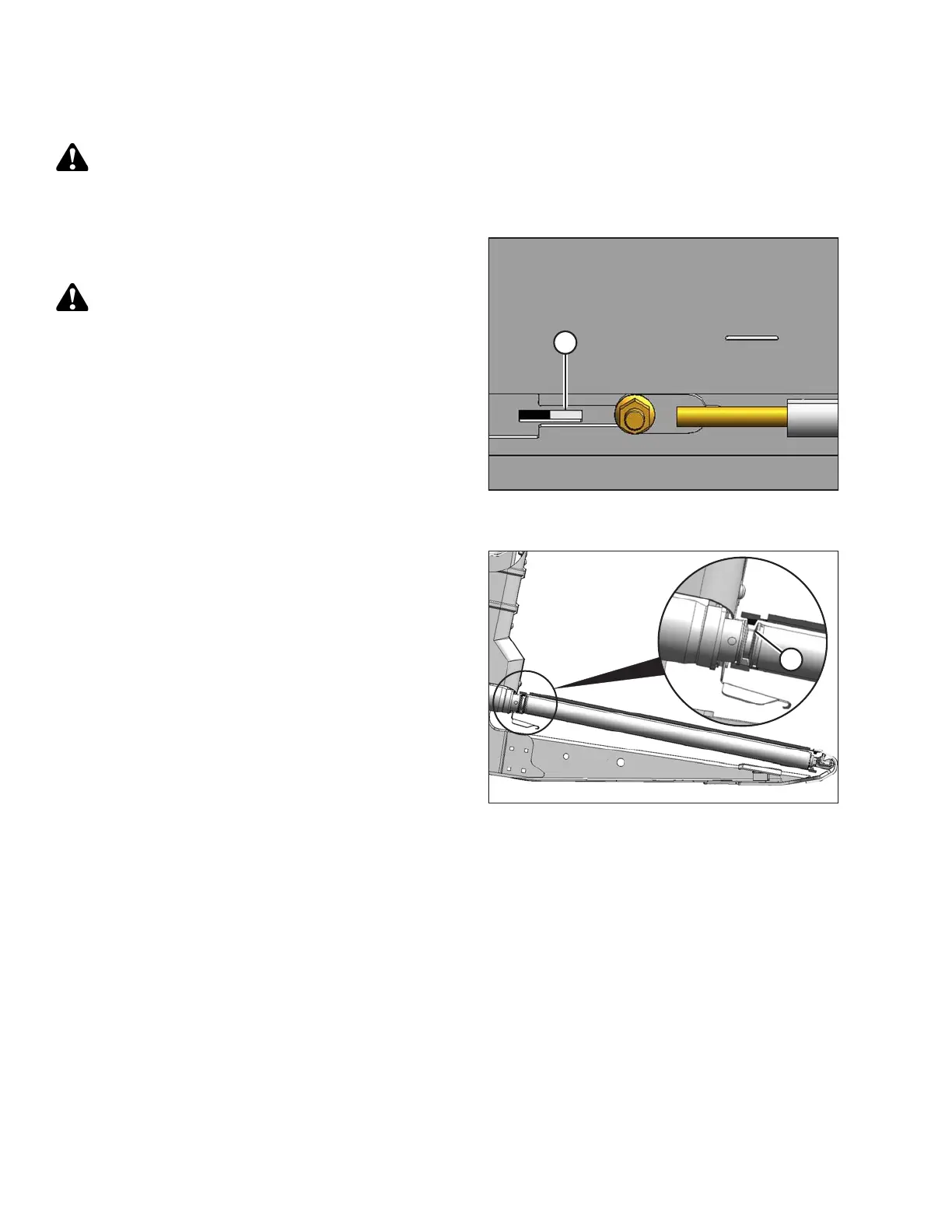

Figure 5.188: Left Side Tension Adjuster Shown
– Right Side Opposite
1. Ensure the white indicator bar (A) is at the halfway point
in the window.
WARNING
Check to be sure all bystanders have cleared the area.
2. Start the engine and fully raise the header.
3. Shut down the combine and remove the key from the
ignition.
4. Engage the header safety props.
Figure 5.189: Drive Roller
5. Ensure the draper guide (the rubber track on the
underside of the draper) is properly engaged in the
groove (A) on the drive roller.
MAINTENANCE AND SERVICING
