214683 475 Revision A

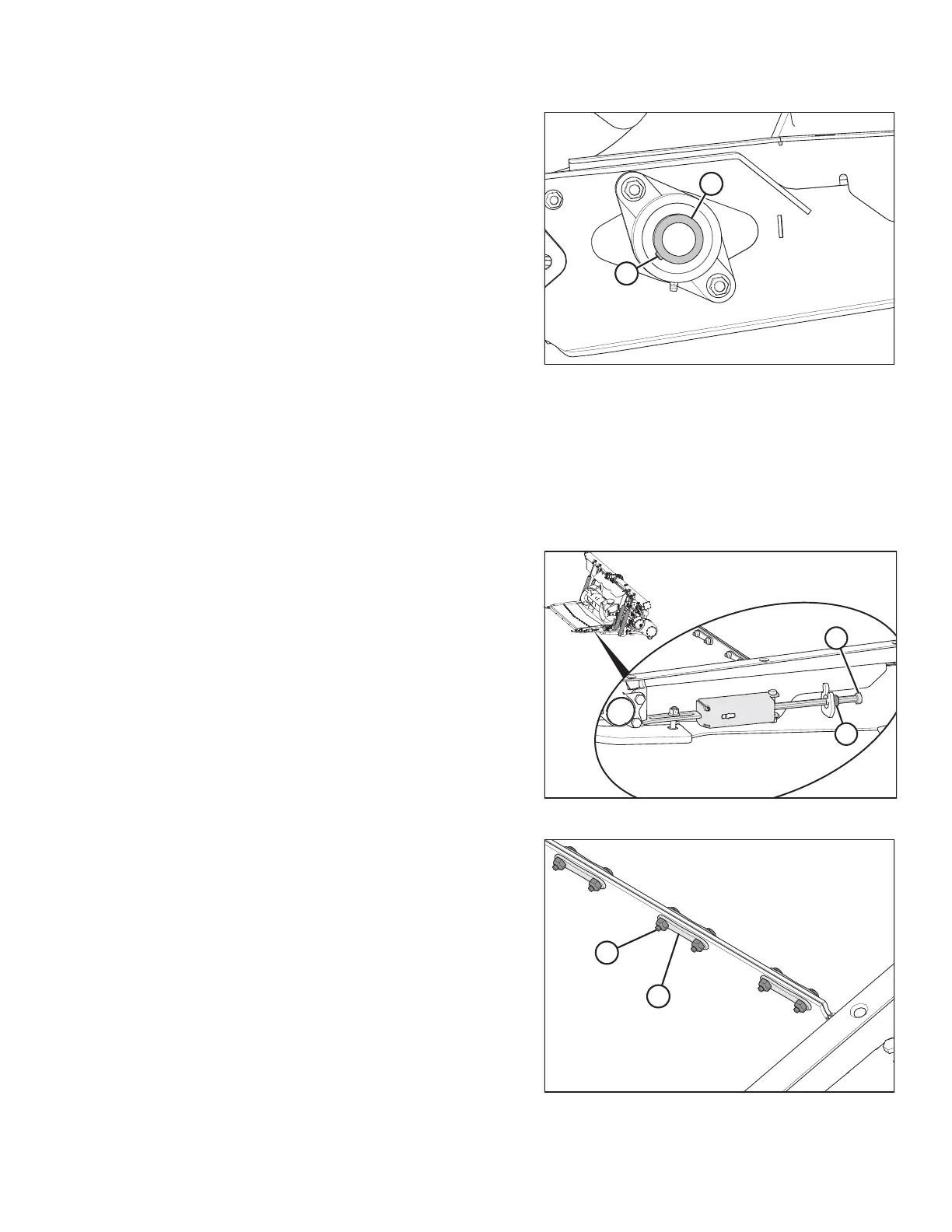

Figure 5.162: Feed Draper Drive Roller Bearing
2. Install bearing lock collar (A) onto the shaft.
3. Using a hammer and punch, tap the bearing lock in the
direction of auger rotation to lock.
4. Tighten bearing lock setscrew (B).
5. Tension the feed draper. Refer to 5.10.2 Adjusting Feed
Draper Tension, page 468.
5.10.4 Feed Draper Idler Roller
This roller is non-powered on the feed draper.
Removing Feed Draper Idler Roller
1. Engage the feeder house safety props.
Figure 5.163: Feed Draper Tensioner
2. Loosen jam nut (A) and turn bolt (B) counterclockwise
to release the draper tension. Repeat at the
opposite side.
Figure 5.164: Draper Connector
3. Remove nuts and screws (A), and remove the draper
connector straps (B).
4. Open feed deck pan.
MAINTENANCE AND SERVICING
