Storing the Tow-Bar

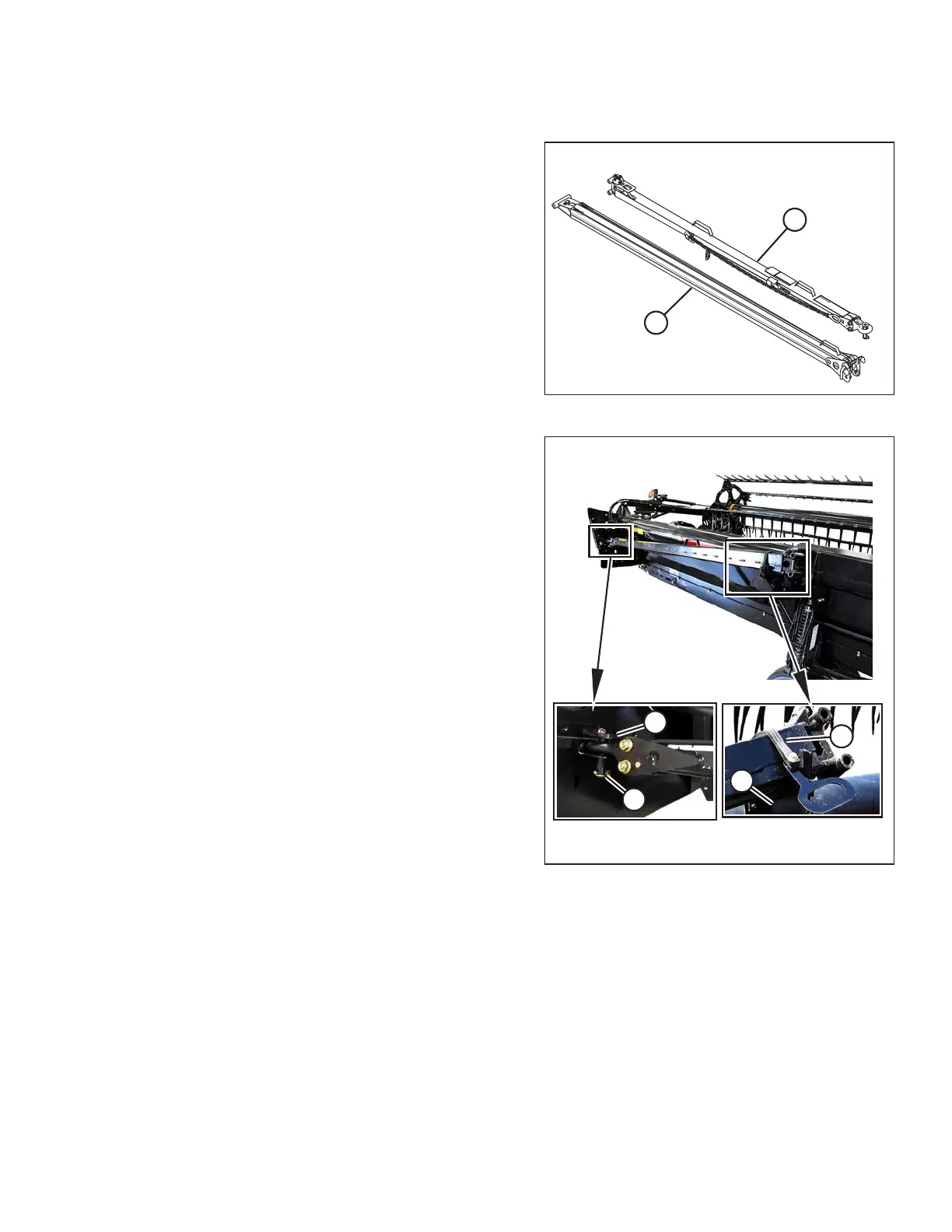

Figure 3.517: Tow-Bar Assembly
The tow-bar consists of two sections, an inner half (A) and
an outer half (B), to make storage and handling easier.
Figure 3.518: Tow-Bar Storage – Left Side
1. Place the inner end of the outer half of the tow-bar into
the cradle (A) on the left side of the header backtube.
2. Secure clevis/pintle end of the tow-bar in support (B) on
the endsheet using hitch pin (C). Secure with lynch pin.
3. Install the rubber strap (D) on the cradle (A).
