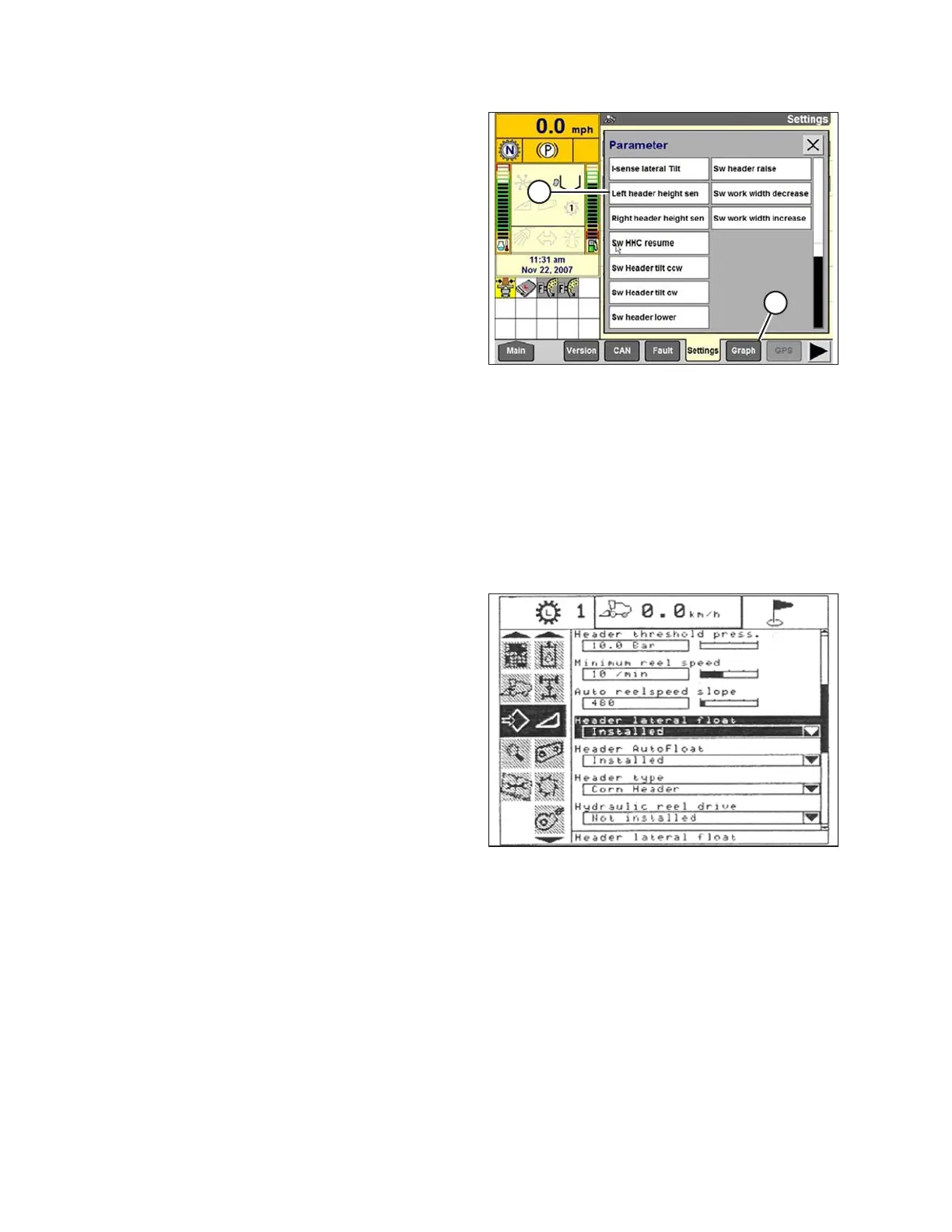

Figure 3.464: New Holland Combine Display
9. Select LEFT HEADER HEIGHT SEN (A), and then
select GRAPH button (B). The exact voltage is
displayed at the top of the screen.
10. Raise and lower the header to see the full range of
voltage readings.
11. If the sensor voltage is not within the low and high
limits, or if the range between the low and high limits is
insufficient, adjust the voltage limits. Refer to Adjusting
Voltage Limits: One-Sensor System, page 131.
Setting up Auto Header Height Control (New Holland CR/CX Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
NOTE:
For New Holland CR models 6.80, 6.90, 7.90, 8.90, 9.90, and 10.90, refer to 3.8.16 New Holland Combines (CR
Series—Model Year 2015 and Later), page 271.
Figure 3.465: New Holland Combine Display
1. Select HEADER LATERAL FLOAT on the combine
display, and press ENTER.
2. Use the up and down navigation keys to move between
options, and select INSTALLED.
