MacDon FlexDraper FD140 - Installing Driveline Guard

214683 416 Revision A
5.6.4 Installing Driveline Guard
1001398
A
B

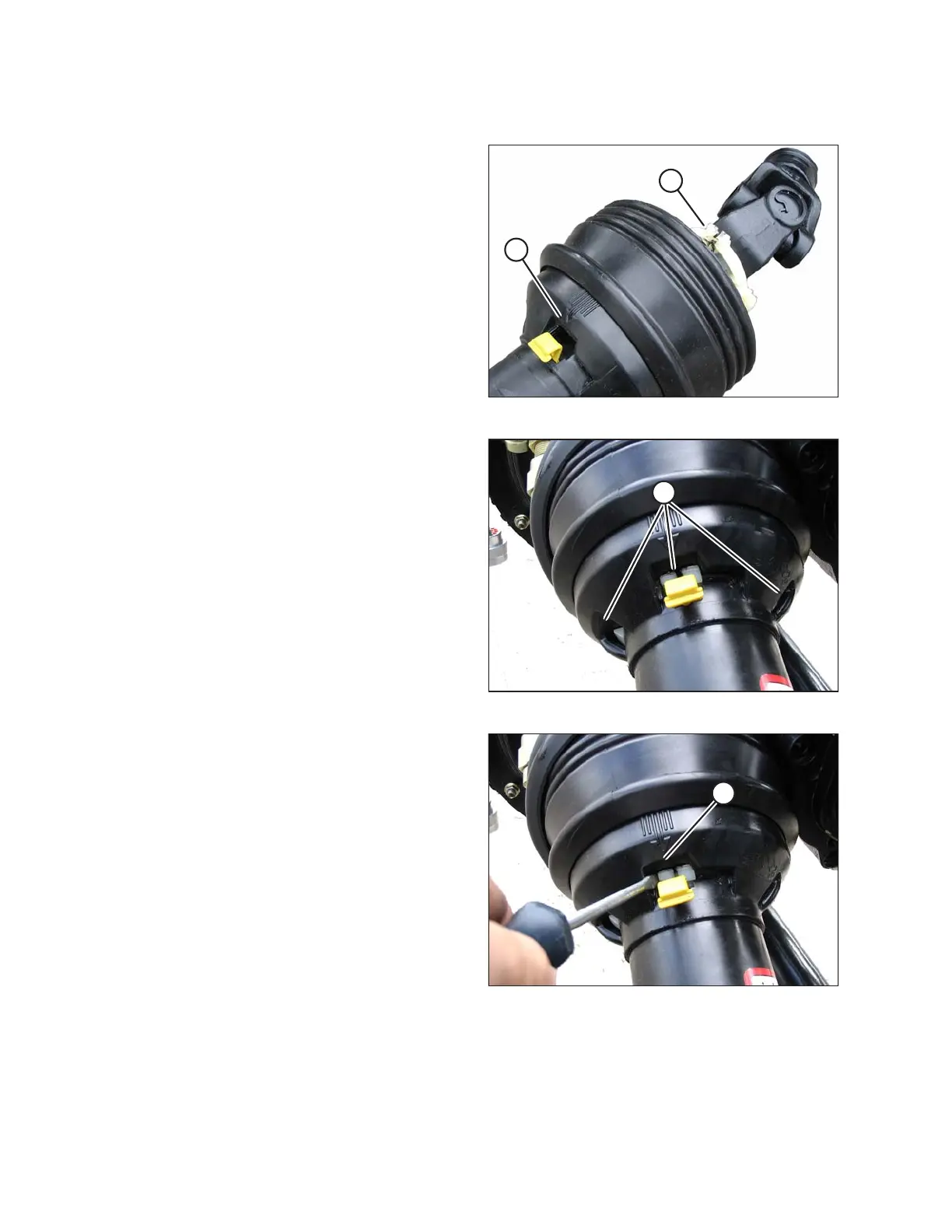

Figure 5.41: Driveline Guard
1. Slide the guard onto the driveline, and line up the
slotted lug on the locking ring (A) with the arrow (B) on
the guard.
1001399
A
Figure 5.42: Driveline Guard
2. Push the guard onto the ring until the locking ring is
visible in the slots (A).
1001401
A
Figure 5.43: Driveline Guard
3. Use a slotted screwdriver to rotate ring (A) clockwise
and lock ring in guard.
MAINTENANCE AND SERVICING
