214683 98 Revision A
15. Recheck voltage range Y and ensure it is still within the
range specified. Adjust if required.
Replacing Reel Height Sensor
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.

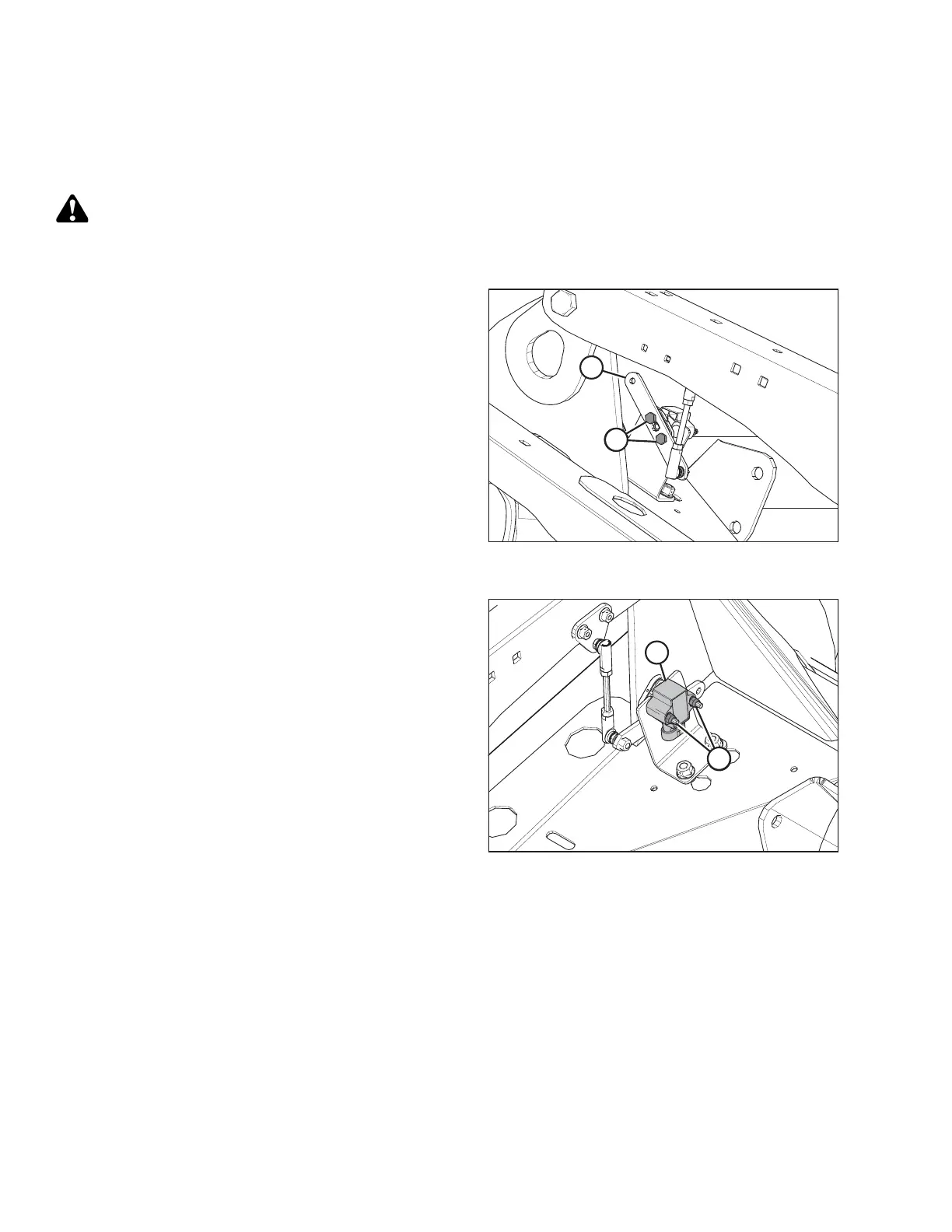

Figure 3.102: Reel Height Sensor – Right
Reel Arm
1. Start engine and lower reel fully.
2. Stop engine and remove key.
3. Disconnect sensor from harness.
4. Remove two hex head bolts (A) from sensor arm (B).
Retain hardware for reinstallation.
Figure 3.103: Reel Height Sensor – Right
Reel Arm
5. Remove two nyloc nuts and bolts (A) from reel height
sensor and remove sensor (B).
6. Install new sensor (B) in sensor bracket and attach
using retained bolts (A) and nyloc nuts. Torque bolts (A)
to 2–3 Nm (17–27 lbf·in.).
OPERATION
