214683 413 Revision A
5.6.2 Installing Driveline
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
IMPORTANT:
If the combine output shaft splines match the float module input shaft splines, ensure the driveline is installed with
the longer guard at the float module gearbox end.
IMPORTANT:
Ensure the driveline length corresponds with the length specifications for your specific equipment. Refer to 2.2
Specifications, page 21.

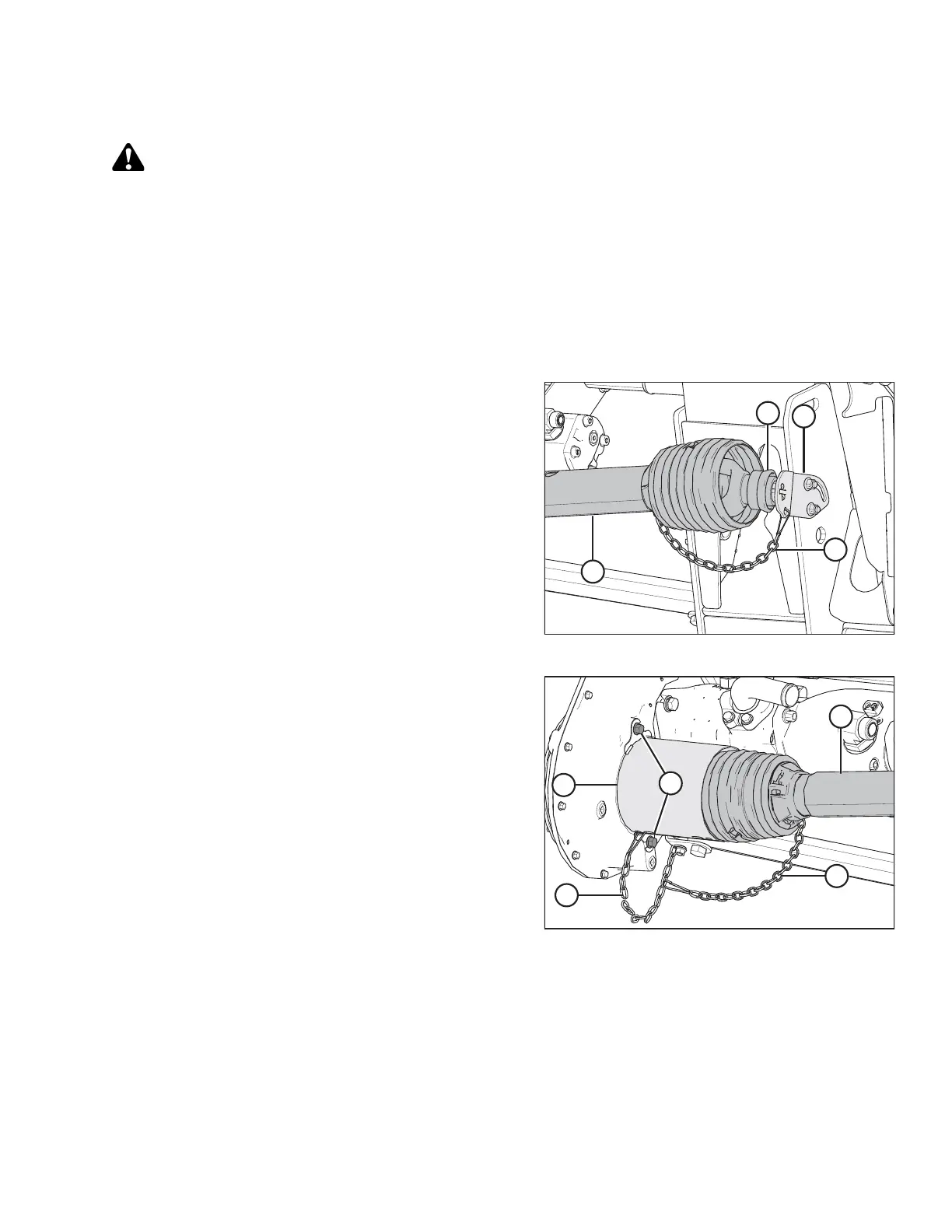

Figure 5.35: Combine End of Driveline
1. Position combine end of driveline (A) onto storage
support (B). Pull back the collar (C) on the driveline and
slide driveline onto support until it locks in place.
Release collar (C).
2. For drivelines equipped with safety chains, attach
chain (D) at combine end to driveline storage
support (B).
Figure 5.36: Float Module End of Driveline
3. Slide the shield (A) over the driveline (B).
4. Position driveline quick disconnect onto float module
gearbox shaft, pull back collar, and slide onto shaft until
it locks in place. Release the collar.
5. Position the shield (A) on the gearbox and secure with
bolts (C).
6. For drivelines equipped with safety chains, attach
chain (D) at module end to chain (E) on shield.
MAINTENANCE AND SERVICING
