214683 532 Revision A
5.16.4 Double-Reel U-Joint
The double-reel drive U-joint allows each reel to move independently of the other.
Lubricate the U-joint according to the specifications. Refer to 5.3.6 Lubrication and Servicing, page 390.
Replace the U-joint if severely worn or damaged. Refer to Removing Double-Reel U-Joint, page 532 .
Removing Double-Reel U-Joint
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Remove the drive cover. Refer to Removing Reel Drive Cover, page 526.

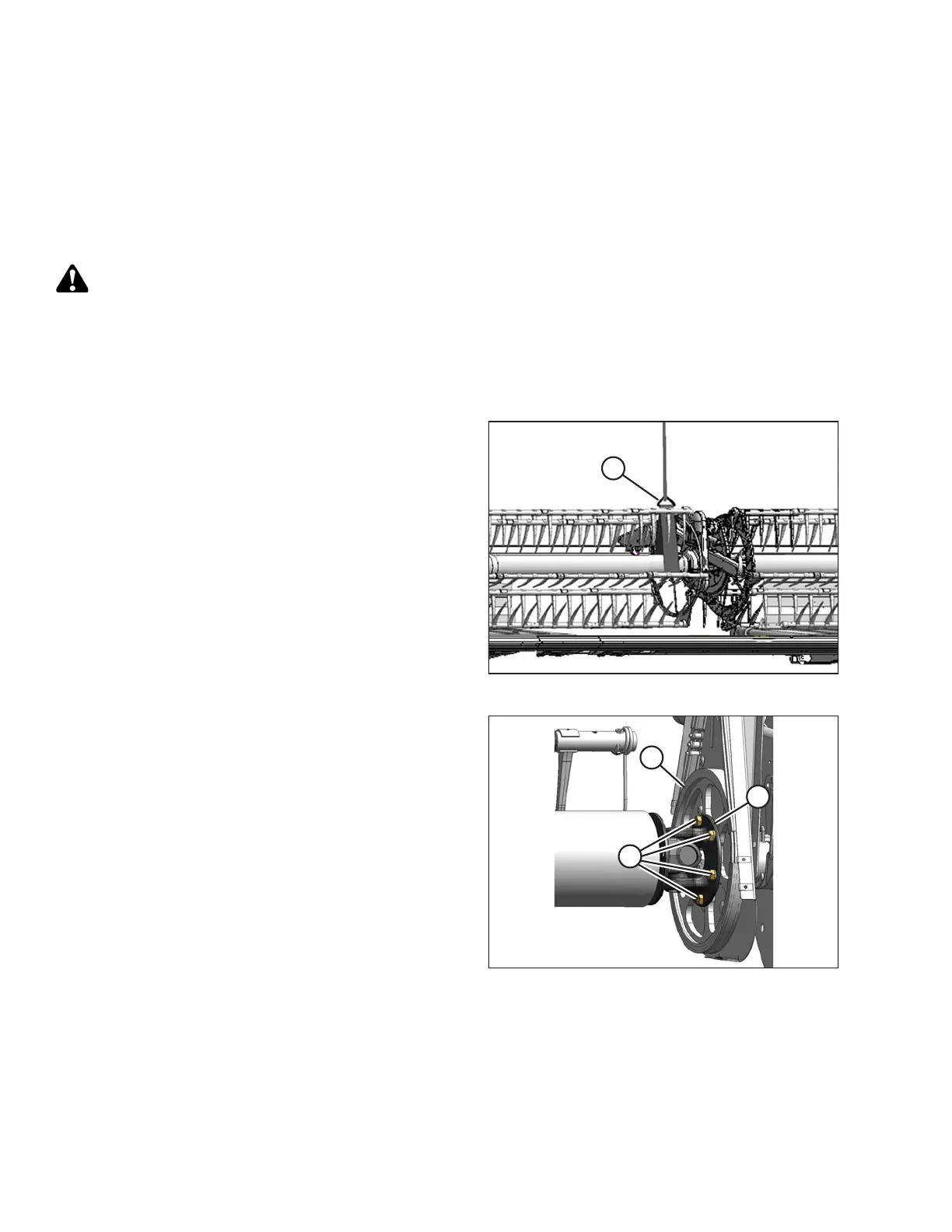

Figure 5.287: Supporting Reel
3. Support the inboard end of the right reel with a front end
loader and nylon slings (A) (or equivalent lifting device).
IMPORTANT:
Avoid damaging or denting the center tube by
supporting the reel as close to the end disc as possible.
Figure 5.288: U-Joint
4. Remove the six bolts (A) attaching U-joint flange (B) to
driven sprocket (C).
5. Remove the U-joint.
NOTE:
It may be necessary to move the right reel sideways so
that the U-joint can clear the tube.
MAINTENANCE AND SERVICING
