5.14.4 Adjusting Header Draper Tracking
The draper tracking is adjusted by aligning the drive and idler draper rollers.
CAUTION
To avoid personal injury, before servicing machine or opening drive covers, refer to 5.1 Preparing Machine
for Servicing, page 383.
NOTE:
The images shown in the following procedure are applicable to the left draper deck. Use opposite views for the right
draper deck.

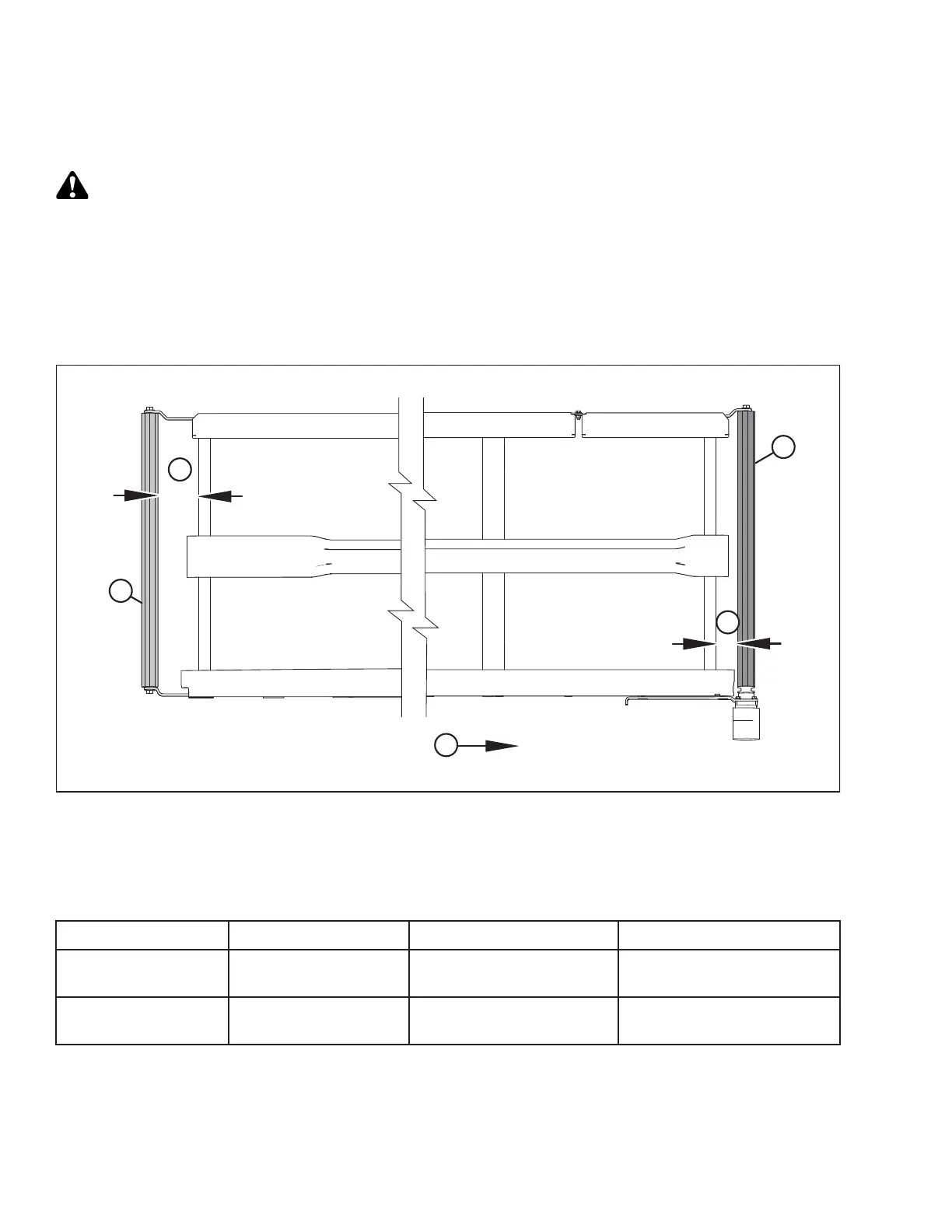

Figure 5.192: Draper Tracking Adjustments
A - Drive Roller B - Idler Roller
X - Drive Roller Adjust Y - Idler Roller Adjust Z - Draper Direction
1. Refer to the following table to determine which roller requires adjustment and which adjustments are
necessary.
Table 5.2 Header Draper Tracking
Tracking At Location Adjustment Method
Backward Drive roller Increase X
Tighten nut (E). Refer to Fig.
5.193, page 491
Forward Drive roller Decrease X
Loosen nut (E). Refer to Fig.
5.193, page 491
