5.17.2 Checking Axle Bolt Torque
If a transport system is installed, adhere to the following procedure for torquing the axle bolts:
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.

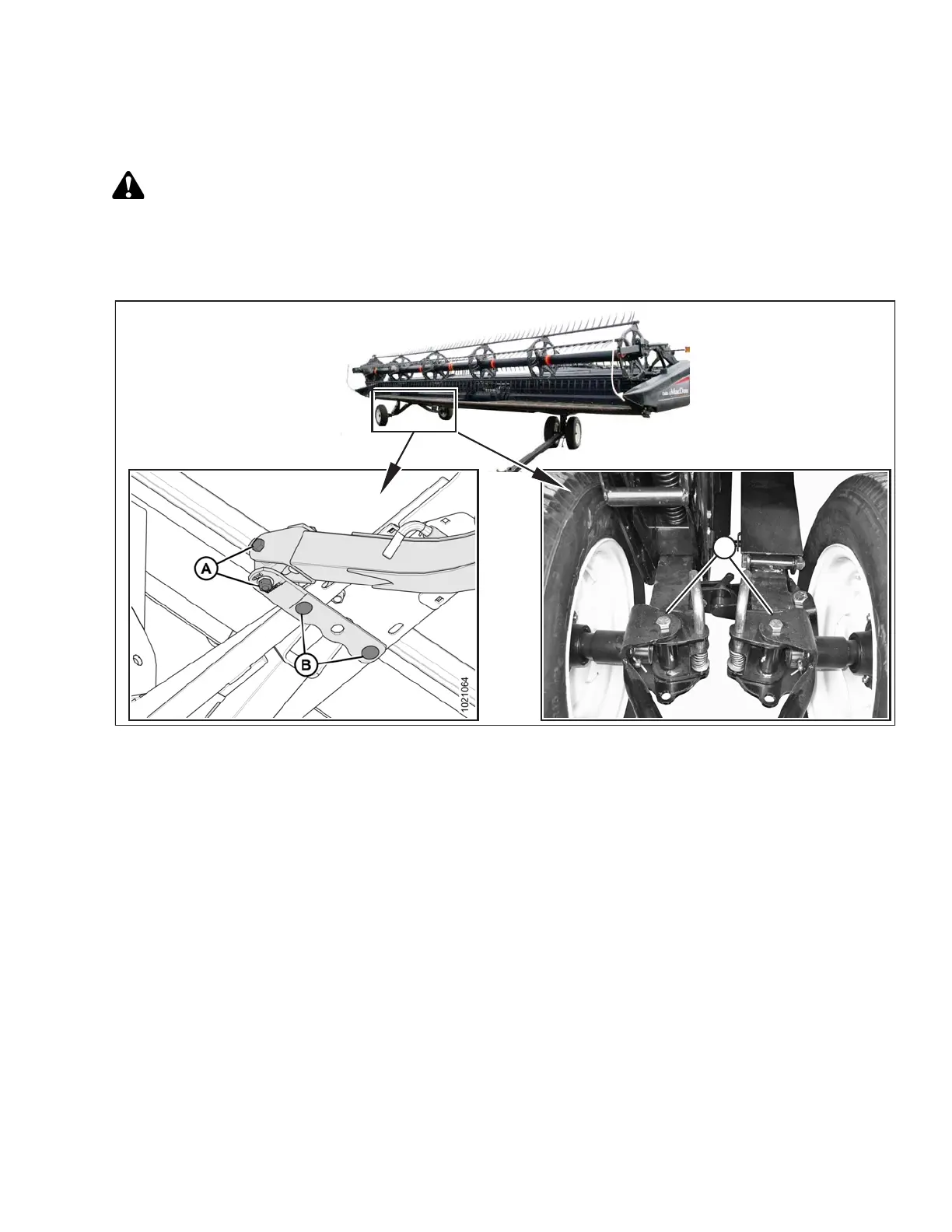

Figure 5.309: Axle Bolts
1. Check and tighten axle bolts DAILY until torque is maintained as follows:
• (A): 244 Nm (180 lbf·ft)
• (B): 203 Nm (150 lbf·ft)
• (C): 244 Nm (180 lbf·ft)
