MacDon FlexDraper FD140 - Converting from Ultra Narrow or Narrow Configuration to Wide Configuration

214683 320 Revision A
4.1.6 Converting from Ultra Narrow or Narrow Configuration to Wide
Configuration
One kit of MD #287031
48
is required to convert to this configuration. Two flighting plugs (MD #213084), two M6 hex
head bolts (MD #252703), and two M6 tee nuts (MD #197263) are recommended to close the flighting mounting
locations. These parts can be ordered from a MacDon Dealer.
1017421
1
2
A
A
A
A
3

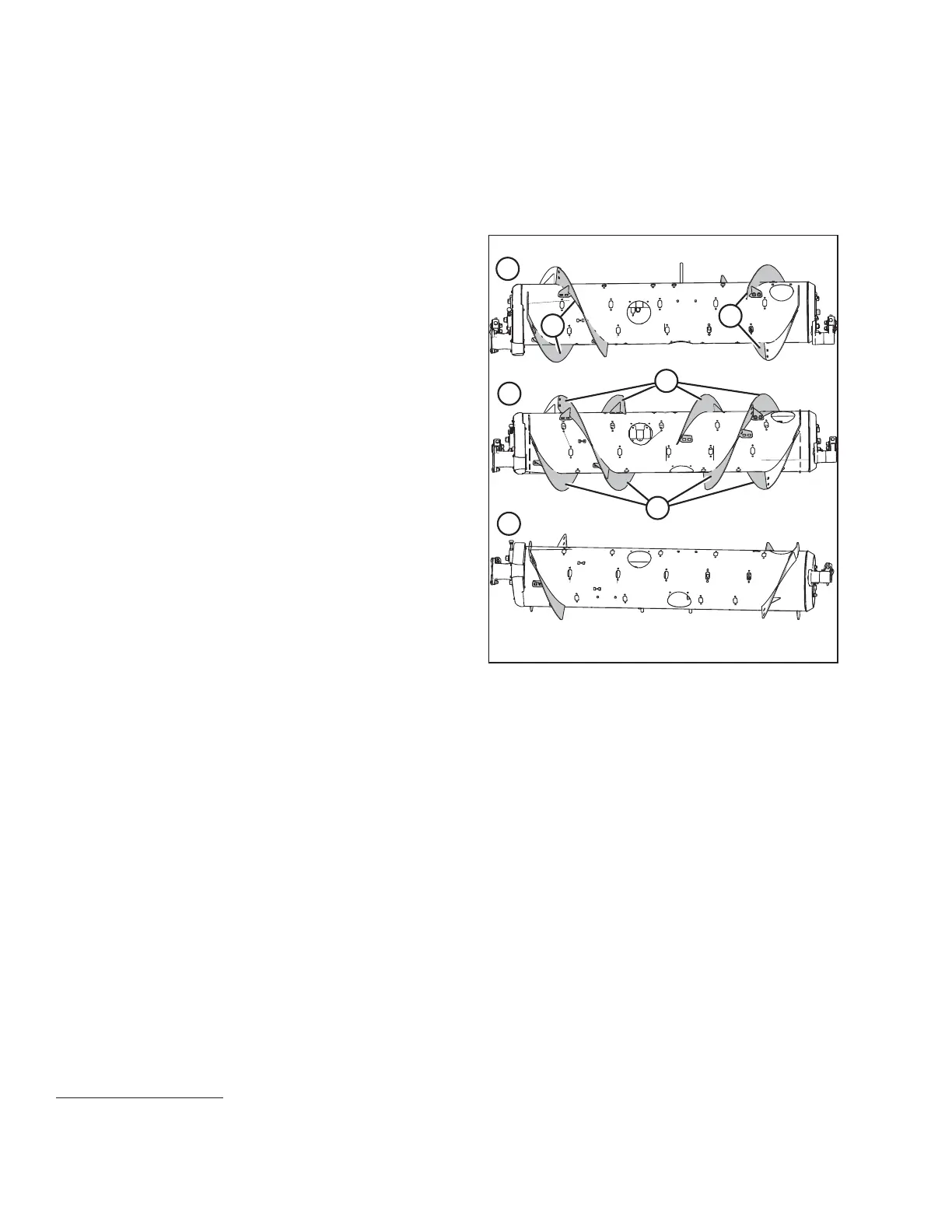

Figure 4.25: Auger Configurations (Rear View)
1 - Narrow Configuration 2 - Ultra Narrow Configuration
3 - Wide Configuration
The Narrow, Ultra Narrow, and Wide auger configurations
are shown at right. When converting from Narrow or
Ultra Narrow configuration to Wide configuration, you will
need to replace the existing flightings (A).
NOTE:
Some parts have been removed from the illustrations for
clarity.
1. If necessary to improve access and ease installation, remove float module from combine. For instructions, refer
to 4 Header Attachment/Detachment, page 307.
HEADER ATTACHMENT/DETACHMENT
48. MD #287031 contains wear-resistant flightings, and is available only through MacDon Parts.
