214683 319 Revision A

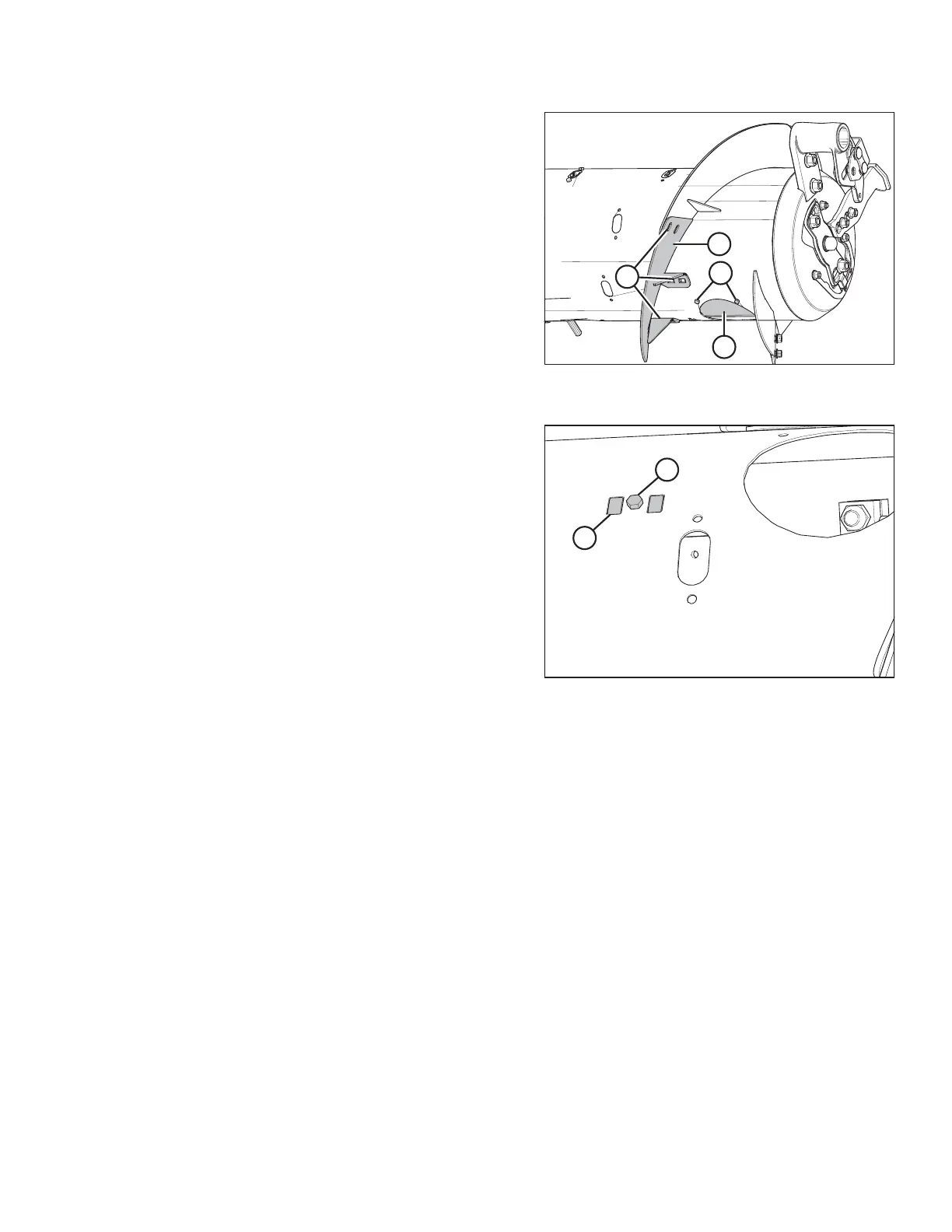

Figure 4.23: Right Side of Medium
Configuration
2. Remove bolts (A) and access cover (B). Retain for
reassembly.
3. Remove hardware from location (C), and remove
bolt-on flighting (D) from the feed auger.
Figure 4.24: Right Side of Wide Configuration
4. Install flighting slot plug (A) (MD #213084) in the
flighting slot from inside the auger. Secure with M6 hex
head bolts (B) (MD #252703) and tee nuts
(MD #197263).
5. Repeat above steps at the left side of the auger.
6. Install additional fingers. A total of 30 fingers are
recommended for this configuration. Refer to Installing
Feed Auger Fingers, page 431.
HEADER ATTACHMENT/DETACHMENT
