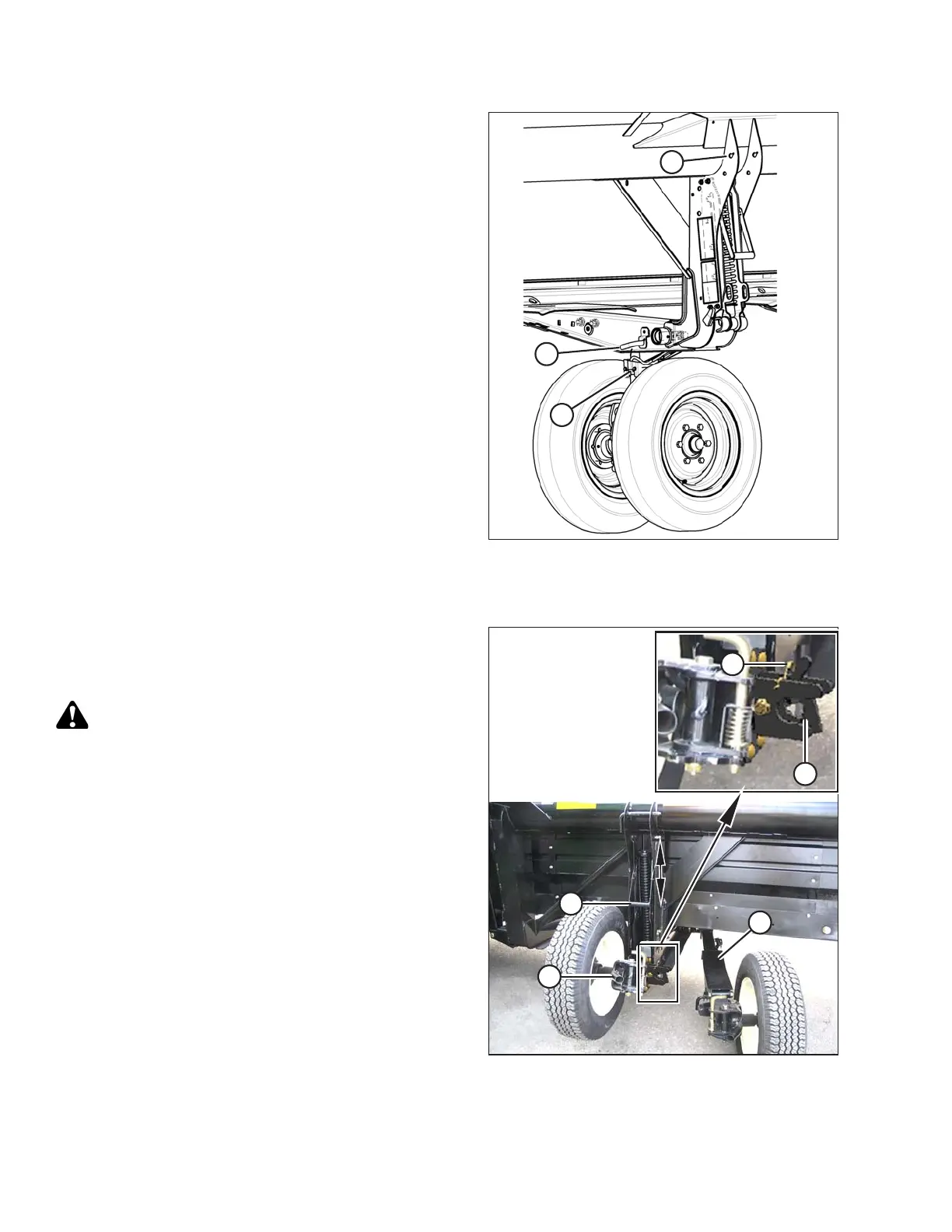

Figure 3.531: Left Front Wheels
7. Remove the pin (A) from storage at the top of the
leg (B).
8. Move and swivel the wheels clockwise until the
connector (C) is turned towards the front end of the
header.
9. Insert pin (A) and turn to lock.
10. Lower the header until the left wheels are just touching
the ground.
Moving Rear (Right) Wheels into Transport Position
Figure 3.532: Rear Wheels
1. Remove the hairpin (A) from the latch (B).
2. Lift the latch (B), disengage the right axle (C), and lower
to the ground.
CAUTION
Stand clear of wheels and release linkage carefully as
wheels will drop once the mechanism is released.
3. Pull handle (D) carefully to release the spring and lower
the wheel to the ground.
4. Lift the wheel and linkage with handle (E) and position
the linkage in the bottom slot.
5. Lower the handle (C) to lock.
