5.16 Reel System
The hydraulically driven reel motor drives the chain case that is attached between the reels on a double-reel
header.
5.16.1 Reel Drive Cover
Removing Reel Drive Cover
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1012795
A
B
C

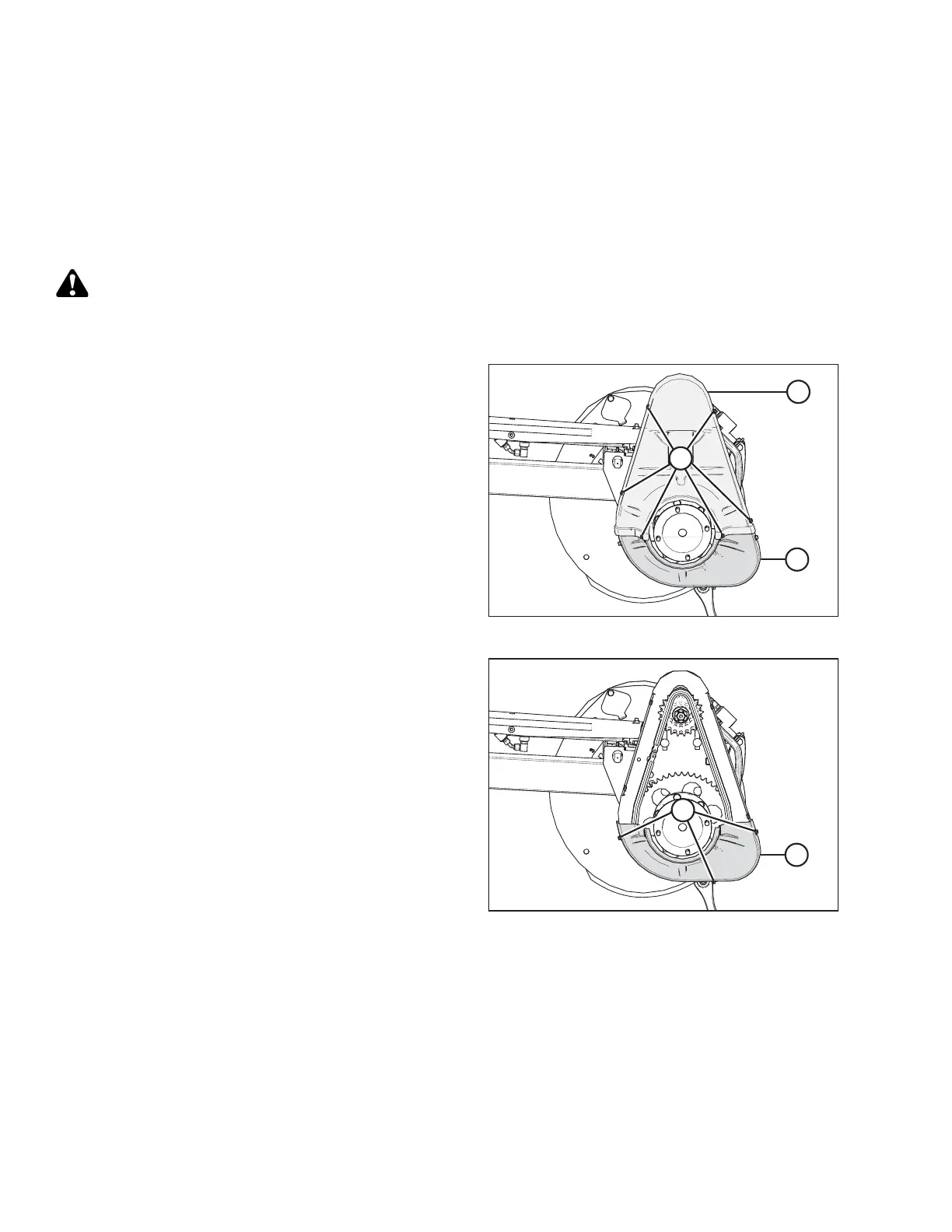

Figure 5.274: Drive Cover
1. Shut down the engine, and remove the key from the
ignition.
2. Remove six bolts (A) securing upper cover (B) to the
reel drive and lower cover (C).
1012796
A
B
Figure 5.275: Lower Drive Cover (Upper Cover
Removed)
3. Remove three bolts (A) and remove lower cover (B) if
necessary.
MAINTENANCE AND SERVICING
