214683 254 Revision A
Setting Cutting Height (CLAAS 600 and 700 Series)
CAUTION
Check to be sure all bystanders have cleared the area.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.

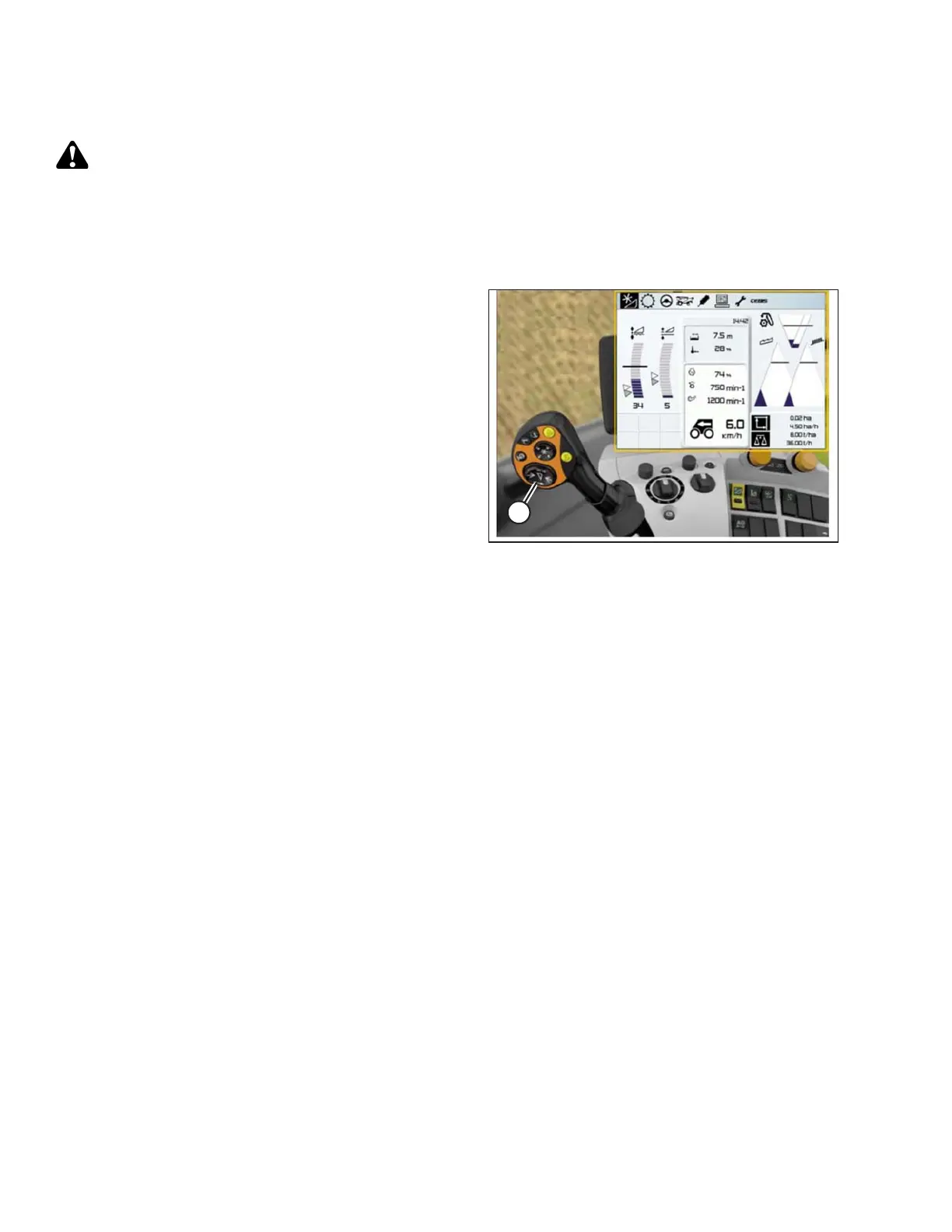

Figure 3.442: CLAAS Combine Display,
Console, and Control Handle
1. Lower the header to desired cutting height or ground
pressure setting. The float indicator box should be set
to 1.5.
2. Hold the left side of the header raise and lower
switch (A) until you hear a ping.
NOTE:
You can set two different cutting heights.
OPERATION
