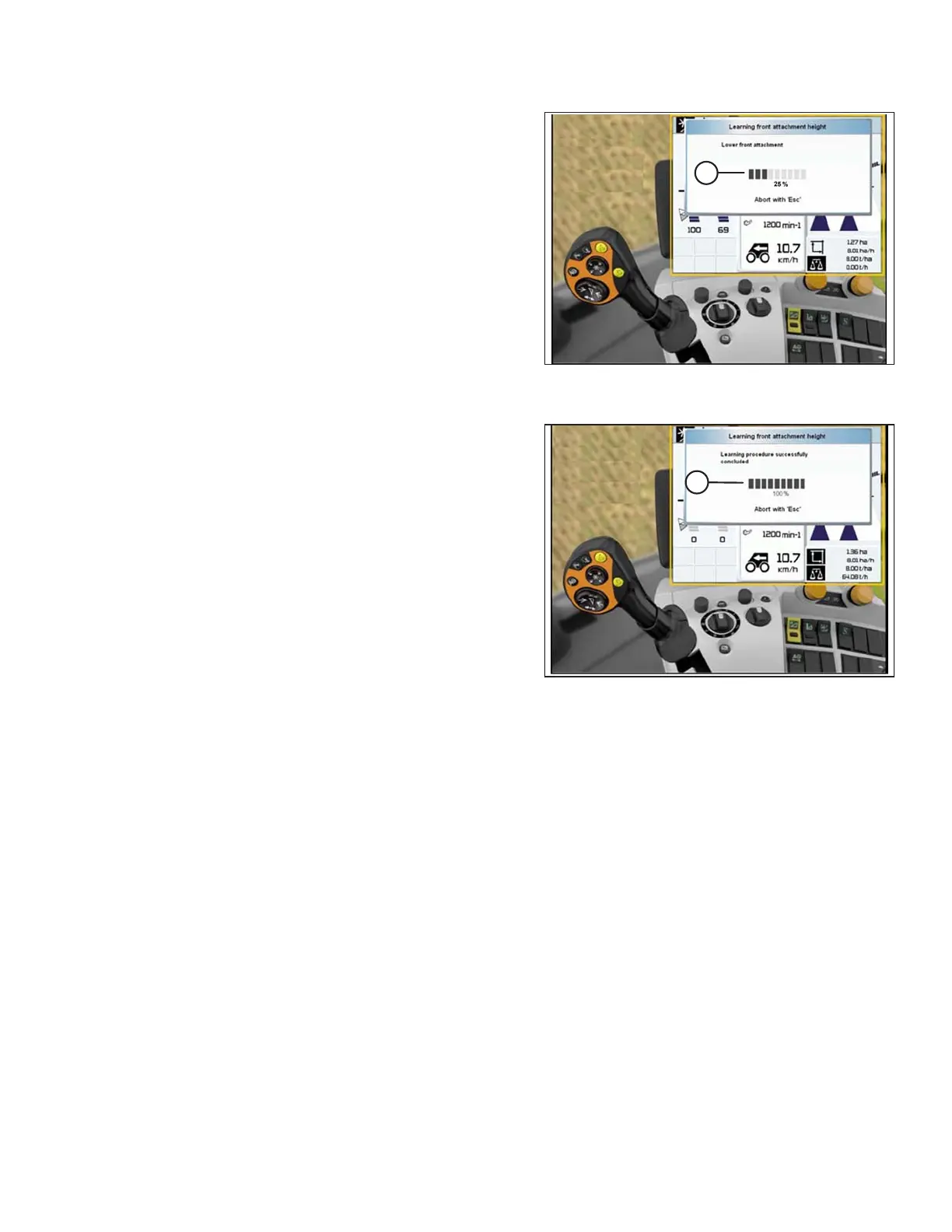

Figure 3.440: CLAAS Combine Display,
Console, and Control Handle
10. Fully raise the feeder house. The progress bar chart will
advance to 25% (A).
11. Fully lower the feeder house. The progress bar chart
will advance to 50%.
12. Fully raise the feeder house. The progress bar chart will
advance to 75%.
13. Fully lower the feeder house. The progress bar chart
will advance to 100%.
1003691
A
Figure 3.441: CLAAS Combine Display,
Console, and Control Handle
14. Ensure the progress bar chart displays 100% (A). The
calibration procedure is now complete.
NOTE:
If the voltage is not within the range of 0.5–4.5 V at any
time throughout the calibration process, the monitor will
indicate learning procedure not concluded.
NOTE:
If float was set heavier to complete ground calibration
procedure, adjust to recommended operating float after
the calibration is complete.
