214683 546 Revision A
6.2 Reel
6.2.1 Multi-Crop Rapid Reel Conversion Kit

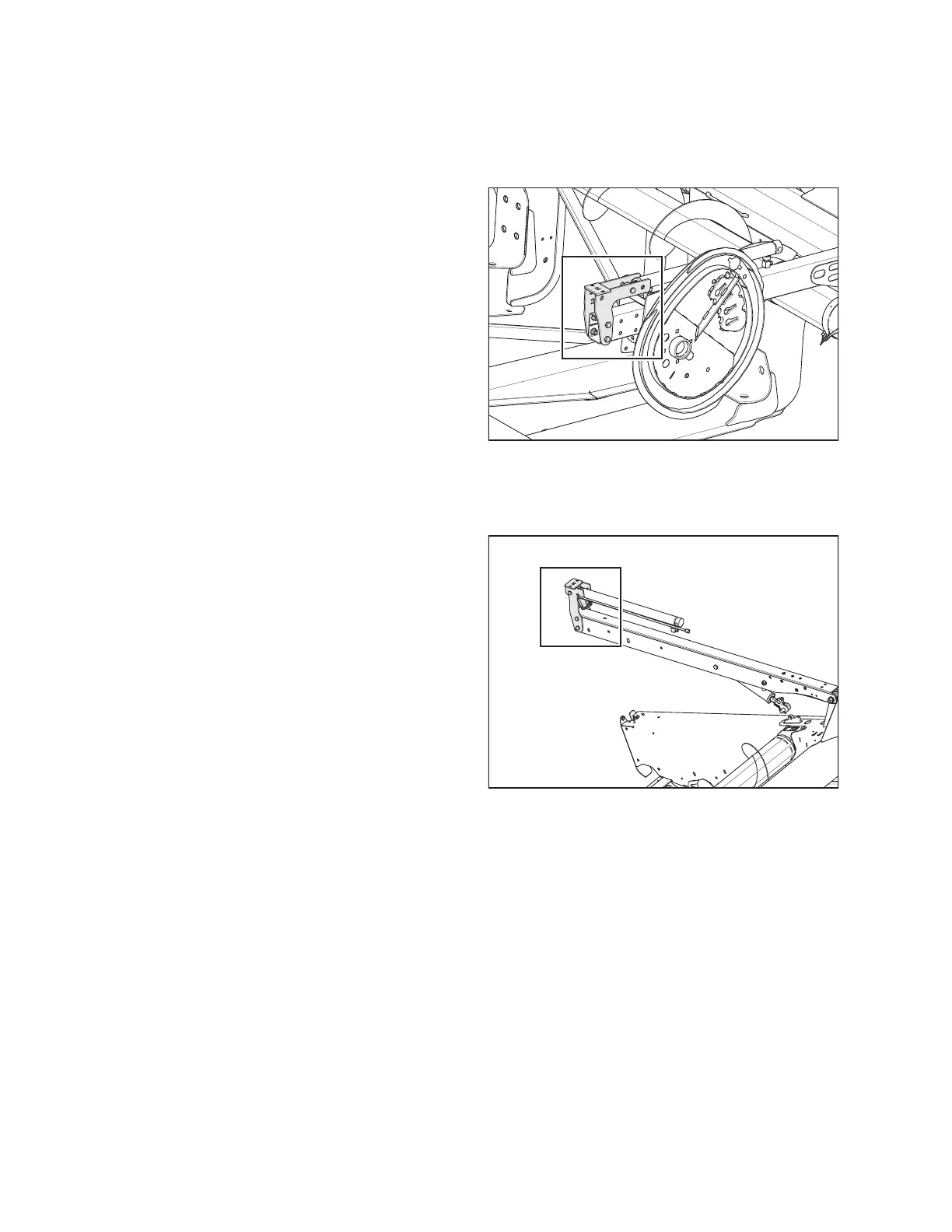

Figure 6.2: Center Arm – Left and Right Similar
For use on double reel headers only, the multi-crop rapid
reel conversion kit decreases the time required to change
the fore-aft cylinder position on the reel support arm from
the normal operating location to a farther aft location that
minimizes crop disturbance. The kit also allows the reel
fore-aft cylinders to be quickly moved to the normal
operating location.
MD #B6590
NOTE:
The Multi-Crop Rapid Reed Conversion kit is not available
for European-configured FD1 Series headers.
6.2.2 Reel Arm Extension Kit (European-configured Headers Only)
Figure 6.3: Right Arm – Center and Left Arms
Similar (Parts Hidden for Illustration Purposes)
This kit provides extensions for the outer reel support arms
on a European-configured FD1 Series header. These
extensions provide the additional reel arm length required to
properly install a vertical knife mount kit (MD #B5757,
MD #B6572) onto the header. The Reel Arm Extension kit
also includes reel fore-aft brackets allowing quick reel
repositioning from the reel’s most forward position to its
most rearward position.
MD #B5691
OPTIONS AND ATTACHMENTS
