Greasing Procedure
Greasing points are identified on the machine by decals showing a grease gun and grease interval in hours of
operation. Grease point layout decals are located on the header and on the right side of the float module.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

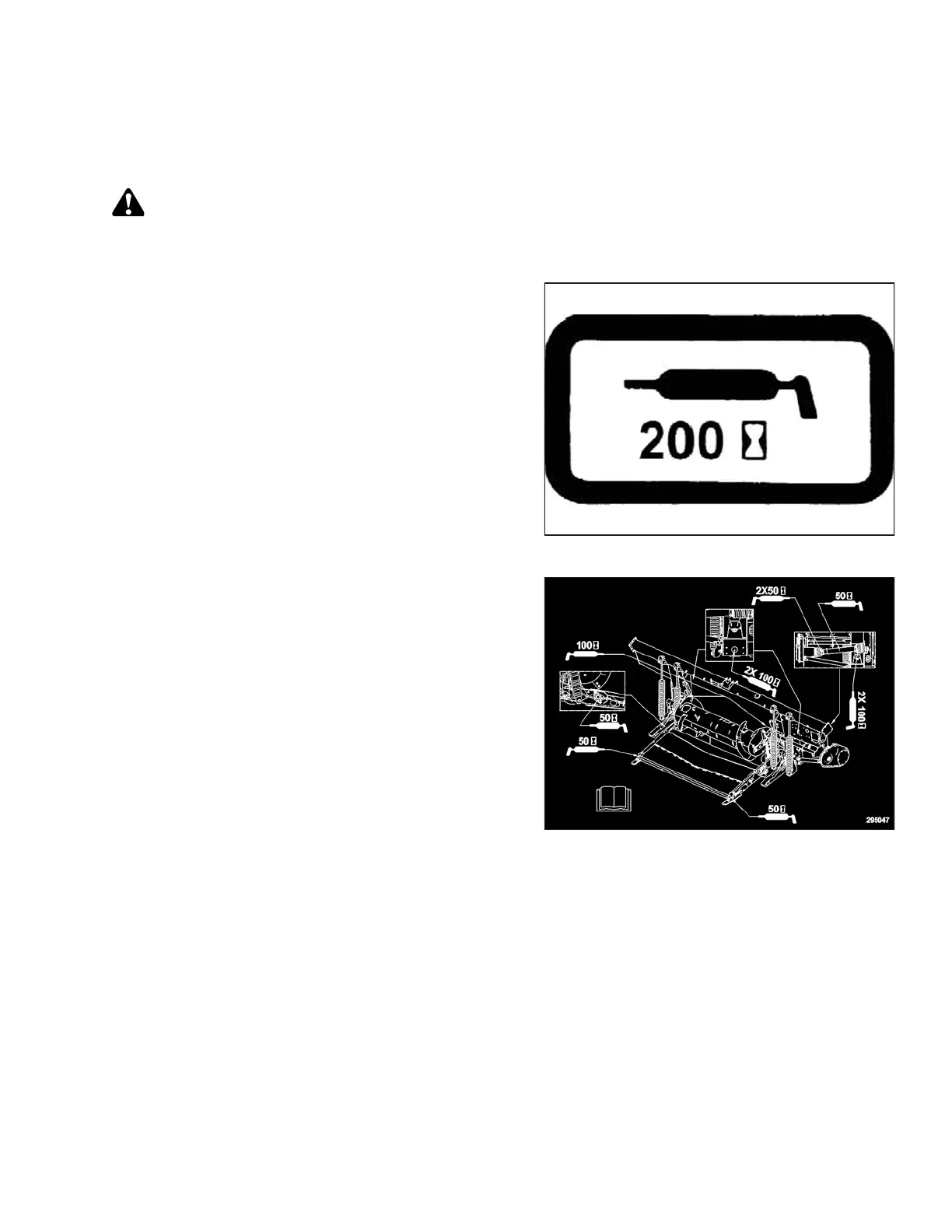

Figure 5.13: Greasing Interval Decal
Refer to inside back cover for recommended lubricants.
Log hours of operation and use the Maintenance Record
provided to keep a record of scheduled maintenance. Refer
to 5.3.1 Maintenance Schedule/Record, page 385.
Figure 5.14: FM100 Grease Point Layout Decal
1. Wipe grease fitting with a clean cloth before greasing to
avoid injecting dirt and grit.
IMPORTANT:
Use clean, high-temperature, extreme-pressure
grease only.
2. Inject grease through fitting with grease gun until
grease overflows fitting (except where noted).
3. Leave excess grease on fitting to keep out dirt.
4. Replace any loose or broken fittings immediately.
5. Remove and thoroughly clean any fitting that will not
take grease. Also clean lubricant passageway. Replace
fitting if necessary.
