Attaching Tow-Bar
The tow-bar consists of two sections which make storage and handling easier.

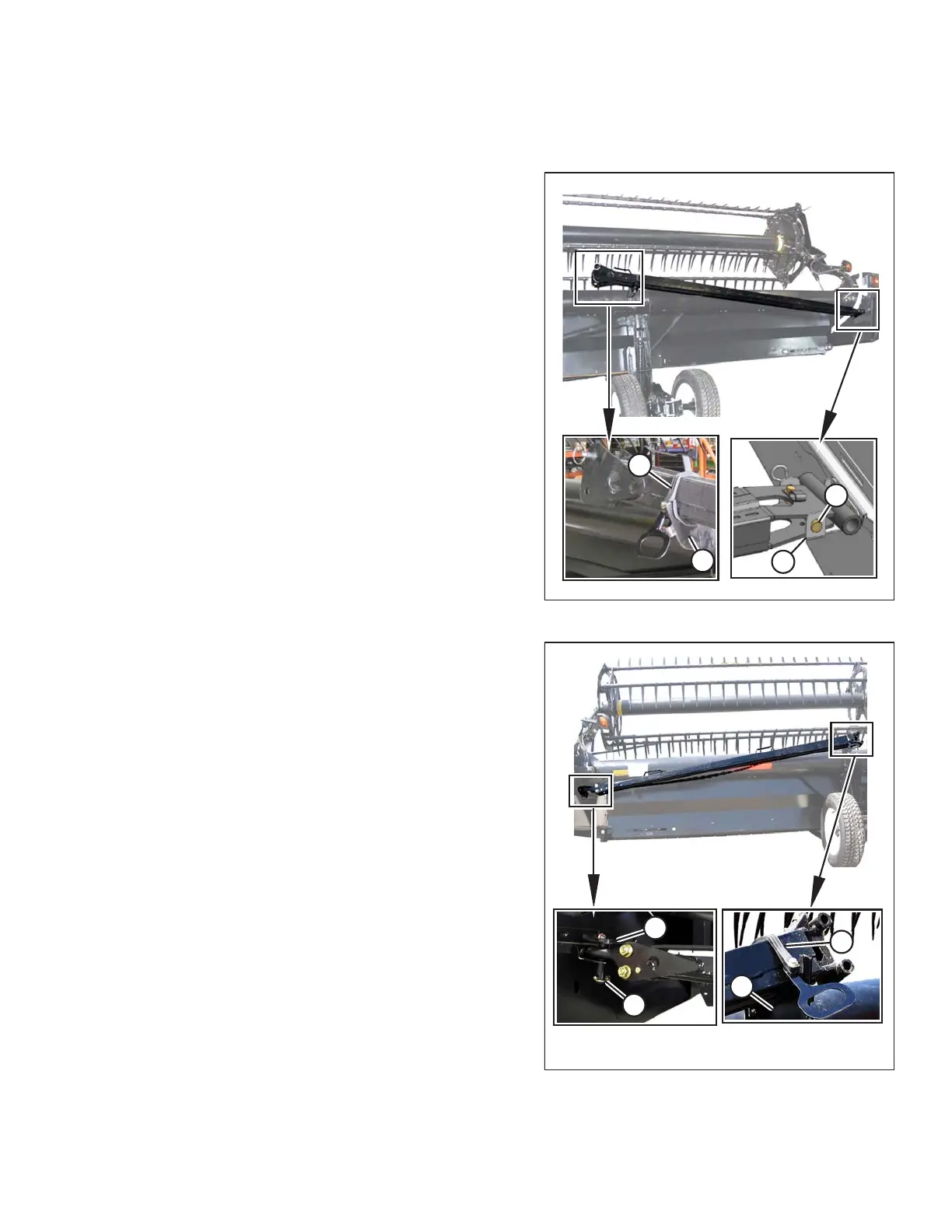

Figure 3.538: Tow-Bar Removal – Right Side
1. Unhook the rubber strap (D) from the cradle (A) on the
right side of the header.
2. Remove the clevis pin (C) and detach the tube end from
the support (B).
3. Replace the clevis pin (C).
4. Lift the inner half of the tow-bar off the header and place
it near the left side of the header.
Figure 3.539: Tow-Bar Removal – Left Side
5. Unhook the rubber strap (D) from the cradle (A) on the
left side of the header.
6. Remove the hitch pin (C) from the support (B), and
remove the tow-bar.
7. Install the rubber strap (D) on the cradle (A).
