214683 197 Revision A
• HEADER PITCH (G)
1018476
A

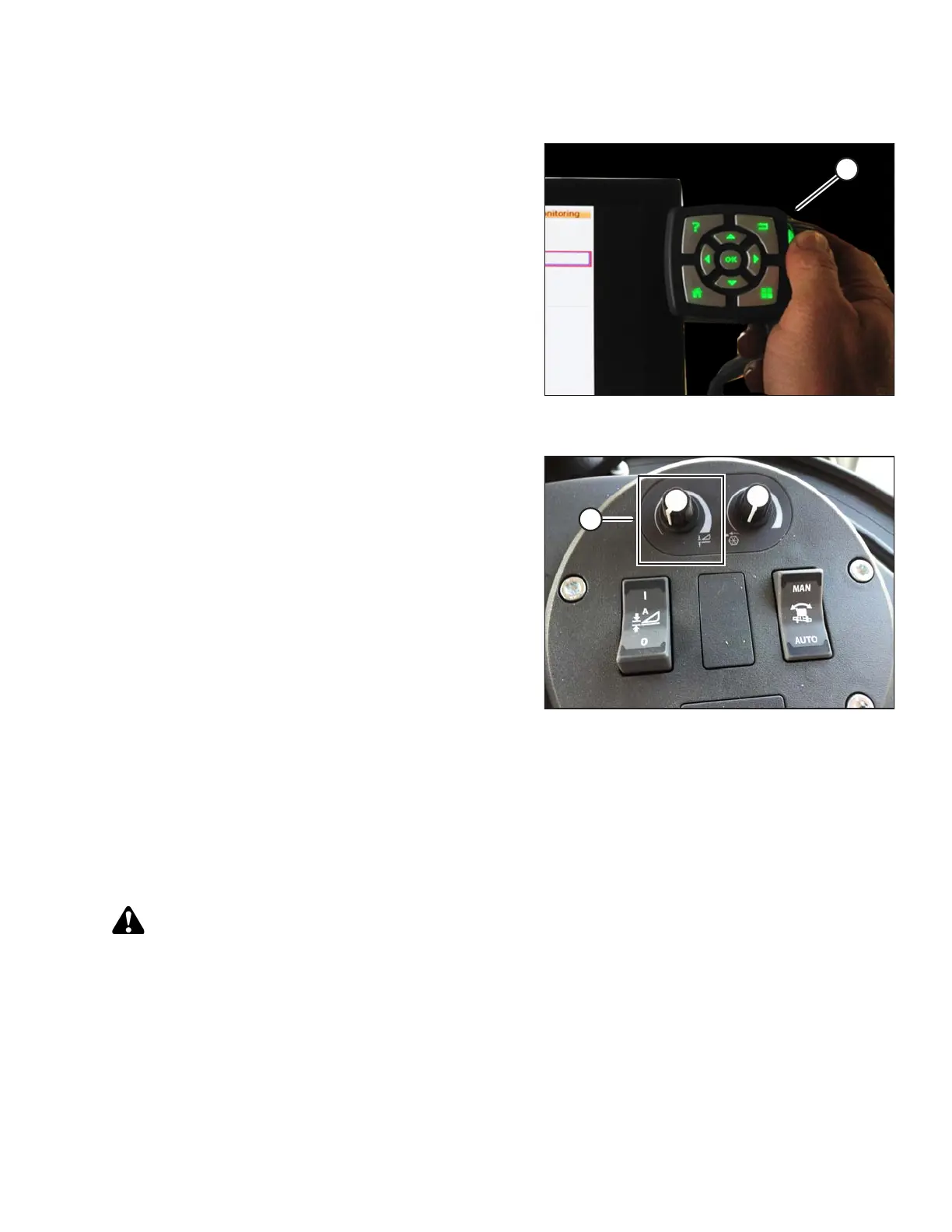

Figure 3.311: Adjustment Wheel on Right Side
of Tyton Terminal
3. Touching a field opens the on-screen keyboard so that
values can be adjusted. Enter the new value and touch
the green check mark when complete.
NOTE:
The scroll wheel (A) is located on the right side of the
Tyton terminal.
1018469
A
Figure 3.312: Header Control Cluster
NOTE:
HEADER HEIGHT SETPOINT control dial (A) is on the
header control cluster.
3.8.9 John Deere 60 Series Combines
Checking Voltage Range from the Combine Cab (John Deere 60 Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
CAUTION
Check to be sure all bystanders have cleared the area.
1. Position the header 150 mm (6 in.) above the ground, and unlock the float.
