214683 466 Revision A
5.10 Feed Draper
The feed draper is located on the FM100 Float Module and conveys cut crop to the auger.
CAUTION
To avoid personal injury, before servicing machine or opening drive covers, refer to 5.1 Preparing Machine
for Servicing, page 383.
5.10.1 Replacing Feed Draper
Replace draper if torn, cracked, or missing slats.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise header and reel to full height, stop the engine, and remove key from the ignition.
2. Engage reel safety props and header safety props.

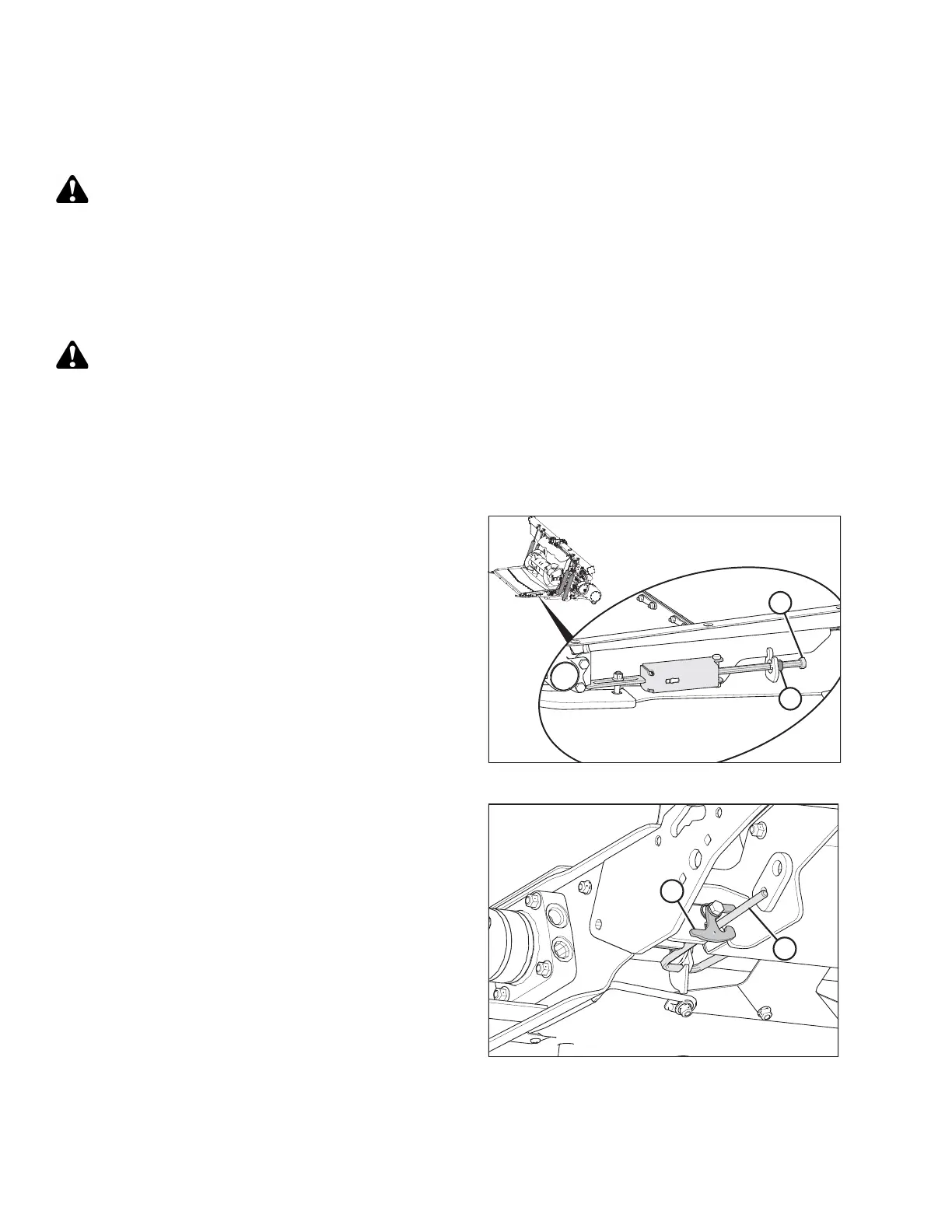

Figure 5.140: Feed Draper Tensioner
3. Loosen jam nut (A) and turn bolt (B) counterclockwise
to release the draper tension. Repeat at the
opposite side.
Figure 5.141: Feed Deck Pan Handle and Left
Side Pan Handle Latch
4. Unlatch the feed deck pan handle (A) from the pan
handle latch supports (B) on either side of the feed
deck. This will drop the door down and allow access to
feed deck draper and rollers.
NOTE:
Some parts removed from illustration for clarity.
MAINTENANCE AND SERVICING
