214683 467 Revision A

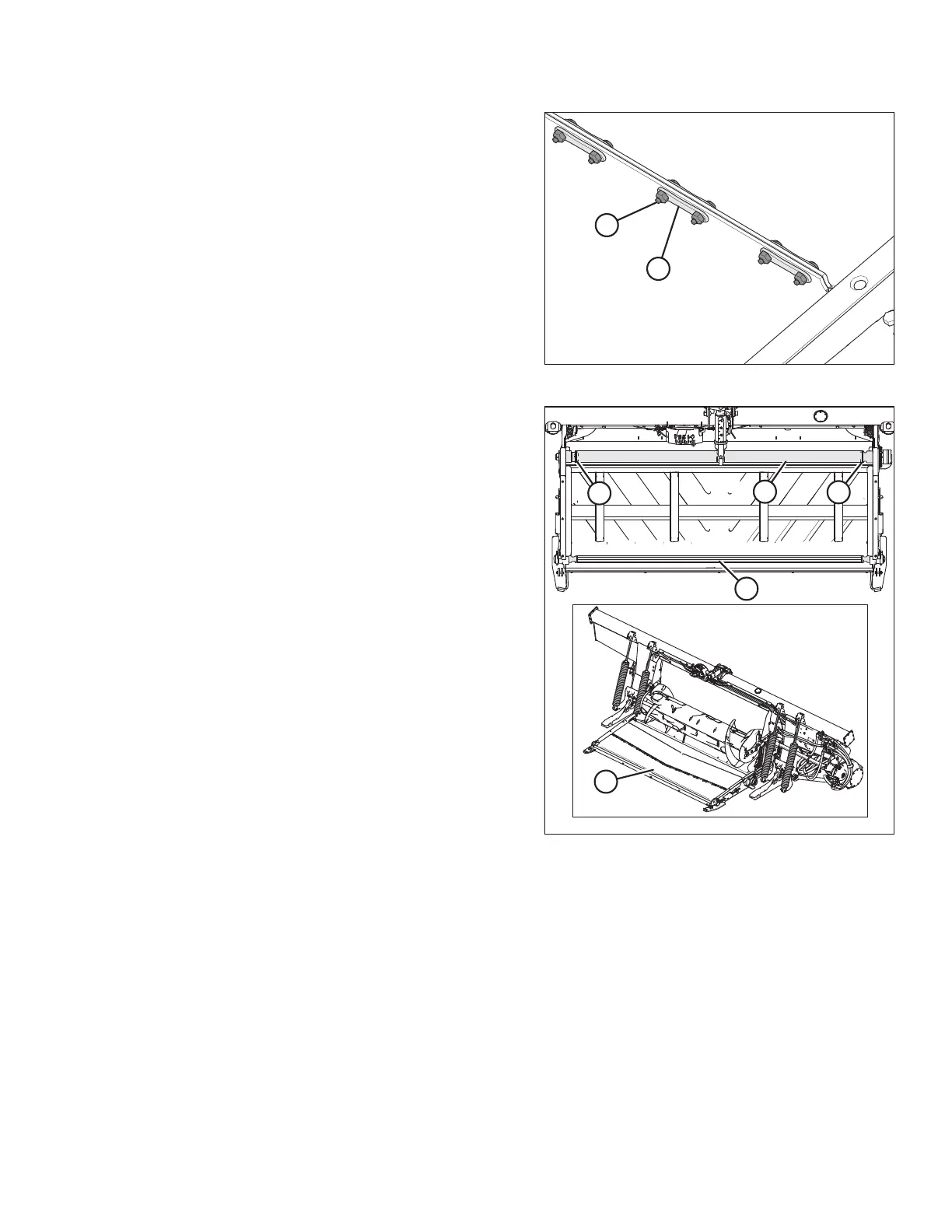

Figure 5.142: Draper Connector
5. Remove nuts and screws (A), and remove the draper
connector straps (B).
6. Pull the draper from the deck.
Figure 5.143: Float Module Feed Draper
7. Install new draper (A) over the drive roller (B). Make
sure the draper guides fit into the drive roller
grooves (C).
8. Pull draper along bottom of feed deck and over idler
roller (D).
MAINTENANCE AND SERVICING
