MacDon FlexDraper FD140 - Installing Stripper Bars; Replacing Feed Deflectors on New Holland CR Combines

214683 483 Revision A
5.13.2 Installing Stripper Bars
1017293
B
A

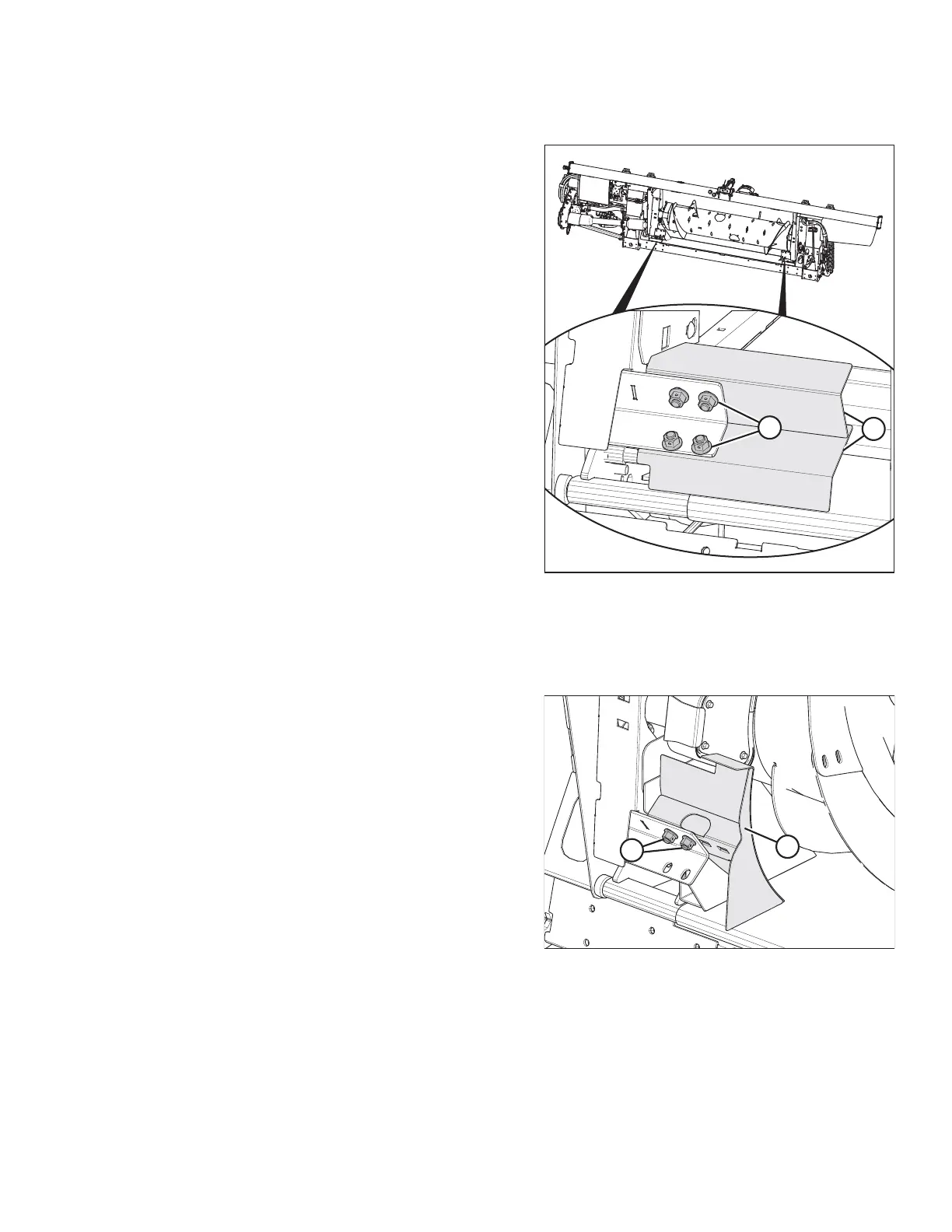

Figure 5.179: Stripper Bar
1. Detach the header from the combine. Refer to 4 Header
Attachment/Detachment, page 307.
2. Position the stripper bar (B) so the notch is at the corner
of the frame.
3. Secure the stripper bar (B) to the float module with four
bolts and nuts (A). Ensure the nuts are facing
the combine.
4. Repeat at the opposite side.
5.13.3 Replacing Feed Deflectors on New Holland CR Combines
1. Detach the header from the combine. Refer to 4 Header Attachment/Detachment, page 307.
1012703
B
A
Figure 5.180: Feed Deflector
2. Remove the two bolts and nuts (B) securing the feed
deflector (A) to the float module frame, and remove the
feed deflector.
3. Position the replacement feed deflector (A), and secure
with bolts and nuts (B) (ensure the nuts are facing the
combine). Do NOT tighten nuts.
MAINTENANCE AND SERVICING
