214683 377 Revision A

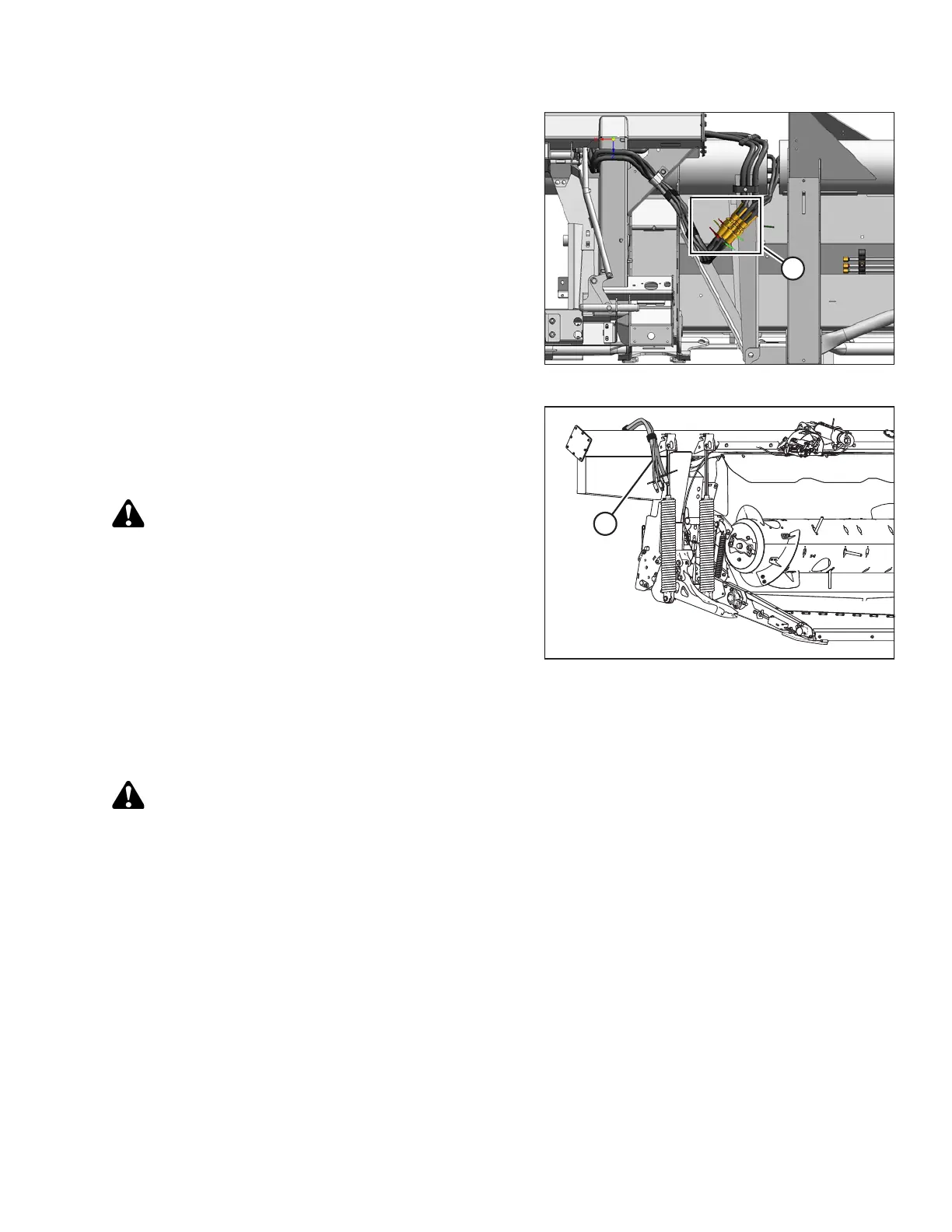

Figure 4.152: Reel Hydraulics
NOTE:
If colored plastic ties are missing, replace them before
disconnecting hoses.
26. Disconnect the reel hydraulics (A). Immediately cap
hoses to prevent oil loss.
Figure 4.153: Hose Storage
27. Store and secure the hoses and electrical connector on
the float module at position (A) as shown.
28. Ensure the header is on the ground or is supported by
the wheels in transport mode.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
29. Start the engine and slowly back away in a straight line
from header.
30. Stop the engine and remove the key from the ignition.
4.8.2 Attaching Header to Float Module
FD1 Series headers can be attached to the float module from either field or transport configuration.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
NOTE:
Stabilizer / slow speed transport wheels can be used to support the header. Refer to Adjusting Stabilizer / Slow
Speed Transport Wheels, page 59.
HEADER ATTACHMENT/DETACHMENT
