MacDon FlexDraper FD140 - Raising Float Module Feed Deck Pan

214683 481 Revision A
5.12 Raising Float Module Feed Deck Pan
1020551
A
B
C
C
C

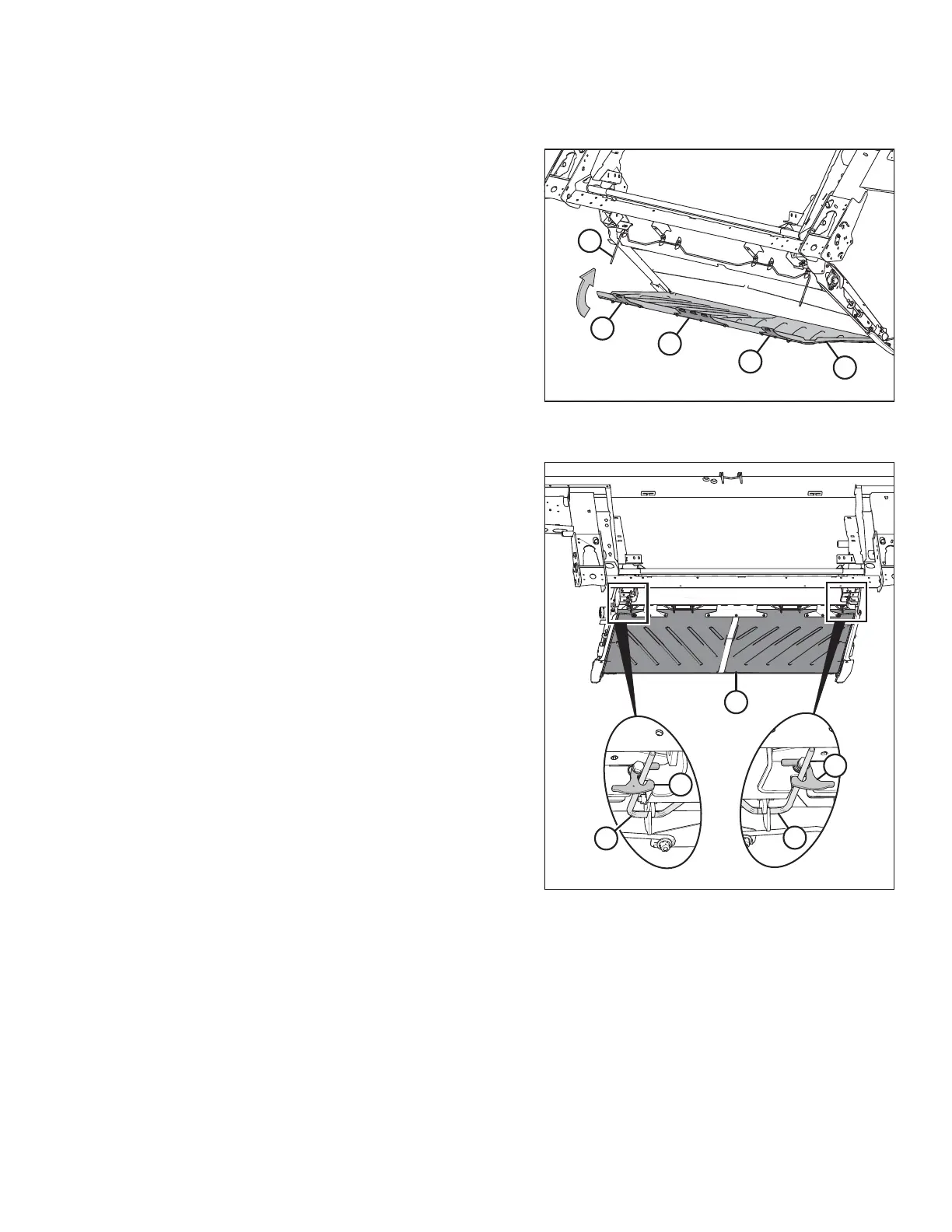

Figure 5.176: Underside of Feed Deck Pan
(Rear View)
1. Raise feed deck pan (A).
2. Engage lock handle (B) in feed deck pan hooks (C).
3. Rotate handles (B) upwards, bringing the feed deck
pan (A) into locking position.
NOTE:
Ensure that all three deck pan hooks (C) are secured on
the lock handle (B).
1020554
B
C
C
B
A
Figure 5.177: Feed Deck Pan (Rear View)
4. Hold feed deck pan (A) in place, and rotate latches (B)
to lock handle (C).
MAINTENANCE AND SERVICING
