MacDon FlexDraper FD140 - Case IH Combines; Attaching Header to Case IH Combine

214683 332 Revision A
4.3 Case IH Combines
4.3.1 Attaching Header to Case IH Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1001498
B
A

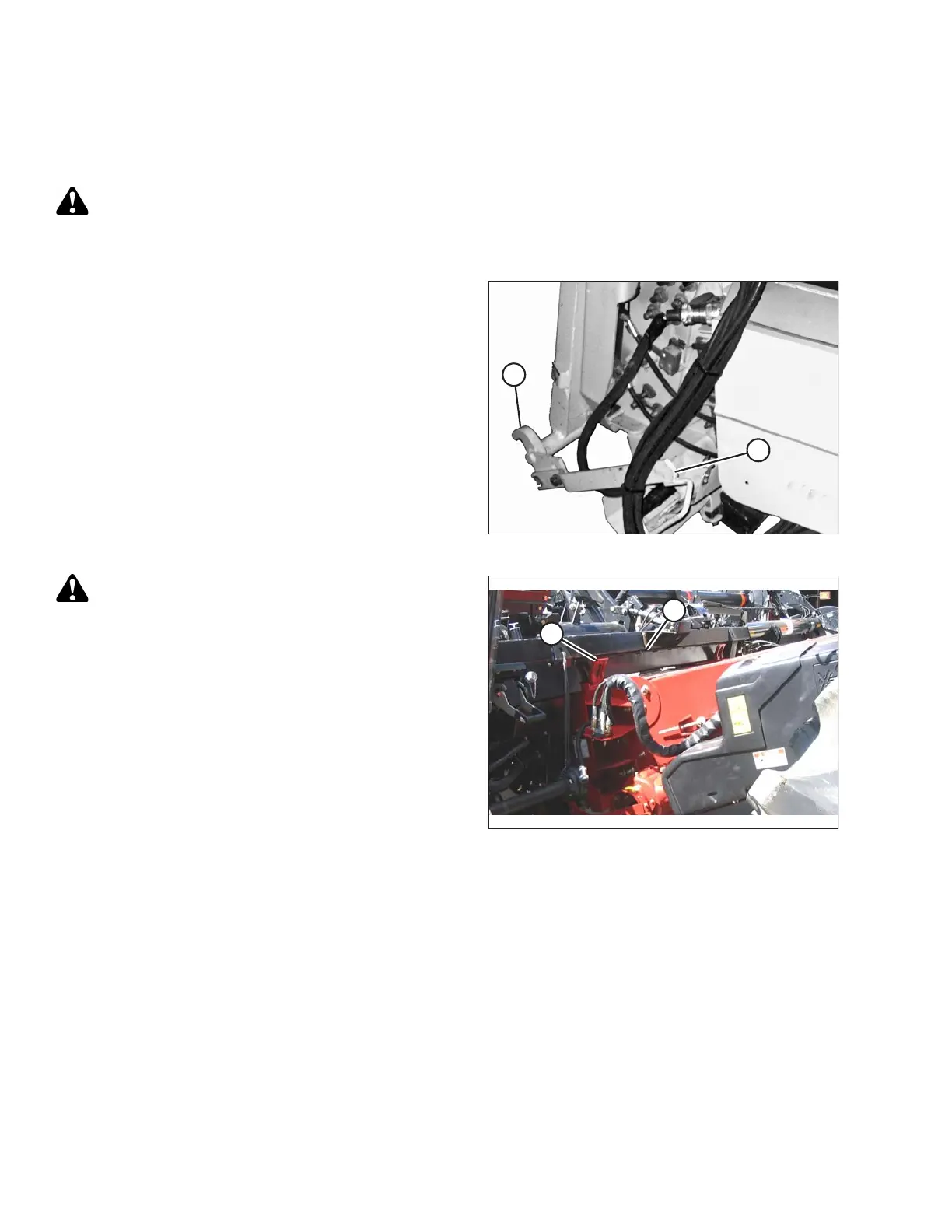

Figure 4.48: Feeder House Locks
1. On the combine, ensure the lock handle (A) is
positioned so the hooks (B) can engage the float
module.
1001444
A
B
Figure 4.49: Combine and Float Module
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start the engine and slowly drive the combine up to the
header until the feeder house saddle (A) is directly
under the float module top cross member (B).
3. Raise the feeder house slightly to lift the header,
ensuring the feeder saddle is properly engaged in the
float module frame.
4. Stop the engine and remove the key from the ignition.
HEADER ATTACHMENT/DETACHMENT
