MacDon FlexDraper FD140 - Installing Auger Drive Chain

214683 426 Revision A
1013214
A
B

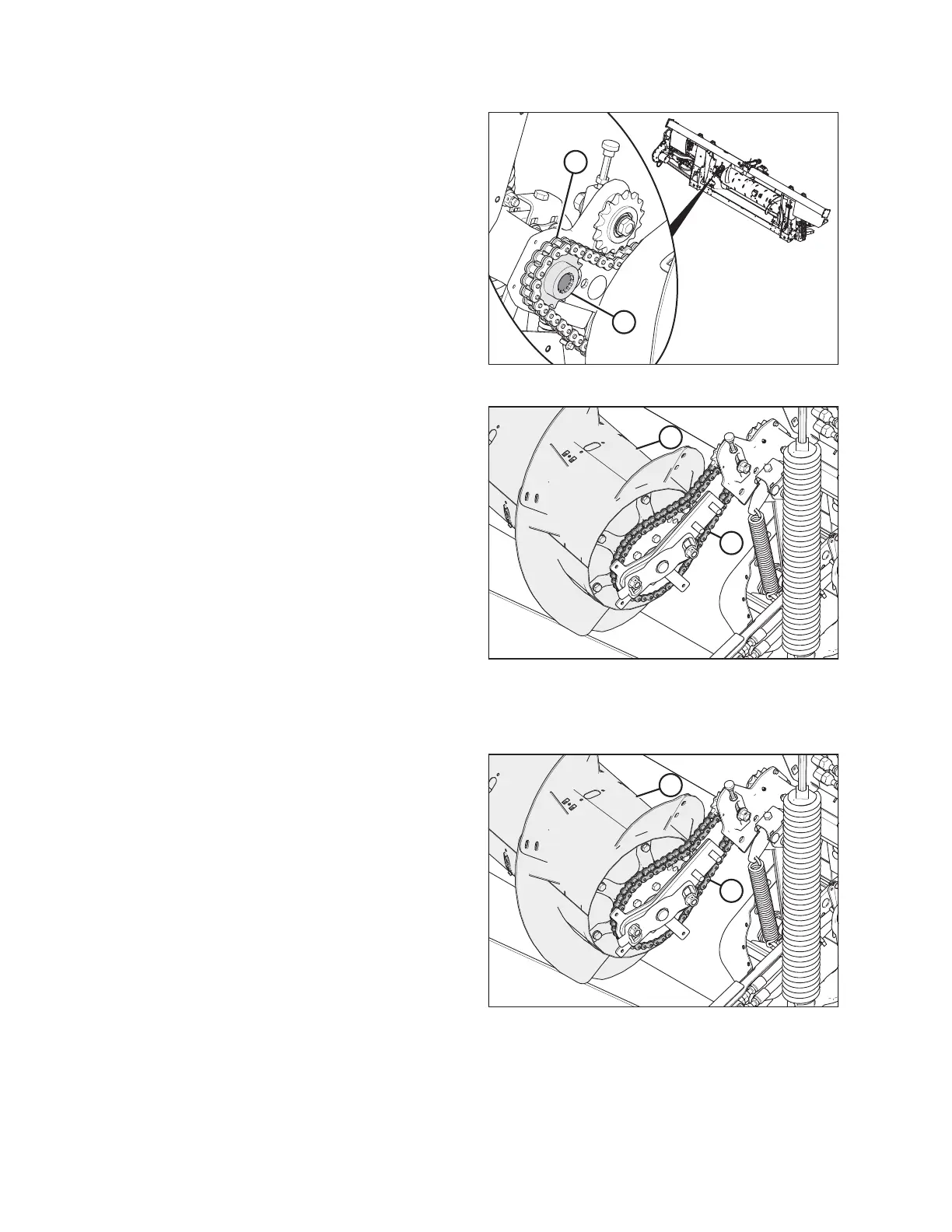

Figure 5.59: Auger Drive (Left Side)
14. Remove drive sprocket (A) and chain (B) from
spline shaft.
1017224
A
B
Figure 5.60: Auger Drive (Left Side)
15. Maneuver auger (A) sideways and forward so that
endless chain (B) can be removed from auger.
5.7.5 Installing Auger Drive Chain
1017224
A
B
Figure 5.61: Auger Drive (Left Side)
1. Place drive chain (B) over the sprocket on the drive side
of auger (A).
